BM-1 Series

Catalog

SWITCH SNAP ACTION N.O./N.C. SPDT ROLLER PLUNGER 22A 480VAC 745.7VA 2.78N PANEL MOUNT SCREW

Part	Operating Force (Min)	Operating Force (Max)	Current Rating	Operating Temperature (Min)	Operating Temperature (Max)	Actuator Type	Pretravel (Length)	Switch Function	Differential Travel (Linear)	Voltage Rating - AC	Termination Style	Overtravel (Linear)	Mechanical Life (Cycles)	Operating Position (Length)	Circuit	Release Force	Mounting Type	Operating Force
Honeywell Sensing and Productivity Solutions BM-1RQ18124-A2	198 gf	283 gf	22 A	-55 °C	121 °C	Cross Roller Plunger	0.012 in	On-Mom	0.001 in	125 V	Screw Terminal	0.141 in	20000000 Cycles	1.953 in	SPDT	113 gf	Chassis Mount
Honeywell Sensing and Productivity Solutions BM-1R			22 A	-55 °C	85 °C	Round (Pin Plunger)	0.015 in	On-Mom	0.001 in	125 V	Solder Lug	0.005 in	20000000 Cycles	0.625 in	SPDT	113 gf	Chassis Mount	198 gf
Honeywell Sensing and Productivity Solutions BM-1R369-A41	312 gf	482 gf	22 A	-55 °C	85 °C	Round (Pin Plunger)	0.015 in	On-Mom	0.001 in	125 V	Screw Terminal	0.005 in	20000000 Cycles	0.625 in	SPDT		Chassis Mount
Honeywell Sensing and Productivity Solutions BM-1R373	198 gf	283 gf	22 A	-55 °C	85 °C	Round (Pin Plunger)	0.015 in	On-Mom	0.001 in	125 V	Solder Lug	0.005 in	20000000 Cycles	0.625 in	SPDT	113 gf	Chassis Mount

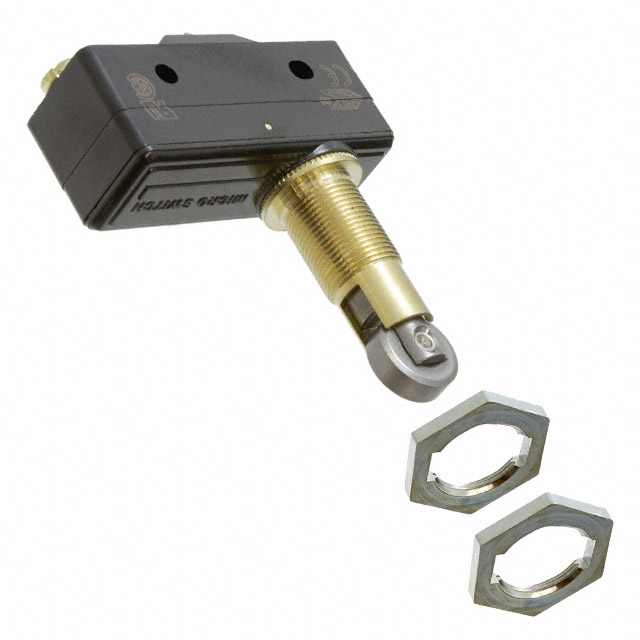

Honeywell Sensing and Productivity Solutions BM-1RQ18-A2	198 gf	283 gf	22 A	-55 °C	85 °C	Roller Plunger	0.015 in	On-Mom	0.001 in	125 V	Screw Terminal	0.141 in	20000000 Cycles	1.313 in	SPDT	113 gf	Chassis Mount
Honeywell Sensing and Productivity Solutions BM-1R-A4			22 A	-55 °C	85 °C	Round (Pin Plunger)	0.015 in	On-Mom	0.001 in	125 V	Screw Terminal	0.005 in	20000000 Cycles	0.625 in	SPDT	113 gf	Chassis Mount	198 gf
