485893 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HOUSING RCP 15 POS 2.54MM CRIMP ST CABLE MOUNT BLACK PACKAGE

Part	Insulation Diameter (Max)	Insulation Diameter (Min)	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Note	Housing Color	Current Rating	Locking Feature	Housing Material	Connector Type	FFC, FCB Thickness (Max)	FFC, FCB Thickness (Min)	Pitch	Material Flammability Rating	Voltage Rating	Flat Flex Type	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Number of Rows
TE Connectivity AMP Connectors 1-485893-3	0.056 in	0.025 in	22 AWG	32 AWG	Contacts Not Included	Black	1.5 A	Detent Lock	Thermoplastic	Housing for Male Contacts	0.13 mm	0.05 mm	0.1 in	UL94 V-0	300 VAC/DC	Discrete Wire FFC	15	105 °C	-65 °C	1
TE Connectivity AMP Connectors 485893-5	0.056 in	0.025 in	22 AWG	32 AWG	Contacts Not Included	Black	1.5 A	Detent Lock	Thermoplastic	Housing for Male Contacts	0.13 mm	0.05 mm	0.1 in	UL94 V-0	300 VAC/DC	Discrete Wire FFC	7	105 °C	-65 °C	1

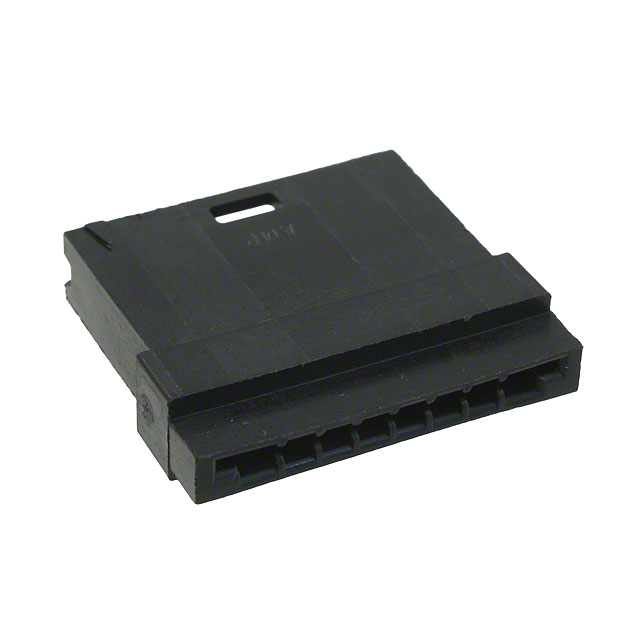

TE Connectivity AMP Connectors 485893-6	0.056 in	0.025 in	22 AWG	32 AWG	Contacts Not Included	Black	1.5 A	Detent Lock	Thermoplastic	Housing for Male Contacts	0.13 mm	0.05 mm	0.1 in	UL94 V-0	300 VAC/DC	Discrete Wire FFC	8	105 °C	-65 °C	1

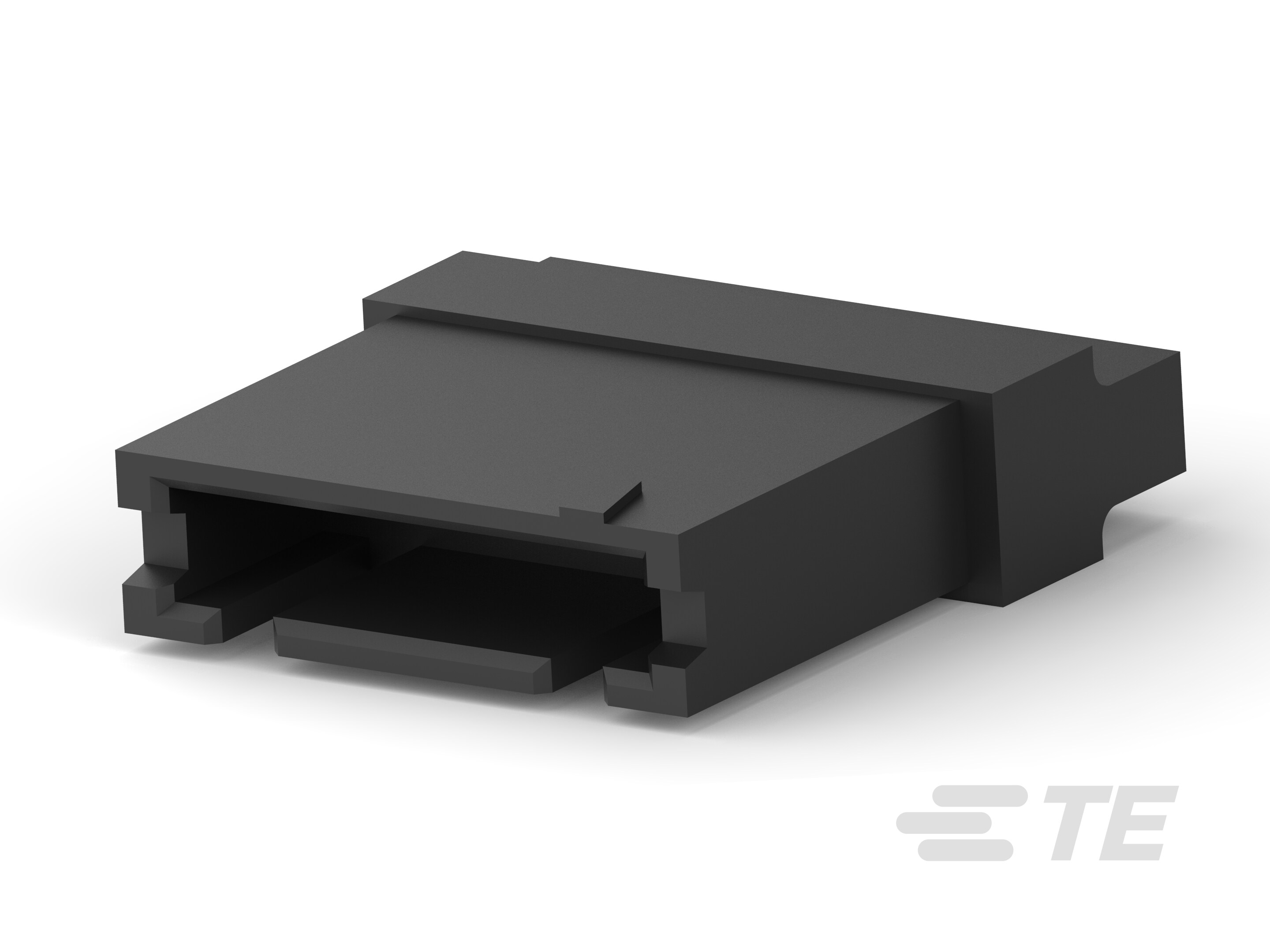

TE Connectivity AMP Connectors 485893-4	0.056 in	0.025 in	22 AWG	32 AWG	Contacts Not Included	Black	1.5 A	Detent Lock	Thermoplastic	Housing for Male Contacts	0.13 mm	0.05 mm	0.1 in	UL94 V-0	300 VAC/DC	Discrete Wire FFC	6	105 °C	-65 °C	1

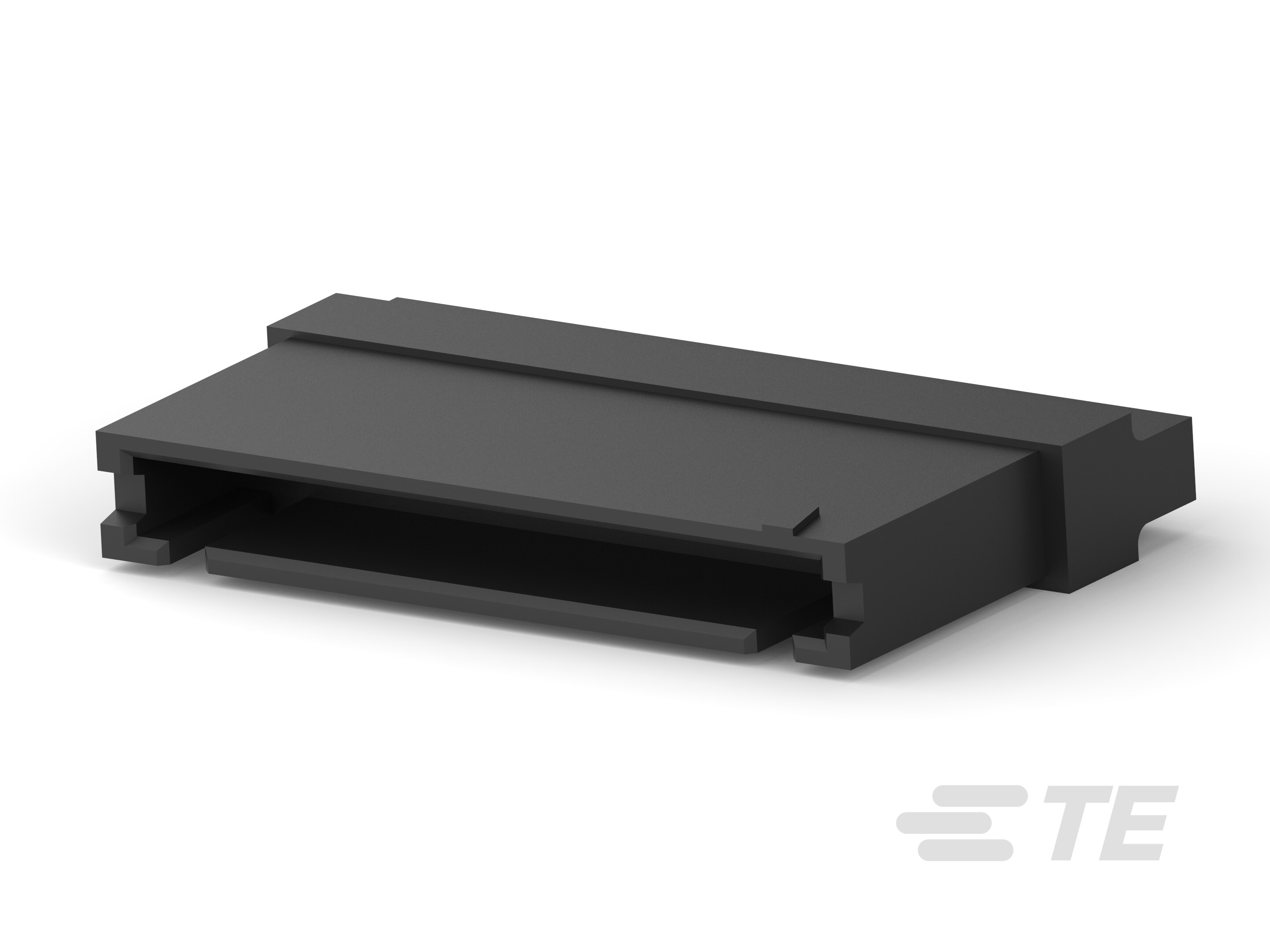

TE Connectivity AMP Connectors 1-485893-1	0.056 in	0.025 in	22 AWG	32 AWG	Contacts Not Included	Black	1.5 A	Detent Lock	Thermoplastic	Housing for Male Contacts	0.13 mm	0.05 mm	0.1 in	UL94 V-0	300 VAC/DC	Discrete Wire FFC	13	105 °C	-65 °C	1
TE Connectivity AMP Connectors 485893-7	0.056 in	0.025 in	22 AWG	32 AWG	Contacts Not Included	Black	1.5 A	Detent Lock	Thermoplastic	Housing for Male Contacts	0.13 mm	0.05 mm	0.1 in	UL94 V-0	300 VAC/DC	Discrete Wire FFC	9	105 °C	-65 °C	1

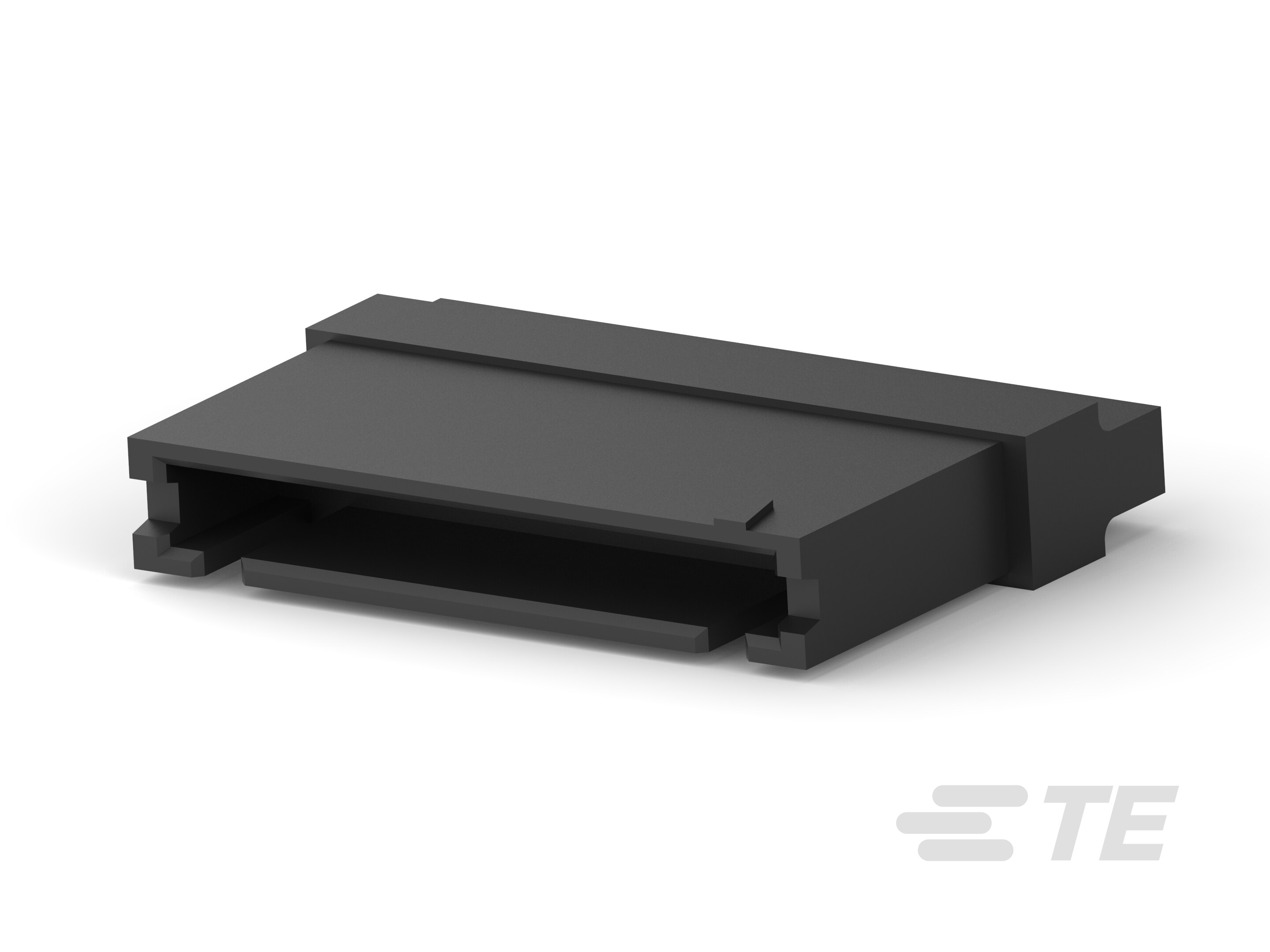

TE Connectivity AMP Connectors 485893-9	0.056 in	0.025 in	22 AWG	32 AWG	Contacts Not Included	Black	1.5 A	Detent Lock	Thermoplastic	Housing for Male Contacts	0.13 mm	0.05 mm	0.1 in	UL94 V-0	300 VAC/DC	Discrete Wire FFC	11	105 °C	-65 °C	1

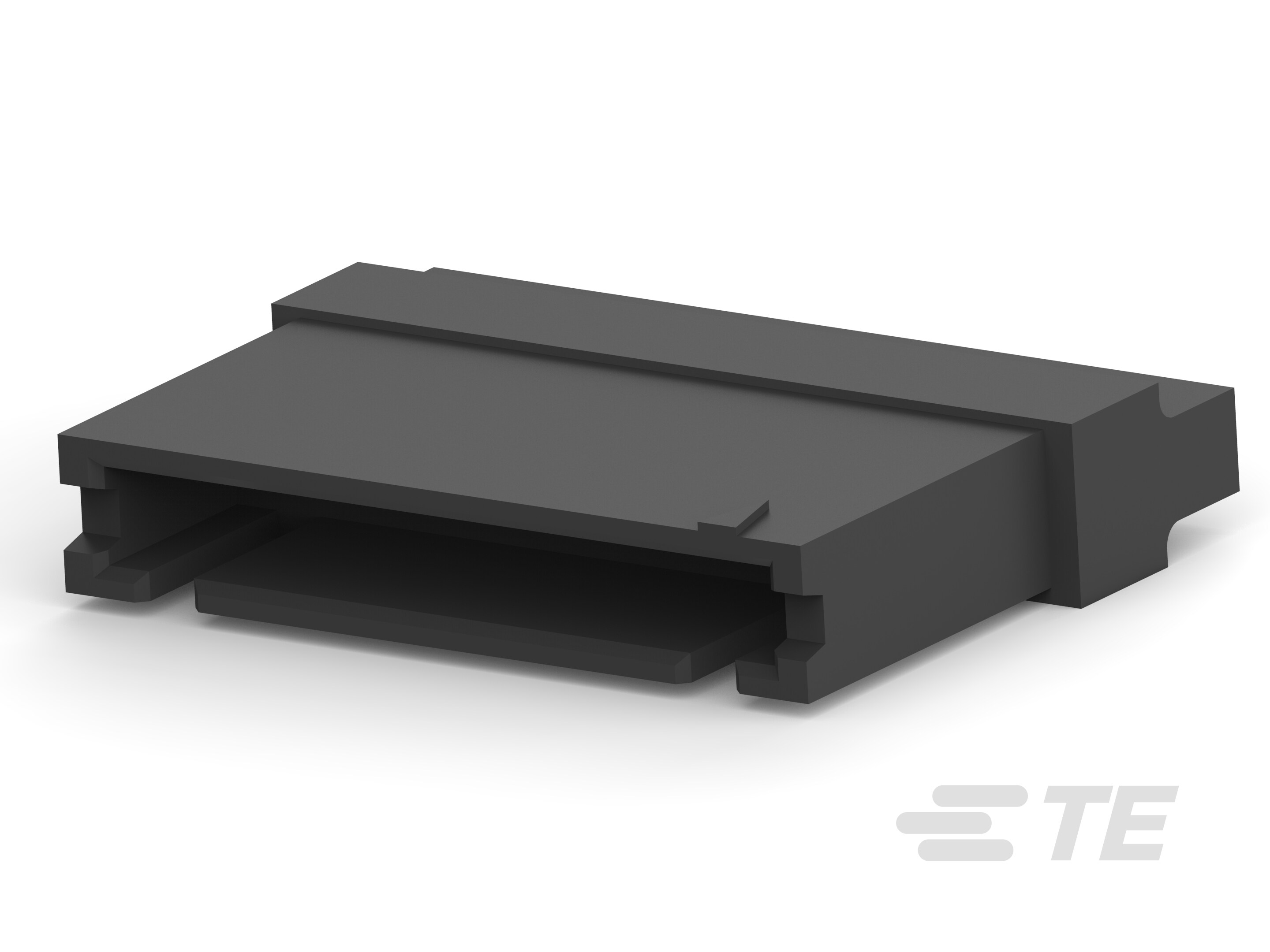

TE Connectivity AMP Connectors 485893-8	0.056 in	0.025 in	22 AWG	32 AWG	Contacts Not Included	Black	1.5 A	Detent Lock	Thermoplastic	Housing for Male Contacts	0.13 mm	0.05 mm	0.1 in	UL94 V-0	300 VAC/DC	Discrete Wire FFC	10	105 °C	-65 °C	1

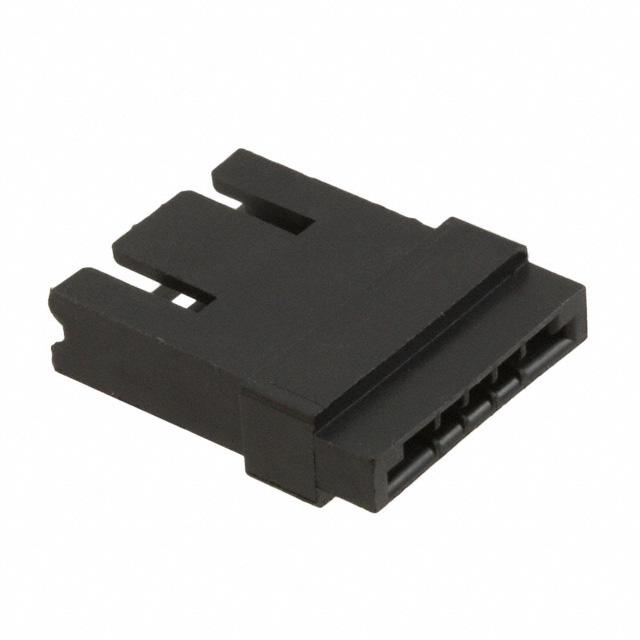

TE Connectivity AMP Connectors 485893-3	0.056 in	0.025 in	22 AWG	32 AWG	Contacts Not Included	Black	1.5 A	Detent Lock	Thermoplastic	Housing for Male Contacts	0.13 mm	0.05 mm	0.1 in	UL94 V-0	300 VAC/DC	Discrete Wire FFC	5	105 °C	-65 °C	1

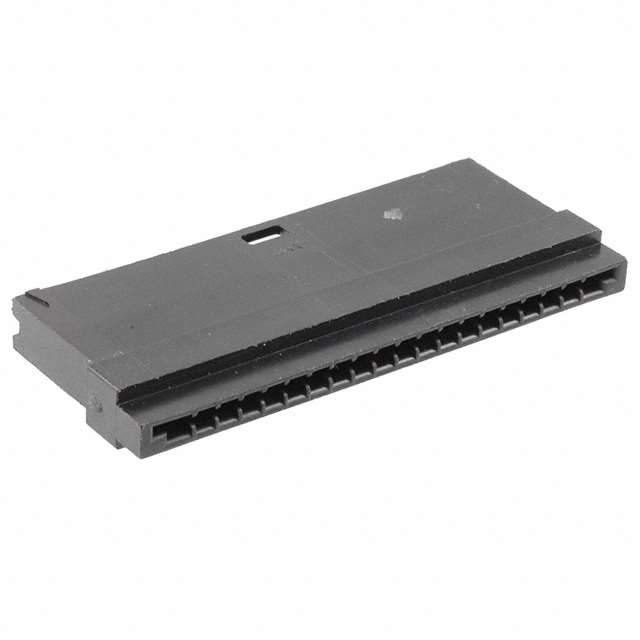

TE Connectivity AMP Connectors 1-485893-8	0.056 in	0.025 in	22 AWG	32 AWG	Contacts Not Included	Black	1.5 A	Detent Lock	Thermoplastic	Housing for Male Contacts	0.13 mm	0.05 mm	0.1 in	UL94 V-0	300 VAC/DC	Discrete Wire FFC	20	105 °C	-65 °C	1
