ISL3034E Series

Catalog

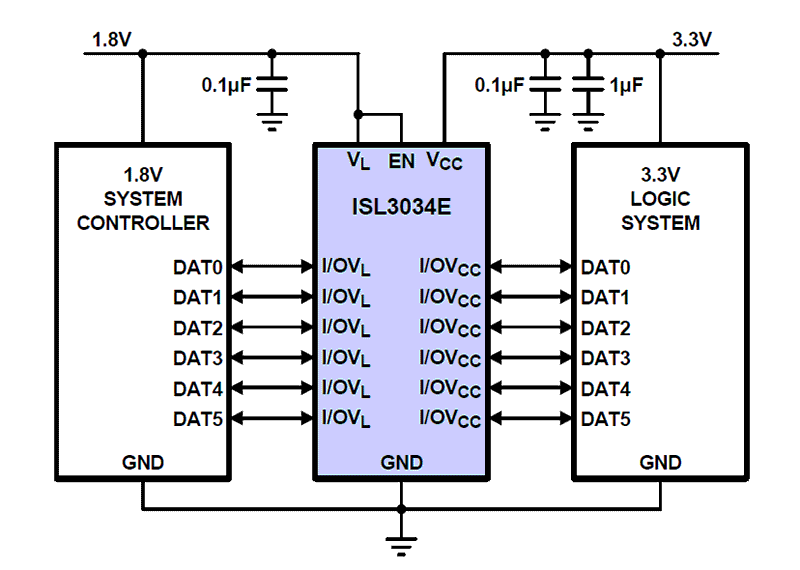

4-CHANNEL AND 6-CHANNEL HIGH SPEED, AUTO-DIRECTION SENSING LOGIC LEVEL TRANSLATORS

Part	Data Rate	Voltage - VCCB (Max)	Voltage - VCCB (Min)	Translator Type	Channel Type	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Package Width	Package Name	Package Length	Voltage - VCCA (Max)	Voltage - VCCA (Min)	Output Type	Number of Circuits	Channels per Circuit	Features	Package / Case
Renesas Electronics Corporation ISL3034EIRTZ-T	100 Mbps	3.6 V	2.2 V	Voltage Level	Bidirectional	85 °C	-40 °C	Surface Mount	3 mm	16-TQFN	3 mm	3.2 V	1.35 V	Open Drain Push-Pull	1	6	Auto-Direction Sensing	16-WFQFN Exposed Pad
Renesas Electronics Corporation ISL3034EIRUZ-T	100 Mbps	3.6 V	2.2 V	Voltage Level	Bidirectional	85 °C	-40 °C	Surface Mount	1.8 mm	16-UTQFN	2.6 mm	3.2 V	1.35 V	Open Drain Push-Pull	1	6	Auto-Direction Sensing	16-UFQFN
Renesas Electronics Corporation ISL3034EIRTZ	100 Mbps	3.6 V	2.2 V	Voltage Level	Bidirectional	85 °C	-40 °C	Surface Mount	3 mm	16-TQFN	3 mm	3.2 V	1.35 V	Open Drain Push-Pull	1	6	Auto-Direction Sensing	16-WFQFN Exposed Pad
