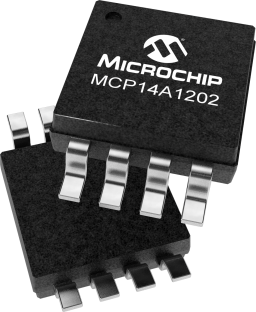

MCP14A1202 Series

Catalog

12.0A SINGLE NON-INVERTING MOSFET DRIVER, LOW THRESHOLD WITH ENABLE PIN, MSOP8 8 MSOP 3X3MM TUBE ROHS COMPLIANT: YES

Part	Gate Type	Package Name	Mounting Type	Logic Voltage - VIH	Logic Voltage - VIL	Channel Type	Gate Channel	Input Type	Current - Peak Output (Source)	Current - Peak Output (Sink)	Package Width	Package Length	Fall Time (Typ)	Rise Time (Typ)	Driven Configuration	Number of Drivers	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Qualification	Grade
Microchip Technology MCP14A1202-E/MS	IGBT MOSFET N-Channel P-Channel MOSFET	8-MSOP 8-TSSOP 8-MSOP	Surface Mount	2 V	0.8 V	Single	N-Channel P-Channel	Non-Inverting	12 A	12 A	3 mm	0.118 in	25 ns	25 ns	Low-Side	1	18 V	4.5 V	125 °C	-40 °C
Microchip Technology MCP14A1202T-E/SN	IGBT MOSFET N-Channel P-Channel MOSFET	8-SOIC	Surface Mount	2 V	0.8 V	Single	N-Channel P-Channel	Non-Inverting	12 A	12 A	3.9 mm	0.154 in	25 ns	25 ns	Low-Side	1	18 V	4.5 V	125 °C	-40 °C
Microchip Technology MCP14A1202T-E/MNYVAO	IGBT MOSFET N-Channel P-Channel MOSFET	8-TDFN	Surface Mount	2 V	0.8 V	Single	N-Channel P-Channel	Non-Inverting	12 A	12 A	3 mm	2 mm	25 ns	25 ns	Low-Side	1	18 V	4.5 V	125 °C	-40 °C	8-WFDFN Exposed Pad	AEC-Q100	Automotive
Microchip Technology MCP14A1202-E/SN	IGBT MOSFET N-Channel P-Channel MOSFET	8-SOIC	Surface Mount	2 V	0.8 V	Single	N-Channel P-Channel	Non-Inverting	12 A	12 A	3.9 mm	0.154 in	25 ns	25 ns	Low-Side	1	18 V	4.5 V	125 °C	-40 °C
Microchip Technology MCP14A1202T-E/SNVAO	IGBT MOSFET N-Channel P-Channel MOSFET	8-SOIC	Surface Mount	2 V	0.8 V	Synchronous	N-Channel P-Channel	Non-Inverting			3.9 mm	0.154 in	25 ns	25 ns	Low-Side	1	18 V	4.5 V	125 °C	-40 °C		AEC-Q100	Automotive
Microchip Technology MCP14A1202T-E/MS	IGBT MOSFET N-Channel P-Channel MOSFET	8-MSOP 8-TSSOP 8-MSOP	Surface Mount	2 V	0.8 V	Single	N-Channel P-Channel	Non-Inverting	12 A	12 A	3 mm	0.118 in	25 ns	25 ns	Low-Side	1	18 V	4.5 V	125 °C	-40 °C
Microchip Technology MCP14A1202T-E/MSVAO	IGBT MOSFET N-Channel P-Channel MOSFET	8-MSOP 8-TSSOP 8-MSOP	Surface Mount	2 V	0.8 V	Single	N-Channel P-Channel	Non-Inverting	12 A	12 A	3 mm	0.118 in	25 ns	25 ns	Low-Side	1	18 V	4.5 V	125 °C	-40 °C		AEC-Q100	Automotive
Microchip Technology MCP14A1202T-E/MNY	IGBT MOSFET N-Channel P-Channel MOSFET	8-TDFN	Surface Mount	2 V	0.8 V	Single	N-Channel P-Channel	Non-Inverting	12 A	12 A	3 mm	2 mm	25 ns	25 ns	Low-Side	1	18 V	4.5 V	125 °C	-40 °C	8-WFDFN Exposed Pad
