MAX20097 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
DUAL-CHANNEL SYNCHRONOUS BUCK, HIGH-BRIGHTNESS LED CONTROLLER WITH AND WITHOUT SPI INTERFACE
| Part | Internal Switch(s) | Package Name | Voltage - Output (Max) | Voltage - Output (Min) | Package Width | Package Features | Package Length | Mounting Type | Applications | Operating Temperature (Max) | Operating Temperature (Min) | Type | Voltage - Supply (Max) | Voltage - Supply (Min) | Topology | Dimming | Frequency | Number of Outputs | Grade | Features | Voltage - Input (Maximum) | Voltage - Input (Minimum) | Contents | Utilized IC / Part | Non-Isolated Output Count | Output Type | Total Output Count | Qualification | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | No | 28-TSSOP 28-TSSOP-EP | 5.125 V | 4.875 V | 4.4 mm | Exposed Pad | 0.173 in | Surface Mount | Commercial & Industrial Lighting | 125 °C | -40 °C | DC DC Controller | 65 V | 4.5 V | Step-Down (Buck) | Analog PWM | 1 MHz | 2 | Automotive | ||||||||||

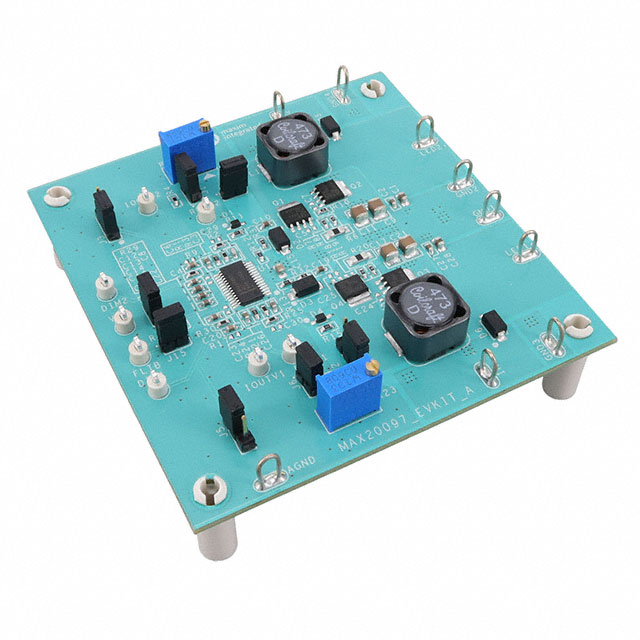

 Analog Devices Inc./Maxim Integrated | Dimmable | 65 V | 4.5 V | Board | MAX20097 | 2 count | Non-Isolated | 2 | |||||||||||||||||||||
 Analog Devices Inc./Maxim Integrated | No | 32-TQFN-EP | 5.125 V | 4.875 V | 5 mm | 5 mm | Surface Mount Wettable Flank | Commercial & Industrial Lighting | 125 °C | -40 °C | DC DC Controller | 65 V | 4.5 V | Step-Down (Buck) | Analog PWM | 1 MHz | 2 | Automotive | AEC-Q100 | 32-WFQFN Exposed Pad | |||||||||
Analog Devices Inc./Maxim Integrated | No | 28-TSSOP 28-TSSOP-EP | 5.125 V | 4.875 V | 4.4 mm | Exposed Pad | 0.173 in | Surface Mount | Commercial & Industrial Lighting | 125 °C | -40 °C | DC DC Controller | 65 V | 4.5 V | Step-Down (Buck) | Analog PWM | 1 MHz | 2 | Automotive | ||||||||||
Analog Devices Inc./Maxim Integrated | No | 32-TQFN-EP | 5.125 V | 4.875 V | 5 mm | 5 mm | Surface Mount Wettable Flank | Commercial & Industrial Lighting | 125 °C | -40 °C | DC DC Controller | 65 V | 4.5 V | Step-Down (Buck) | Analog PWM | 1 MHz | 2 | Automotive | AEC-Q100 | 32-WFQFN Exposed Pad |
