Ksc20Dct0 Series Series

Dual Circuit Technology Tactile Switch for SMT

Catalog

Dual Circuit Technology Tactile Switch for SMT

Part	Mounting Type	Actuator Type	Contact Rating (Current)	Ingress Protection Description	Ingress Protection IP Rating	Operating Temperature (Min)	Operating Temperature (Max)	Switch Function	Actuator Height off PCB (Vertical)	Circuit	Operating Force	Actuator Orientation	Termination Style	Illumination	Outline Length	Outline Width
LITTELFUSE KSC241J DCT LFS	Surface Mount	Standard	0.05 A	Dust Tight Waterproof	IP67	-40 °C	85 °C	Off-Mom	3.5 mm	SPDT-NC/NO	350 gf	Top Actuated	J Lead	Non-Illuminated	6.2 mm	6.2 mm

Catalog

Dual Circuit Technology Tactile Switch for SMT

Description

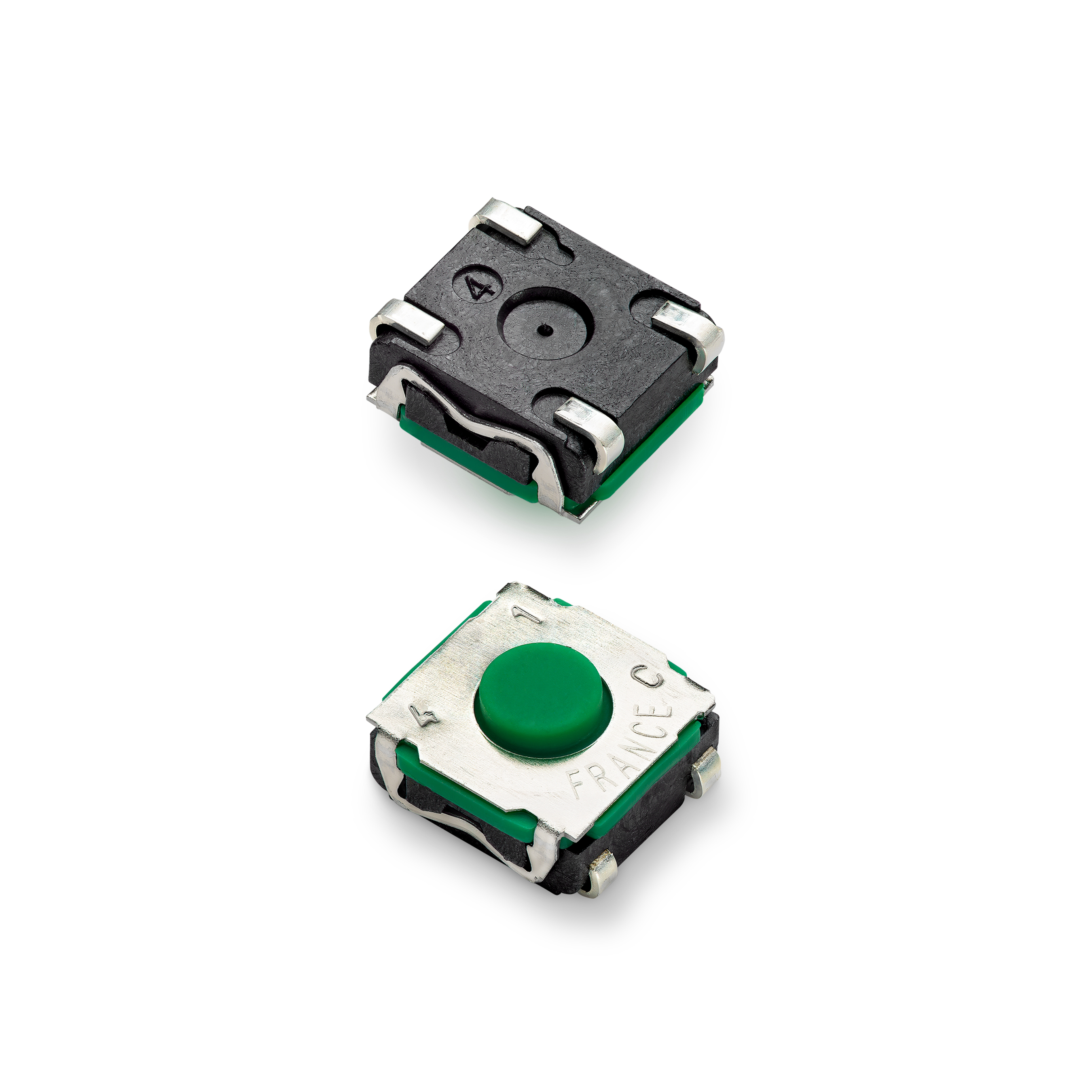

The KSC2 DCT series of sealed tactile switches for SMT are IP67 rated, 3.5mm high momentary action tactile switches, featuring a soft actuator. The switches have an operating force of 4.75N +/-1.25N and a lifespan of 300K cycles. The KSC2 series is designed to give users a positive tactile feeling.
