747842 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

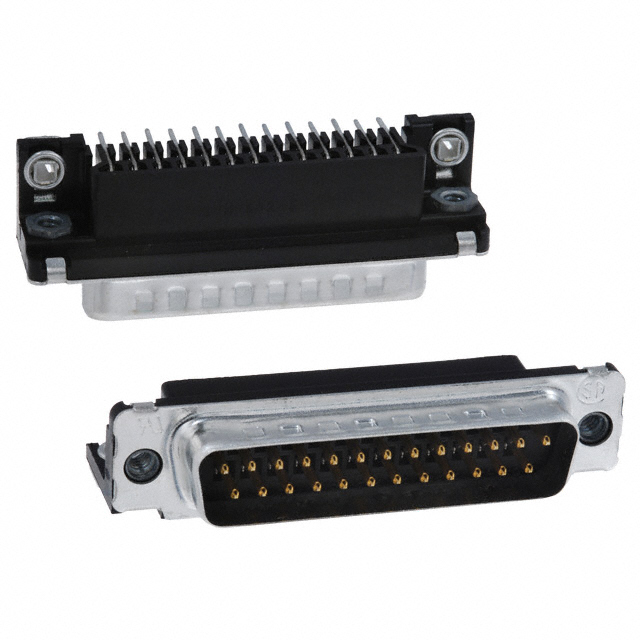

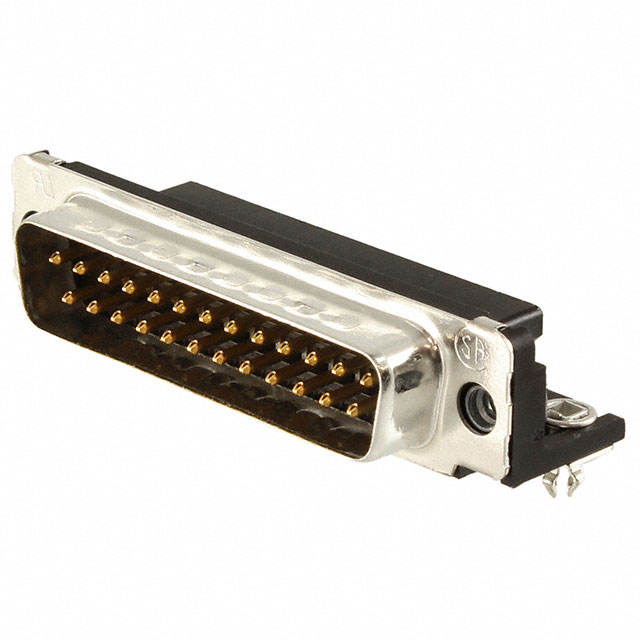

CONNECTOR,D-SHELL,PCB MNT,RECEPT,25 CONTACTS,PIN,0.109 PITCH,PC TAIL TERMINAL,#4-40
| Part | Flange Feature | Contact Type | Contact Finish | Number of Rows | Voltage Rating | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Mounting Type | Backset Spacing | Backset Spacing | Color | Connector Style | Features | Contact Finish Thickness | Termination | Connector Type | Material Flammability Rating | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Housing/Shell (4-40) | Signal | Gold | 2 | 125 VDC | 6 A | 105 ░C | -55 °C | Brass | Through Hole Right Angle | 8.08 mm | 0.318 " | Black | D-Sub | Board Lock Ground Strap Grounding Indents | Flash | Solder | Male Pins Plug | UL94 V-0 | B DB | 3 |
 TE Connectivity Raychem Cable Protection | Female Screwlock (4-40) Mating Side | Signal | Gold | 2 | 125 VDC | 6 A | 105 ░C | -55 °C | Brass | Through Hole Right Angle | 8.08 mm | 0.318 " | Black | D-Sub | Board Lock Ground Strap Grounding Indents | Flash | Solder | Male Pins Plug | UL94 V-0 | B DB | 3 |
 TE Connectivity Raychem Cable Protection | Housing/Shell (4-40) | Signal | Gold | 2 | 125 VDC | 6 A | 105 ░C | -55 °C | Brass | Through Hole Right Angle | 8.08 mm | 0.318 " | Black | D-Sub | Board Lock Ground Strap Grounding Indents | Solder | Male Pins Plug | UL94 V-0 | B DB | 3 |
