015136 Series

Manufacturer: Molex

Catalog

MICROCLASP 2 CIRCUIT 150MM

Part	Number of Positions	Pitch - Connector	Features	Length	Contact Finish Thickness	Number of Rows	Cable Termination	Connector Type	Color	Contact Finish	Shielding

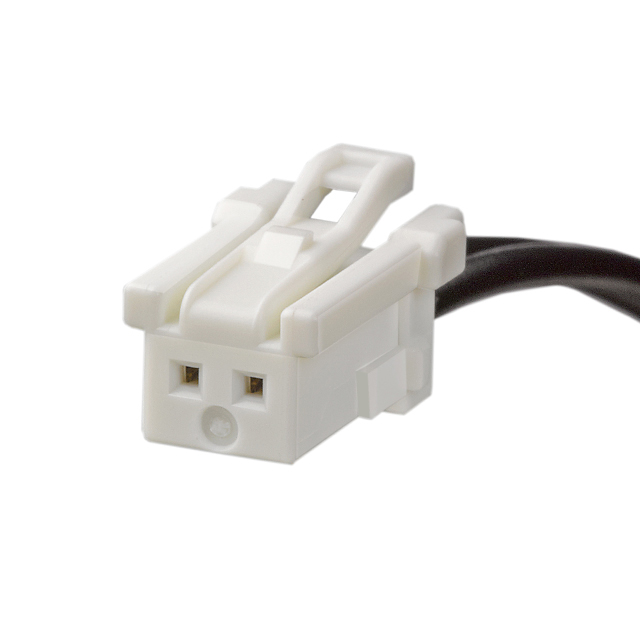

Molex 0151360202	2	0.079 in	Latch Lock	0.492 ft	35.4 µin	1	Crimp	Socket to Socket	Black Individual	Tin	Unshielded
Molex 0151360301	3	0.079 in	Latch Lock	0.328 ft	35.4 µin	1	Crimp	Socket to Socket	Black Individual	Tin	Unshielded

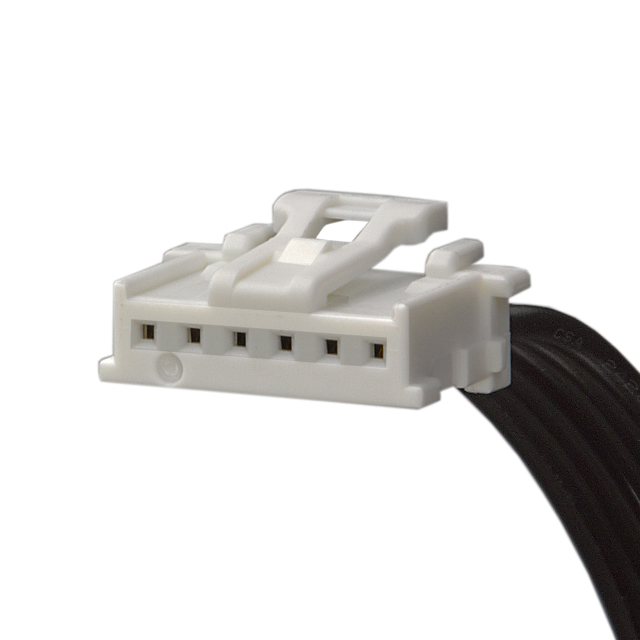

Molex 0151360601	6	0.079 in	Latch Lock	0.328 ft	35.4 µin	1	Crimp	Socket to Socket	Black Individual	Tin	Unshielded
Molex 0151360503	5	0.079 in	Latch Lock	0.984 ft	35.4 µin	1	Crimp	Socket to Socket	Black Individual	Tin	Unshielded
Molex 0151360306	3	0.079 in	Latch Lock	1.97 ft	35.4 µin	1	Crimp	Socket to Socket	Black Individual	Tin	Unshielded

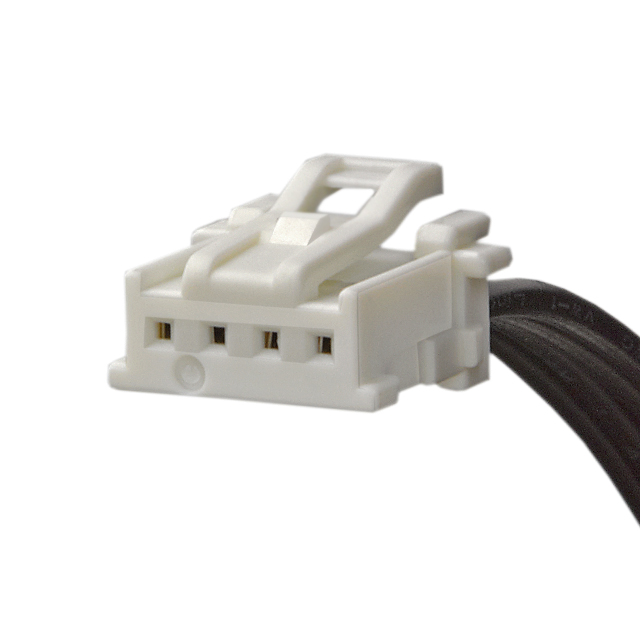

Molex 0151360406	4	0.079 in	Latch Lock	1.97 ft	35.4 µin	1	Crimp	Socket to Socket	Black Individual	Tin	Unshielded
Molex 0151360206	2	0.079 in	Latch Lock	1.97 ft	35.4 µin	1	Crimp	Socket to Socket	Black Individual	Tin	Unshielded
Molex 0151360300	3	0.079 in	Latch Lock	1.968 in	35.4 µin	1	Crimp	Socket to Socket	Black Individual	Tin	Unshielded

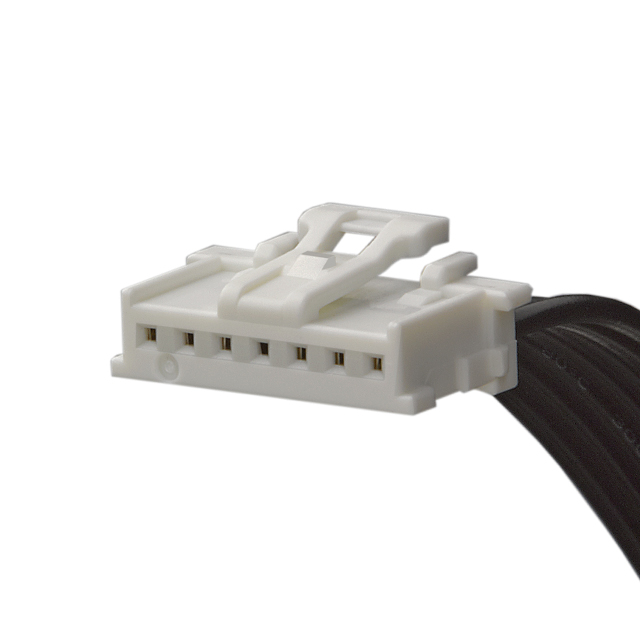

Molex 0151360706	7	0.079 in	Latch Lock	1.97 ft	35.4 µin	1	Crimp	Socket to Socket	Black Individual	Tin	Unshielded
Molex 0151360802	8	0.079 in	Latch Lock	0.492 ft	35.4 µin	1		Socket to Socket	Black Individual	Tin	Unshielded
