282822 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
TERM BLOCK HDR 9POS VERT 5MM
| Part | Number of Levels | Current - UL | Positions Per Level | Header Orientation | Voltage - UL | Number of Positions | Pitch | Color | Mounting Type | Termination Style | Type | Operating Temperature (Min) | Operating Temperature (Max) | Contact Mating Finish | Contact Tail Length | Insulation Height | Housing Material | Material Flammability Rating | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1 | 15 A | 9 | Vertical | 300 V | 9 | 0.197 in | Green | Through Hole | Solder | Header Male Pins Shrouded (2 Side) | -40 °C | 110 °C | Tin | 0.138 in | 0.472 in | Nylon 6/6 PA66 Polyamide | UL94 V-0 | Copper Alloy |

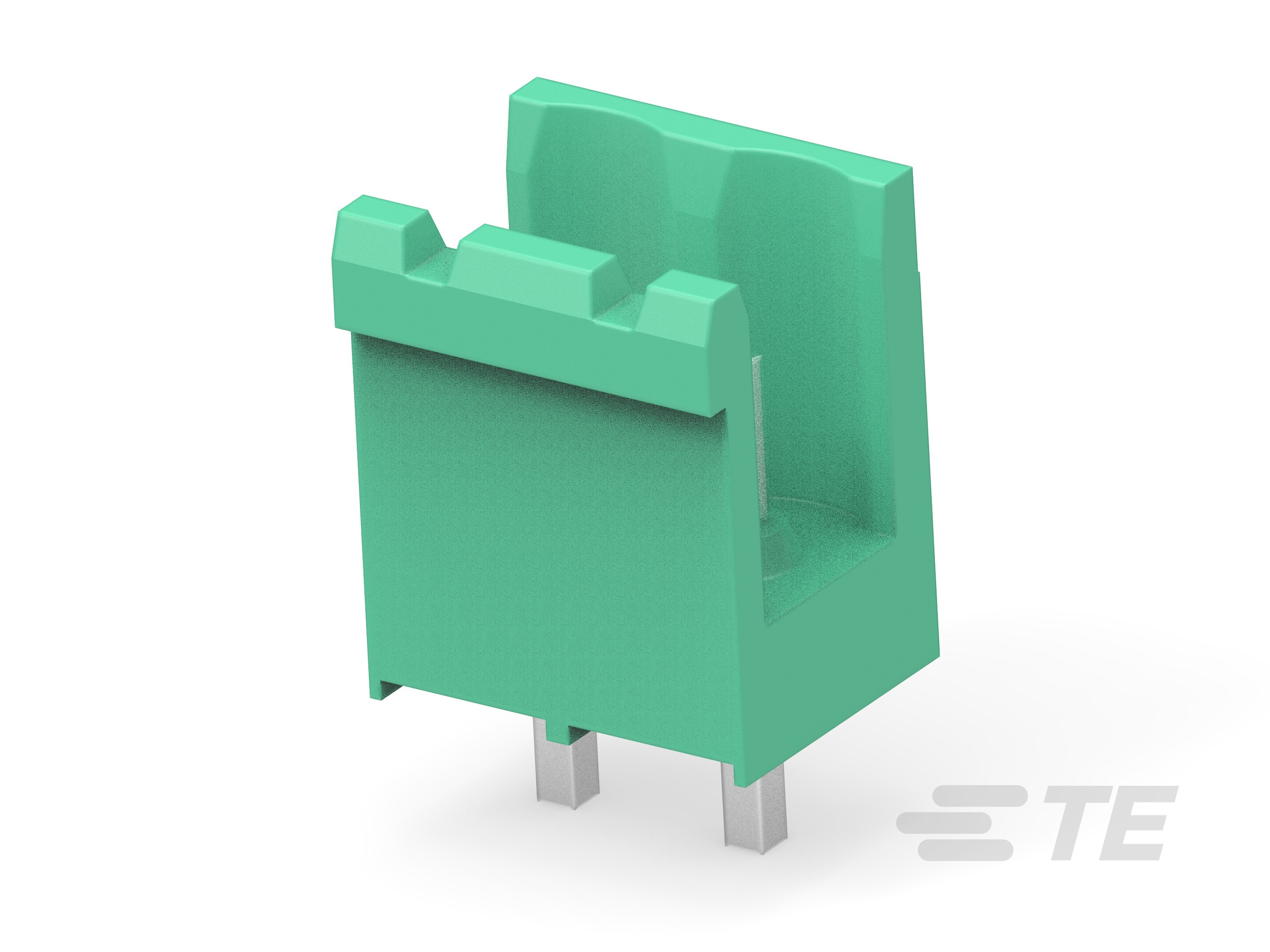

 TE Connectivity AMP Connectors | 1 | 15 A | 2 | Vertical | 300 V | 2 | 0.197 in | Green | Through Hole | Solder | Header Male Pins Shrouded (2 Side) | -40 °C | 110 °C | Tin | 0.138 in | 0.472 in | Nylon 6/6 PA66 Polyamide | UL94 V-0 | Copper Alloy |
TE Connectivity AMP Connectors | 1 | 15 A | 15 | Vertical | 300 V | 15 | 0.197 in | Green | Through Hole | Solder | Header Male Pins Shrouded (2 Side) | -40 °C | 110 °C | Tin | 0.138 in | 0.472 in | Nylon 6/6 PA66 Polyamide | UL94 V-0 | Copper Alloy |

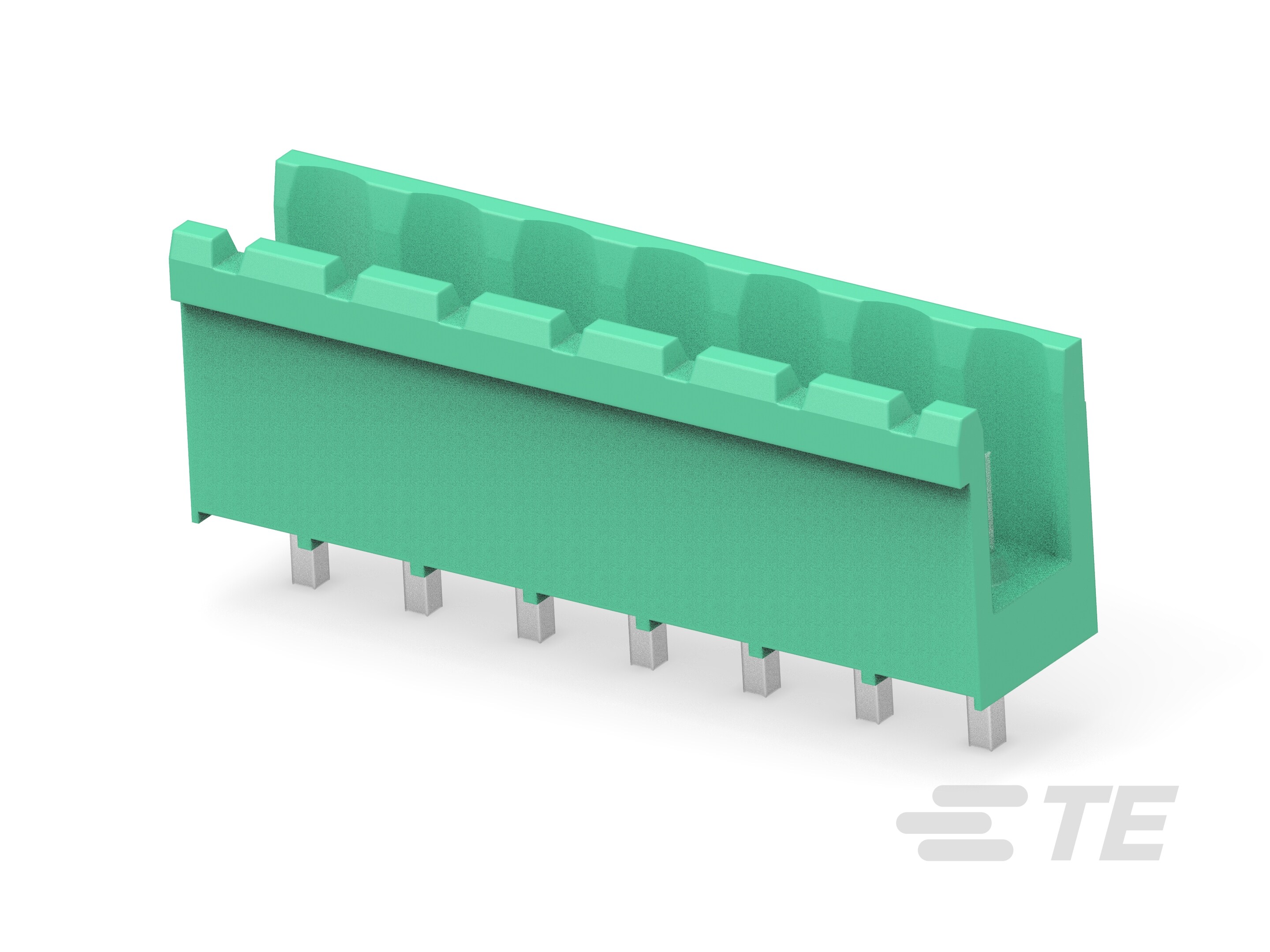

 TE Connectivity AMP Connectors | 1 | 15 A | 7 | Vertical | 300 V | 7 | 0.197 in | Green | Through Hole | Solder | Header Male Pins Shrouded (2 Side) | -40 °C | 110 °C | Tin | 0.138 in | 0.472 in | Nylon 6/6 PA66 Polyamide | UL94 V-0 | Copper Alloy |
 TE Connectivity AMP Connectors | 1 | 15 A | 3 | Vertical | 300 V | 3 | 0.197 in | Green | Through Hole | Solder | Header Male Pins Shrouded (2 Side) | -40 °C | 110 °C | Tin | 0.138 in | 0.472 in | Nylon 6/6 PA66 Polyamide | UL94 V-0 | Copper Alloy |
TE Connectivity AMP Connectors | 1 | 15 A | 19 | Vertical | 300 V | 19 | 0.197 in | Green | Through Hole | Solder | Header Male Pins Shrouded (2 Side) | -40 °C | 110 °C | Tin | 0.138 in | 0.472 in | Nylon 6/6 PA66 Polyamide | UL94 V-0 | Copper Alloy |
TE Connectivity AMP Connectors | 1 | 15 A | 22 | Vertical | 300 V | 22 | 0.197 in | Green | Through Hole | Solder | Header Male Pins Shrouded (2 Side) | -40 °C | 110 °C | Tin | 0.138 in | 0.472 in | Nylon 6/6 PA66 Polyamide | UL94 V-0 | Copper Alloy |
TE Connectivity AMP Connectors | 1 | 15 A | 24 | Vertical | 300 V | 24 pos | 0.197 in | Green | Through Hole | Solder | Header Male Pins Shrouded (2 Side) | -40 °C | 110 °C | Tin | 0.138 in | 0.472 in | Nylon 6/6 PA66 Polyamide | UL94 V-0 | Copper Alloy |
 TE Connectivity AMP Connectors | 1 | 15 A | 18 | Vertical | 300 V | 18 | 0.197 in | Green | Through Hole | Solder | Header Male Pins Shrouded (2 Side) | -40 °C | 110 °C | Tin | 0.138 in | 0.472 in | Nylon 6/6 PA66 Polyamide | UL94 V-0 | Copper Alloy |
