2314917 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

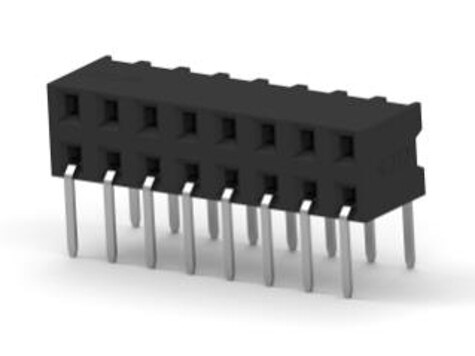

BOARD TO BOARD & MEZZANINE CONNECTORS 16P,2MM,B-B,REC,DRHZ ,2.1,0.38AU,TB
| Part | Row Spacing - Mating | Contact Type | Material Flammability Rating | Termination | Insulation Height | Voltage Rating | Current Rating | Mounting Type | Number of Positions Loaded | Pitch - Mating | Contact Finish - Mating | Contact Finish - Post | Contact Length - Post | Number of Rows | Connector Type | Fastening Type | Operating Temperature (Max) | Operating Temperature (Min) | Insulation Color | Contact Finish Thickness - Mating | Style | Number of Positions | Contact Finish Thickness - Post | Insulation Material | Contact Material | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.079 in | Female Socket | UL94 V-0 | Solder | 0.161 in | 125 V | 2 A | Right Angle Through Hole | All | 0.079 in | Gold | Tin | 0.083 in | 2 | Receptacle | Push-Pull | 125 °C | -40 °C | Black | 15 µin | Board | 16 | 12 µin | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Square |
 TE Connectivity AMP Connectors | 0.079 in | Female Socket | UL94 V-0 | Solder | 0.161 in | 125 V | 2 A | Right Angle Through Hole | All | 0.079 in | Gold | Tin | 0.083 in | 2 | Receptacle | Push-Pull | 125 °C | -40 °C | Black | 15 µin | Board | 14 | 12 µin | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Square |
