FUS 250V F/A MIDGET 7A
Description
AI

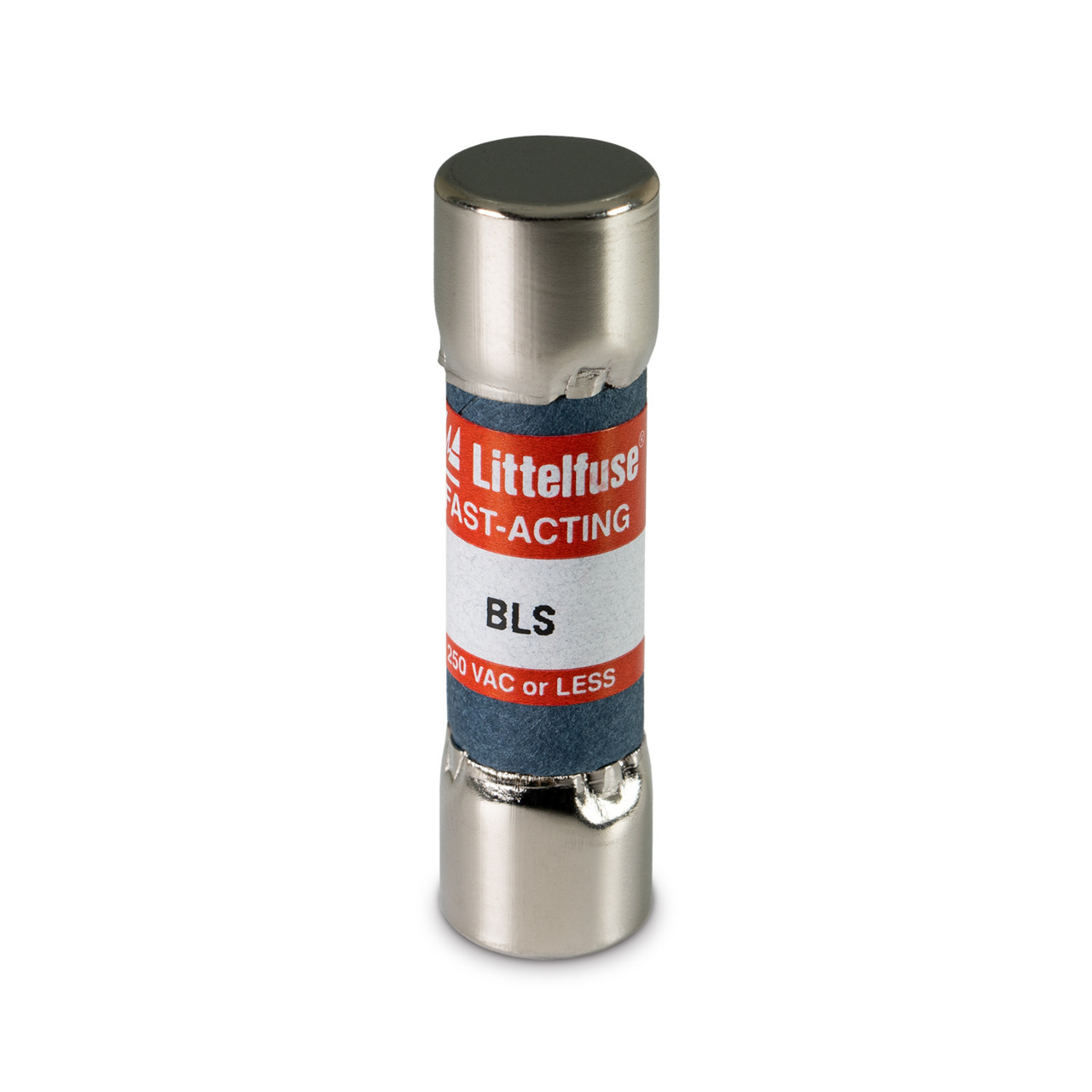

BLS007 is a special-sized Midget fuse at 1 ⅜" long with an ampere rating of 7 and 250 V ac.
Beta
⌘K
FUS 250V F/A MIDGET 7A
FUS 250V F/A MIDGET 7A
| Part | DC Cold Resistance | Package Length | Package Name | Package / Case | Package Features | Package Width | Breaking Capacity | Mounting Type | Applications | Current Rating | Response Time | Size / Dimension Length | Size / Dimension Diameter | Voltage Rating - AC | Approval Agency | Fuse Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.105 Ohms | 10 mm | 5AG 5AG Midget | 10mm x 38mm (Midget) 5AG | Midget | 38 mm | 10 kA | Requires Holder | Electrical Industrial | 7 A | Fast Blow | 1.375 in | 0.406 in | 250 V | CSA UL | Cartridge |
