84533 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN FFC TOP 20POS 1.25MM R/A

Part	FFC, FCB Thickness	Termination	Number of Positions	Flat Flex Type	Mounting Type	Pitch [x]	Pitch [x]	Contact Finish	Height Above Board [z]	Height Above Board [z]	Housing Material	Cable End Type	Connector/Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Voltage Rating

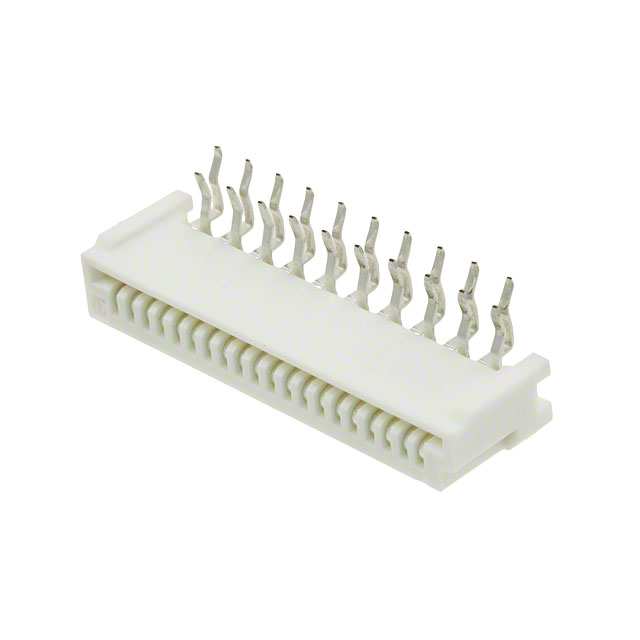

TE Connectivity Raychem Cable Protection 2-84533-0	0.3 mm	Kinked Pin	20	FFC	Through Hole Right Angle	0.049 in	1.25 mm	Tin	0.189 in	4.8 mm	Polybutylene Terephthalate (PBT) Glass Filled	Tapered	Contacts Top	85 °C	-40 °C	Phosphor Bronze	50 V
TE Connectivity Raychem Cable Protection 2-84533-1	0.3 mm	Kinked Pin	21	FFC	Through Hole Right Angle	0.049 in	1.25 mm	Tin	0.189 in	4.8 mm	Polybutylene Terephthalate (PBT) Glass Filled	Tapered	Contacts Top	85 °C	-40 °C	Phosphor Bronze	50 V
TE Connectivity Raychem Cable Protection 3-84533-1	0.3 mm	Kinked Pin	31	FFC	Through Hole Right Angle	0.049 in	1.25 mm	Tin	0.189 in	4.8 mm	Polybutylene Terephthalate (PBT) Glass Filled	Tapered	Contacts Top	85 °C	-40 °C	Phosphor Bronze	50 V
TE Connectivity Raychem Cable Protection 4-84533-0	0.3 mm	Kinked Pin	40	FFC	Through Hole Right Angle	0.049 in	1.25 mm	Tin	0.189 in	4.8 mm	Polybutylene Terephthalate (PBT) Glass Filled	Tapered	Contacts Top	85 °C	-40 °C	Phosphor Bronze	50 V
TE Connectivity Raychem Cable Protection 3-84533-6	0.3 mm	Kinked Pin	36	FFC	Through Hole Right Angle	0.049 in	1.25 mm	Tin	0.189 in	4.8 mm	Polybutylene Terephthalate (PBT) Glass Filled	Tapered	Contacts Top	85 °C	-40 °C	Phosphor Bronze	50 V
TE Connectivity Raychem Cable Protection 3-84533-4	0.3 mm	Kinked Pin	34	FFC	Through Hole Right Angle	0.049 in	1.25 mm	Tin	0.189 in	4.8 mm	Polybutylene Terephthalate (PBT) Glass Filled	Tapered	Contacts Top	85 °C	-40 °C	Phosphor Bronze	50 V
TE Connectivity Raychem Cable Protection 2-84533-3	0.3 mm	Kinked Pin	23	FFC	Through Hole Right Angle	0.049 in	1.25 mm	Tin	0.189 in	4.8 mm	Polybutylene Terephthalate (PBT) Glass Filled	Tapered	Contacts Top	85 °C	-40 °C	Phosphor Bronze	50 V
TE Connectivity Raychem Cable Protection 84533-7	0.3 mm	Kinked Pin	7	FFC	Through Hole Right Angle	0.049 in	1.25 mm	Tin	0.189 in	4.8 mm	Polybutylene Terephthalate (PBT) Glass Filled	Tapered	Contacts Top	85 °C	-40 °C	Phosphor Bronze	50 V
TE Connectivity Raychem Cable Protection 84533-4	0.3 mm	Kinked Pin	4	FFC	Through Hole Right Angle	0.049 in	1.25 mm	Tin	0.189 in	4.8 mm	Polybutylene Terephthalate (PBT) Glass Filled	Tapered	Contacts Top	85 °C	-40 °C	Phosphor Bronze	50 V

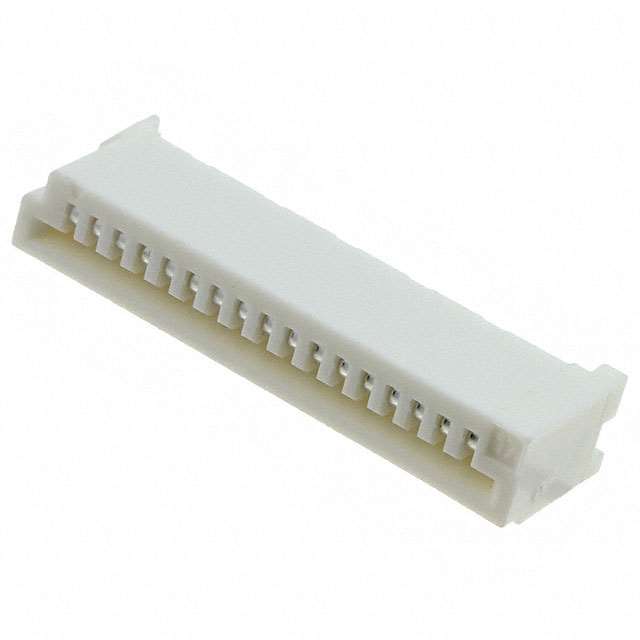

TE Connectivity Raychem Cable Protection 1-84533-7	0.3 mm	Kinked Pin		FFC	Through Hole Right Angle	0.049 in	1.25 mm	Tin	0.189 in	4.8 mm	Polybutylene Terephthalate (PBT) Glass Filled	Tapered	Contacts Top	85 °C	-40 °C	Phosphor Bronze	50 V
