076985 Series

Manufacturer: Molex

Catalog

CONN HEADER IMPACT 180POS PCB

Part	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Voltage Rating	Connector Style	Color	Mounting Type	Number of Columns	Contact Finish	Number of Positions Loaded	Connector Type	Number of Rows	Termination	Number of Positions	Contact Finish Thickness	Differential Pairs (Typical)
Molex 0769855208	-55 °C	85 °C	UL94 V-0	30 V	Guide Right Impact	Black	Through Hole	12	Gold	All	Header Male Pins	15	Press-Fit	180	30 µin	60
Molex 0769857107	-55 °C	85 °C	UL94 V-0	30 V	Guide Left Impact	Black	Through Hole	10	Gold	All	Header Male Pins	15	Press-Fit	150	30 µin	50

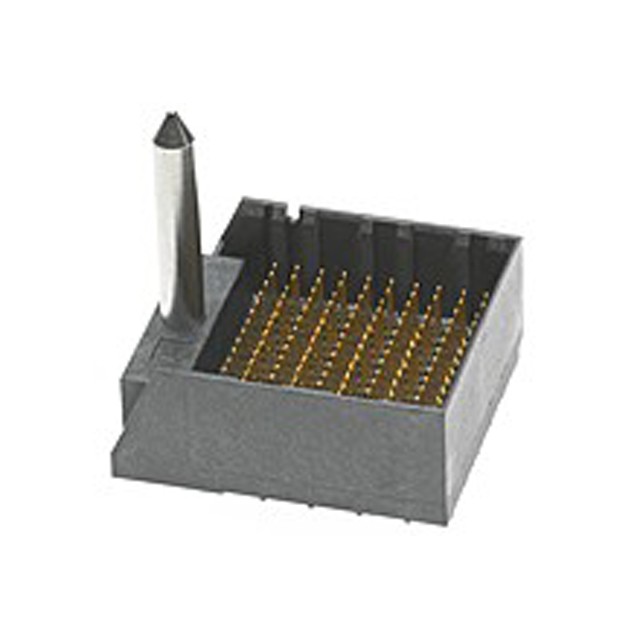

Molex 0769857105	-55 °C	85 °C	UL94 V-0	30 V	Guide Left Impact	Black	Through Hole	10	Gold	All	Header Male Pins	15	Press-Fit	150	30 µin	50
Molex 0769859208	-55 °C	85 °C	UL94 V-0	30 V	Guide Right Impact	Black	Through Hole	12	Gold	All	Header Male Pins	15	Press-Fit	180	30 µin	60

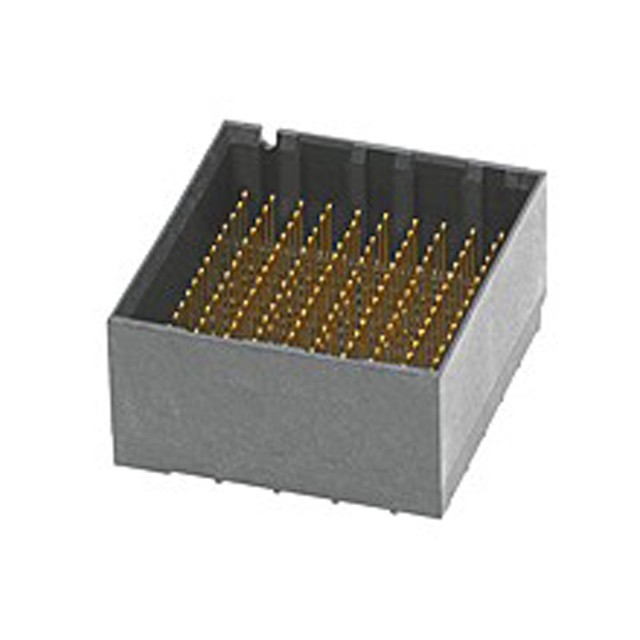

Molex 0769851128	-55 °C	85 °C	UL94 V-0	30 V	Impact	Black	Through Hole	10	Gold	All	Header Male Pins	15	Press-Fit	150	30 µin	50
Molex 0769857208	-55 °C	85 °C	UL94 V-0	30 V	Guide Left Impact	Black	Through Hole	12	Gold	All	Header Male Pins	15	Press-Fit	180	30 µin	60
Molex 0769857805	-55 °C	85 °C	UL94 V-0	30 V	Guide Left Impact	Black	Through Hole	8	Gold	All	Header Male Pins	15	Press-Fit	120	30 µin	40
Molex 0769857108	-55 °C	85 °C	UL94 V-0	30 V	Guide Left Impact	Black	Through Hole	10	Gold	All	Header Male Pins	15	Press-Fit	150	30 µin	50
