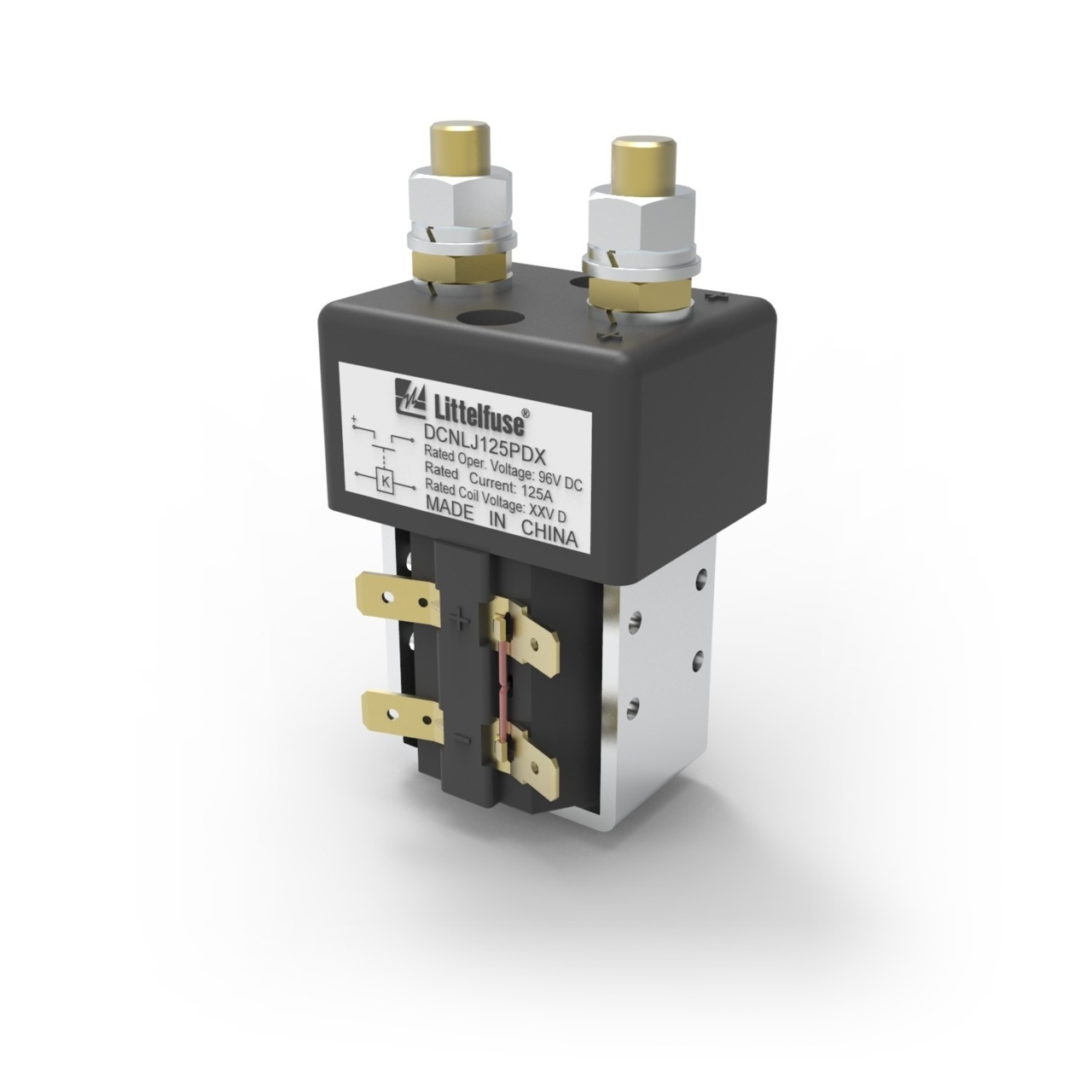

DCNLJ125PD24 Series

DCNLJ 125A 96V P 24Vcoil

Catalog

DCNLJ 125A 96V P 24Vcoil

Part	Quick Connect Size (0.250")	Termination Style	Coil Voltage	Must Release Voltage	Switching Voltage DC (Max)	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Form A Count	Contact Form	Must Operate Voltage	Contact Rating (Current)
LITTELFUSE DCNLJ125PD24	0.25 in	Quick Connect Screw Terminal	24 VDC	2 VDC	110 VDC	Chassis Mount	-40 °C	85 °C	1	SPST-NO	16.8 VDC	125 A

Catalog

DCNLJ 125A 96V P 24Vcoil

Description

Designed for high-current contact switching in electric control systems of communication power supplies, electro-motion forklifts, motor cars, trains, uninterruptible power supplies (UPS), and more, this 125A High-Current High-Voltage DC Contactor Relay has a normally open contact arrangement and features a contact voltage drop of ≤80 mV @ 100A. This model of the DCNLJ125 series (DCNLJ125PD24) DC contactor has a 24V coil and polarized contacts rated for 96V (typical) and 110V (max).
