Dynamic D-1100D Series Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

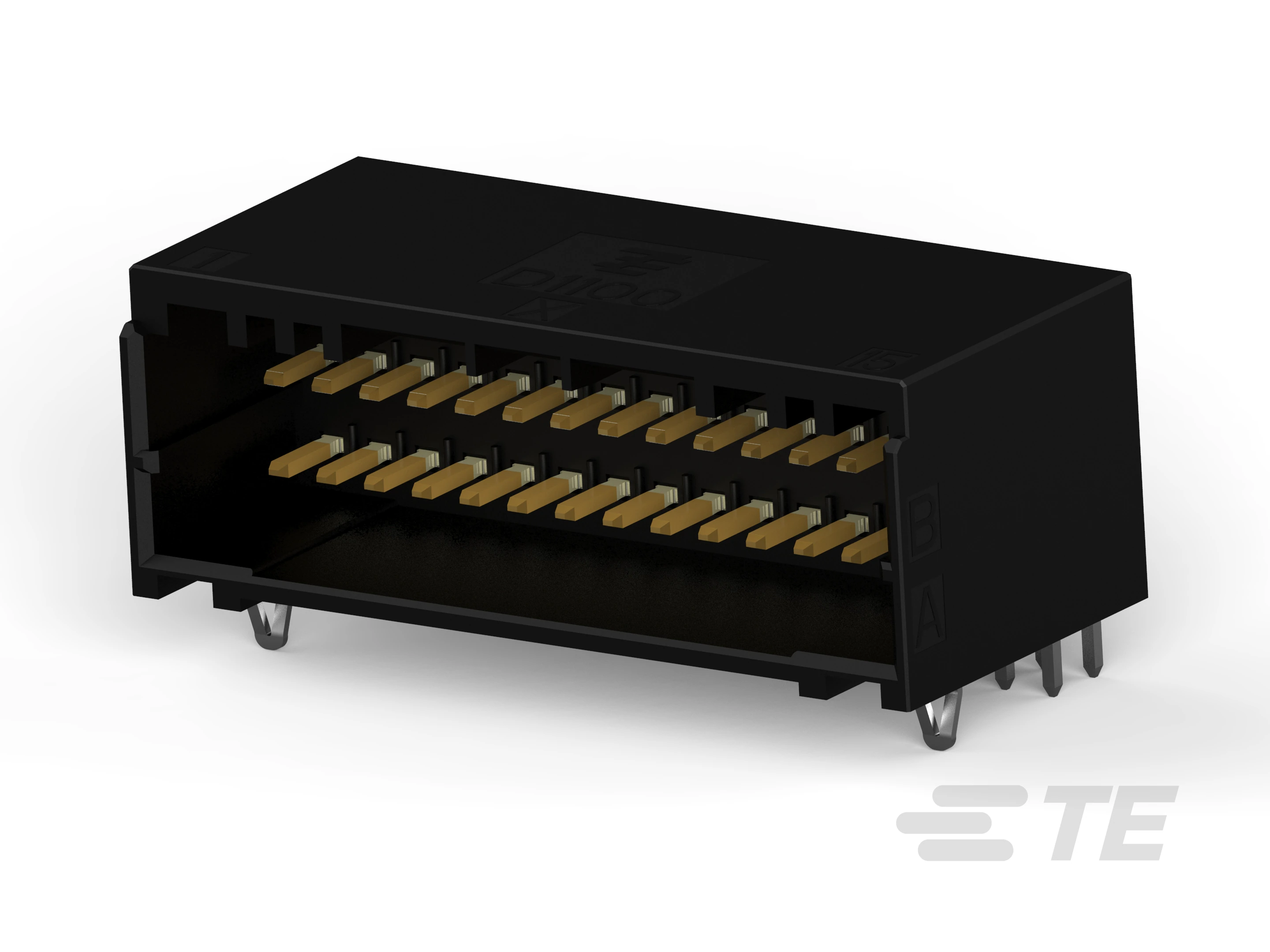

DYNAMIC 1100D HDR ASSY H 30P XBLACK TIN
| Part | Style | Row Spacing - Mating | Number of Rows | Pitch - Mating | Material Flammability Rating | Current Rating | Termination | Contact Length - Post | Contact Finish - Mating | Contact Type | Number of Positions | Mounting Type | Shrouding | Contact Shape | Fastening Type | Contact Material | Features | Insulation Height | Operating Temperature (Min) | Operating Temperature (Max) | Contact Finish Thickness - Mating | Contact Finish - Post | Voltage Rating | Number of Positions Loaded | Connector Type | Insulation Color | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Board Cable/Wire | 0.098 in | 2 | 0.079 in | UL94 V-0 | 3 A | Solder | 0.122 in | Tin | Male Pin | 30 | Right Angle Through Hole | Shrouded - 4 Wall | Rectangular | Push-Pull | Copper Alloy | Solder Retention | 0.465 in | -55 °C | 105 °C | 39.4 µin | Tin | 125 V | All | Header | Black | Glass Filled Polyester Thermoplastic |
