72479 Series

Catalog

CONN RCPT 60POS FREE HANGING

Part	Current Rating	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Features	Termination	Number of Rows	Color	Contact Finish Thickness	Mounting Type	Number of Positions Loaded	Number of Positions	Contact Finish	Connector Type

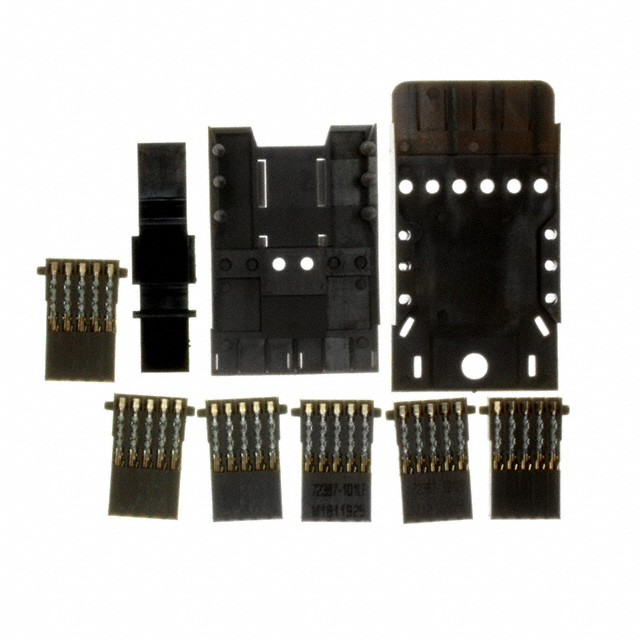

Amphenol ICC (FCI) 72479-1211LF	1 A	UL94 V-0	-55 °C	105 °C	1000 V	Latch Fingers	IDC	5	Gray	30 µin	Free Hanging (In-Line)	All	60	Gold	Female Sockets Receptacle
Amphenol ICC (FCI) 72479-1221LF	1 A	UL94 V-0	-55 °C	105 °C	1000 V	Latch Fingers	IDC	5	Gray	30 µin	Free Hanging (In-Line)	All	60	Gold	Female Sockets Receptacle
Amphenol ICC (FCI) 72479-1121LF	1 A	UL94 V-0	-55 °C	105 °C	1000 V	Latch Fingers	IDC	5	Gray	30 µin	Free Hanging (In-Line)	All	60	Gold	Female Sockets Receptacle
Amphenol ICC (FCI) 72479-2211LF	1 A	UL94 V-0	-55 °C	105 °C	1000 V	Latch Fingers	IDC	5	Gray	78.7 µin	Free Hanging (In-Line)	All	60	Gold	Female Sockets Receptacle
Amphenol ICC (FCI) 72479-2121LF	1 A	UL94 V-0	-55 °C	105 °C	1000 V	Latch Fingers	IDC	5	Gray	78.7 µin	Free Hanging (In-Line)	All	60	Gold	Female Sockets Receptacle
Amphenol ICC (FCI) 72479-2111LF	1 A	UL94 V-0	-55 °C	105 °C	1000 V	Latch Fingers	IDC	5	Gray	78.7 µin	Free Hanging (In-Line)	All	60	Gold	Female Sockets Receptacle
