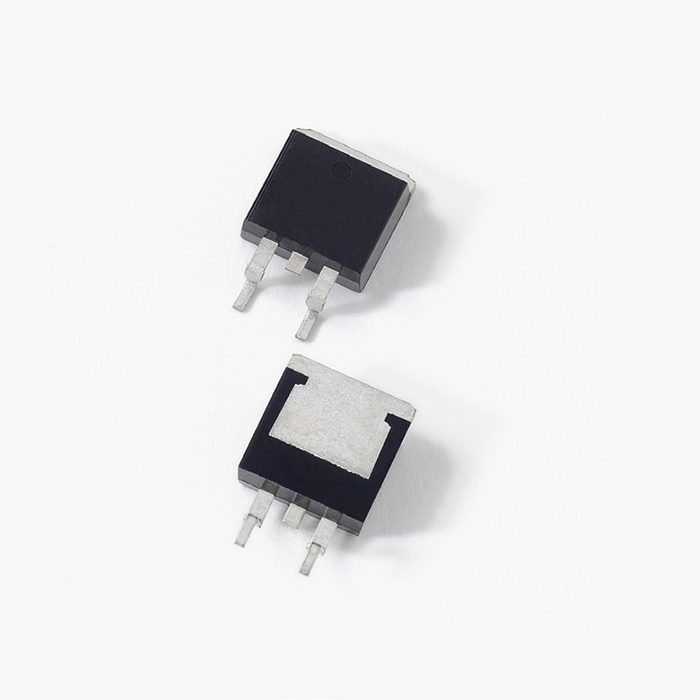

DURB1640CT Series
Manufacturer: LITTELFUSE
Beta
⌘K
400V 16A ULTRAFAST RECTIFIER DUR SERIES/ TR
| Part | Reverse Recovery Time (trr) | Diode Pair Count | Diode Configuration | Speed - Fast Recovery (Maximum) | Speed - Fast Recovery (Minimum) | Package / Case | Current - Reverse Leakage | Technology | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Current - Average Rectified (Io) (per Diode) | Voltage - DC Reverse (Vr) (Max) | Voltage - Forward (Vf) (Max) | Mounting Type | Package Name |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE | 45 ns | 1 pair | Common Cathode | 500 ns | 200 mA | D2PAK (2 Leads + Tab) TO-263-3 TO-263AB | 10 µA | Standard | 150 °C | -55 °C | 8 A | 400 V | 1.3 V | Surface Mount | TO-263 (D2PAK) |
