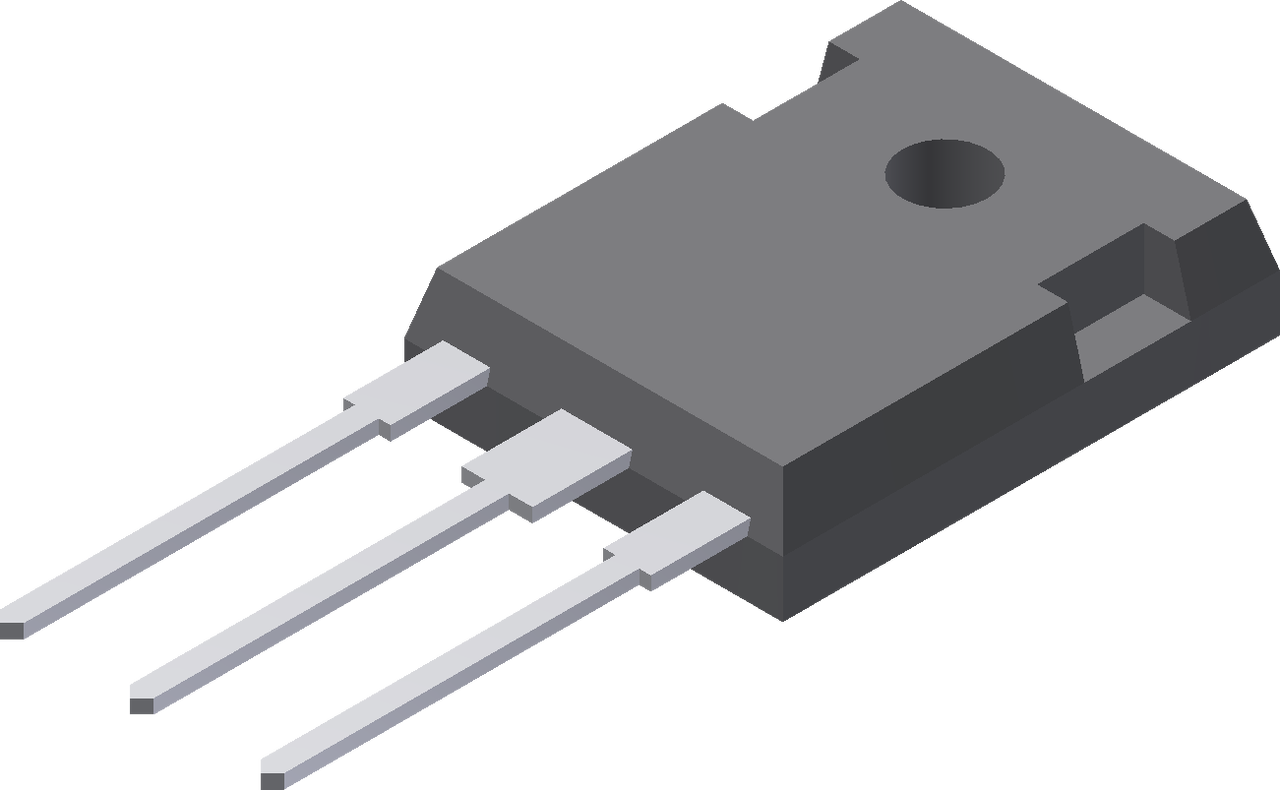

Power Diode Disc-Rectifier ISOPLUS247
Description
AI
The discrete Standard Diode series comes with a broad variety of packages and breakdown voltages up to 1800V.
Beta
⌘K
Power Diode Disc-Rectifier ISOPLUS247
Power Diode Disc-Rectifier ISOPLUS247
| Part | Package Name | Current - Reverse Leakage | Voltage - Forward (Vf) (Max) | Voltage - DC Reverse (Vr) (Max) | Speed - Fast Recovery (Minimum) | Speed | Speed - Recovery Current | Speed - Recovery Time | Technology | Current - Average Rectified (Io) | Capacitance | Package / Case | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE | ISO247 | 10 µA | 1.23 V 1.23 V | 1600 V | 200 mA 500 ns | Standard Recovery | 200 mA 200 mA | 500 ns | Standard | 10 A | 4 pF | TO-247-3 | 175 °C | -55 °C | Through Hole |
