74FCT163373 Series

3.3V 16-Bit Transparent Latch

Manufacturer: Renesas Electronics Corporation

Catalog

3.3V 16-Bit Transparent Latch

Part	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package Name	Logic Type	Independent Circuits	Mounting Type	Package Length	Package Width	Current - Output Low	Current - Output High	Circuit	Operating Temperature (Min)	Operating Temperature (Max)	Output Type	Delay Time - Propagation
Renesas Electronics Corporation 74FCT163373CPAG	3.6 V	2.3 V	48-TFSOP 48-TSSOP	D-Type Transparent Latch	2	Surface Mount	0.24 in	6.1 mm	24 mA	8 mA	8:8	-40 °C	85 °C	Tri-State	1.5 ns
Renesas Electronics Corporation 74FCT163373APAG8	3.6 V	2.3 V	48-TFSOP 48-TSSOP	D-Type Transparent Latch	2	Surface Mount	0.24 in	6.1 mm	24 mA	8 mA	8:8	-40 °C	85 °C	Tri-State	1.5 ns
Renesas Electronics Corporation 74FCT163373APVG	3.6 V	2.3 V	48-BSSOP 48-SSOP	D-Type Transparent Latch	2	Surface Mount	0.295 in	7.5 mm	24 mA	8 mA	8:8	-40 °C	85 °C	Tri-State	1.5 ns
Renesas Electronics Corporation 74FCT163373APAG	3.6 V	2.3 V	48-TFSOP 48-TSSOP	D-Type Transparent Latch	2	Surface Mount	0.24 in	6.1 mm	24 mA	8 mA	8:8	-40 °C	85 °C	Tri-State	1.5 ns
Renesas Electronics Corporation 74FCT163373CPAG8	3.6 V	2.3 V	48-TFSOP 48-TSSOP	D-Type Transparent Latch	2	Surface Mount	0.24 in	6.1 mm	24 mA	8 mA	8:8	-40 °C	85 °C	Tri-State	1.5 ns
Renesas Electronics Corporation 74FCT163373CPVG	3.6 V	2.3 V	48-BSSOP 48-SSOP	D-Type Transparent Latch	2	Surface Mount	0.295 in	7.5 mm	24 mA	8 mA	8:8	-40 °C	85 °C	Tri-State	1.5 ns

Catalog

3.3V 16-Bit Transparent Latch

Description

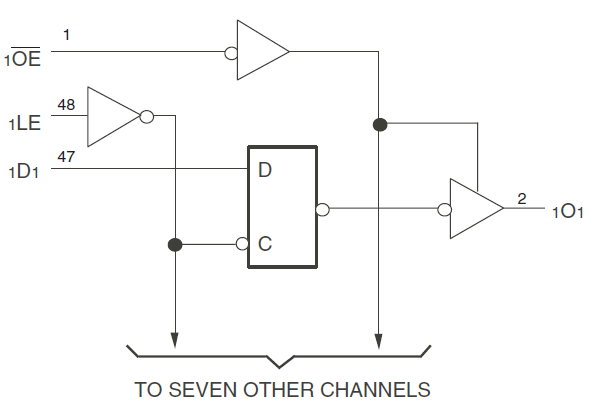

The 74FCT163373 16-bit high-speed, low-power transparent D-type latches are ideal for temporary storage of data. It can be used for implementing memory address latches, I/O ports, and bus drivers and can operate as two 8-bit or one 16-bit latch. The inputs of 74FCT163373 can be driven from either 3.3V or 5V devices which allows use as translators in a mixed 3.3V/5V supply system. The 74FCT163373 operates at -40C to +85C
