227426 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

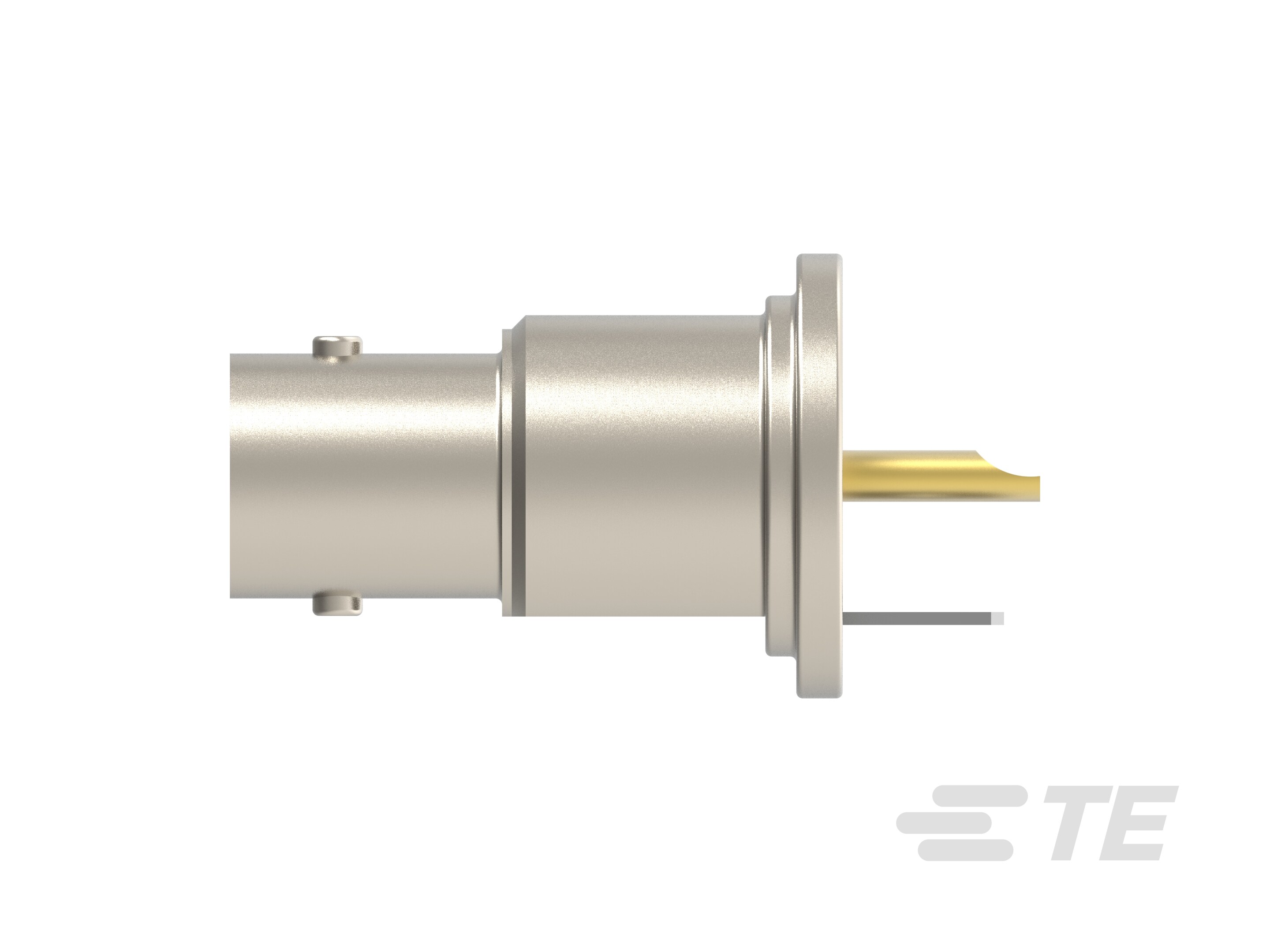

CONN BNC RCPT STR 50 OHM SOLDER
| Part | Connector Style | Number of Ports | Housing Color | Center Contact Material | Impedance | Contact Termination | Shield Termination | Mounting Feature | Connector Type | Frequency - Max | Fastening Type | Mounting Type | Body Finish | Includes Total Count | Includes | Center Contact Plating | Mating Cycles | Dielectric Material | Body Material | Voltage Rating | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | BNC | 1 | Silver | Phosphor Bronze | 50 Ohm | Solder Cup | Solder | Bulkhead Front Side Nut | Female Socket Jack | 4 GHz | Bayonet Lock | Panel Mount | Nickel | 4 pcs | Connector Gasket Lockwasher Nut | Gold | 500 cycles | Polymethylpentene (PMP) | Zinc | 500 V | -65 °C | 165 °C |
