6339191 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN RJ-45 F 8 POS 2.54MM SOLDER RA SMD 12 TERMINAL 1 PORT CAT 5 REEL
| Part | Termination | Shielding | Tab Direction | LED Color | Number of Positions | Connector Type | Number of Contacts | Ratings | Orientation Angle | Orientation Direction | Contact Finish | Number of Rows | Number of Ports | Mounting Type | Contact Material | Features | Operating Temperature (Min) | Operating Temperature (Max) | Housing Material | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

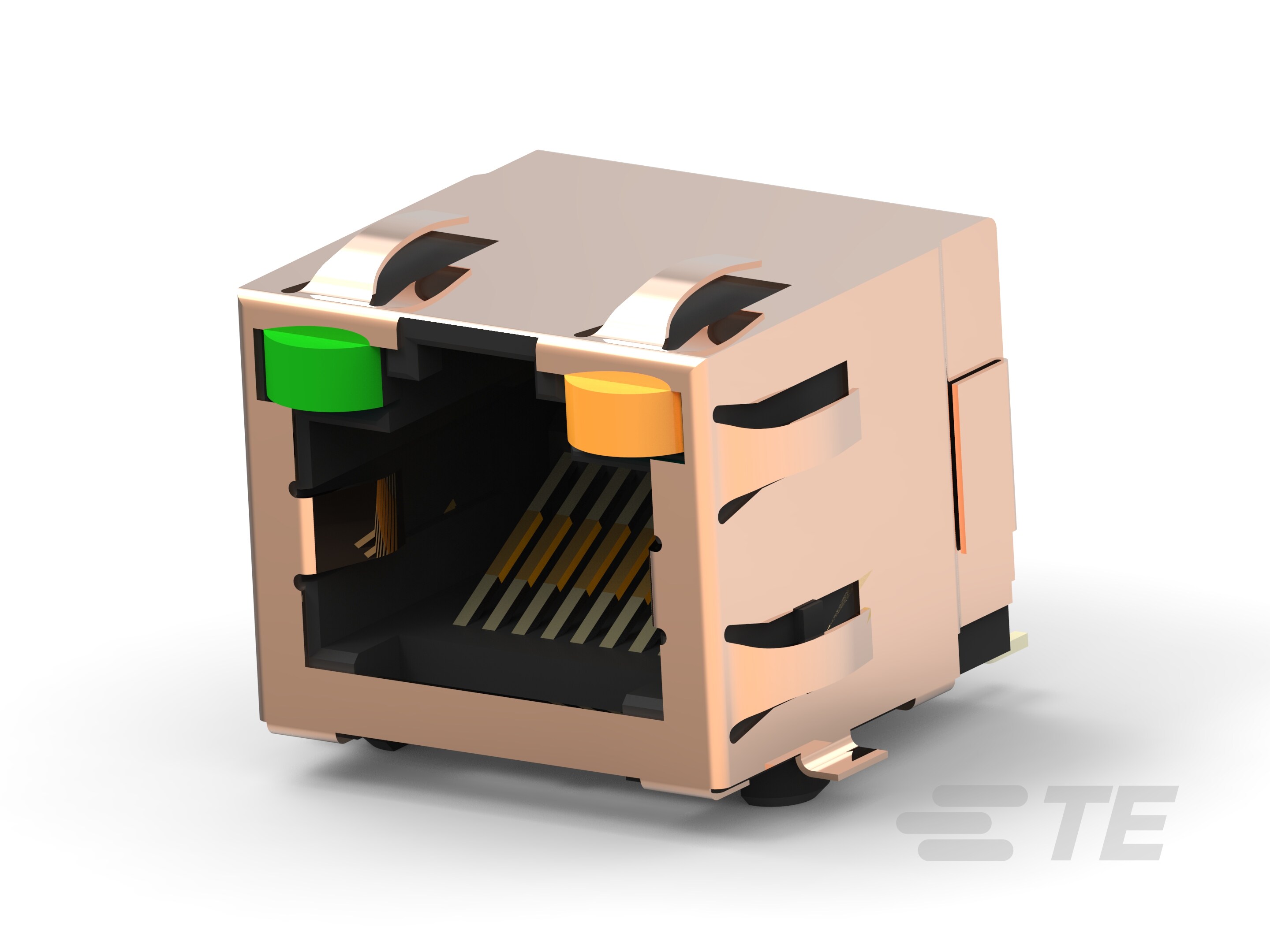

 TE Connectivity AMP Connectors | Solder | EMI Finger Shielded | Up | Green - Orange | 8 | Ethernet Jack RJ45 | 8 | Cat5 | 90 ° | Right | Gold | 1 | 1 | Surface Mount | Phosphor Bronze | Board Guide Solder Retention | -40 °C | 85 °C | LCP Liquid Crystal Polymer | 50 µin |
 TE Connectivity AMP Connectors | Solder | EMI Finger Shielded | Up | Green - Green | 8 | Ethernet Jack RJ45 | 8 | Cat5 | 90 ° | Right | Gold | 1 | 1 | Surface Mount | Phosphor Bronze | Board Guide Solder Retention | -40 °C | 85 °C | LCP Liquid Crystal Polymer | 50 µin |

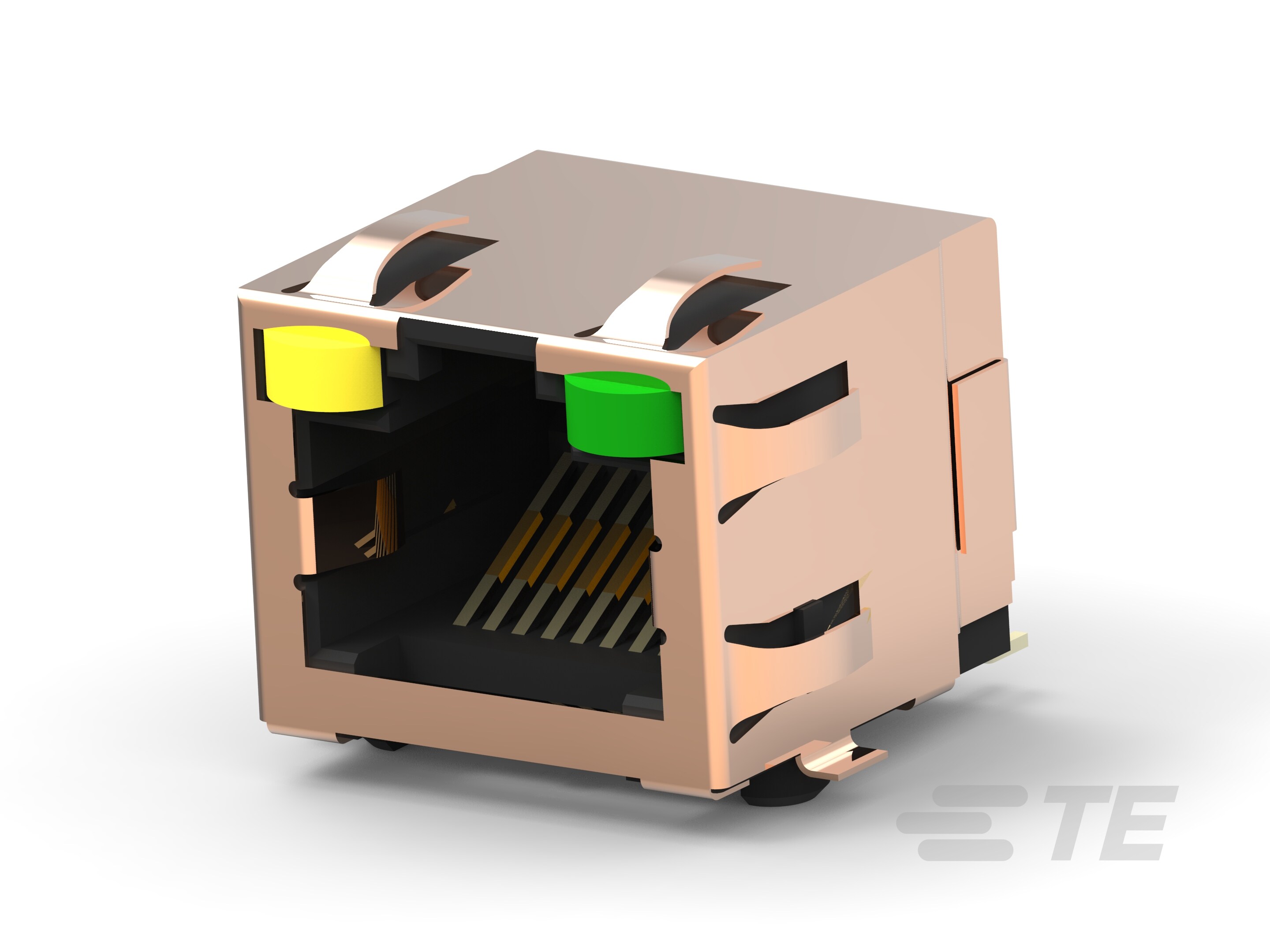

 TE Connectivity AMP Connectors | Solder | EMI Finger Shielded | Up | Yellow - Green | 8 | Ethernet Jack RJ45 | 8 | Cat5 | 90 ° | Right | Gold | 1 | 1 | Surface Mount | Phosphor Bronze | Board Guide Solder Retention | -40 °C | 85 °C | LCP Liquid Crystal Polymer | 50 µin |
