1776295 Series

Catalog

TSB23006DSHT=EUROPA TM BLK,8MM

Part	Material Flammability Rating	Material - Insulation	Terminal Screw Finish	Operating Temperature (Min)	Operating Temperature (Max)	Terminal Screw Material	Mounting Type	Pitch	Color	Terminal Block Type	Top Termination	Current Rating	Barrier Type	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Bottom Termination	Number of Rows	Number of Wire Entries	Number of Circuits	Voltage Rating

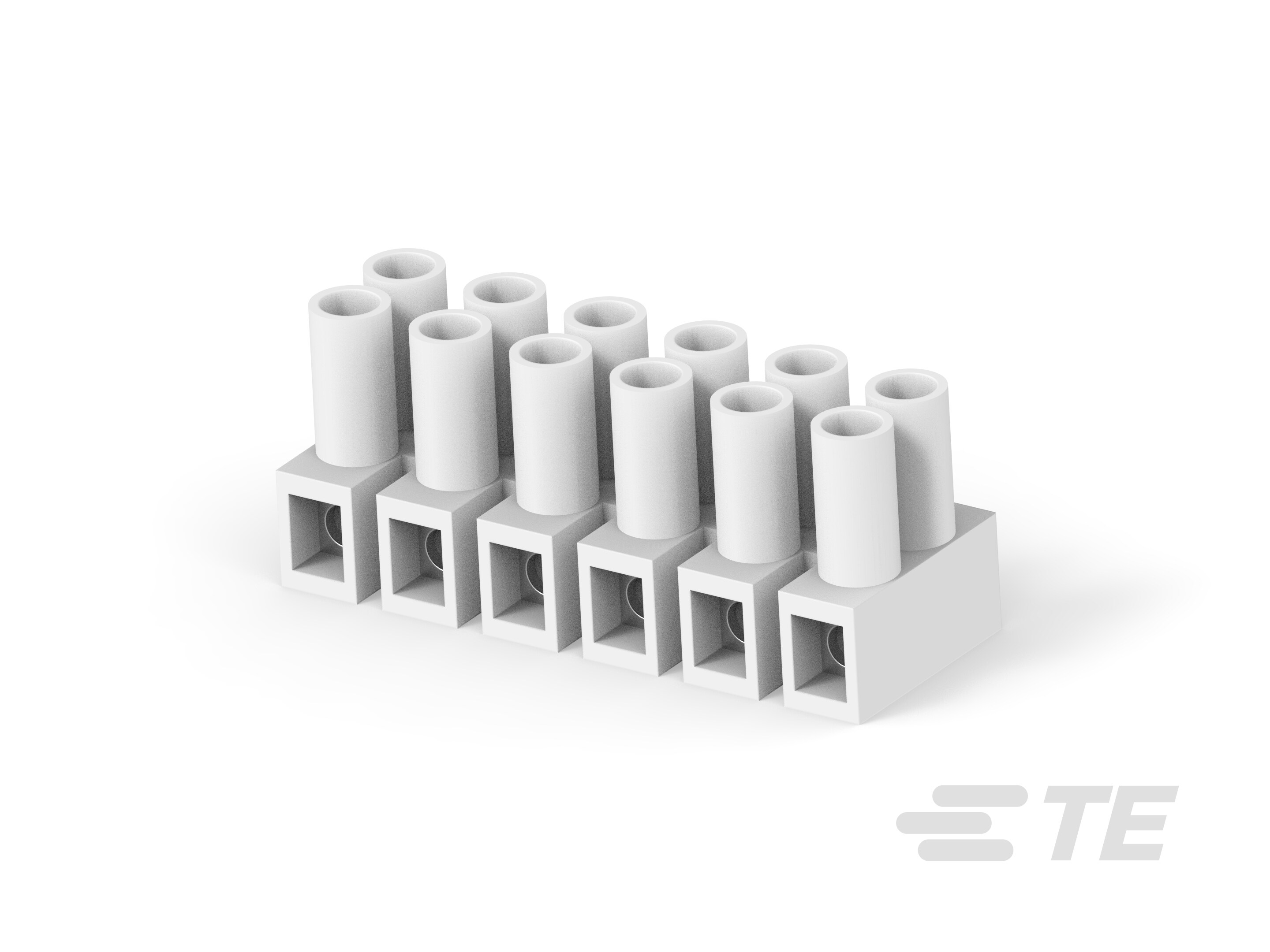

TE Connectivity AMP Connectors 1776295-6	UL94 V-0	Nylon 6/6 PA66 Polyamide	Non-Hexavalent Chromate Zinc	-35 °C	150 °C	Steel	Chassis Panel	0.315 in	Brown	Eurostyle Terminal Strip	Screws	30 A	Enclosed	26 AWG	12 AWG	Closed	2	12	6	250 V

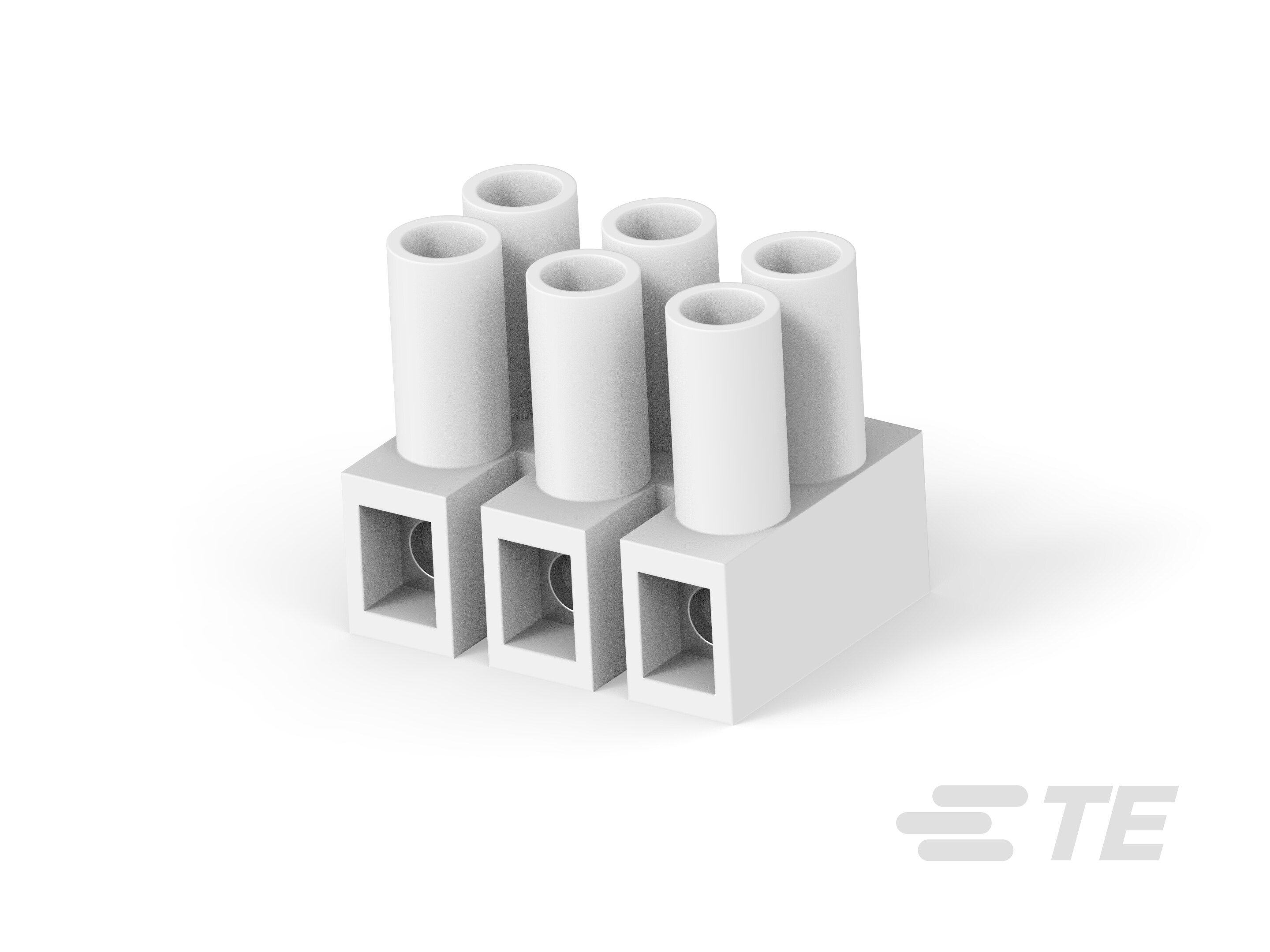

TE Connectivity AMP Connectors 1776295-3	UL94 V-0	Nylon 6/6 PA66 Polyamide	Non-Hexavalent Chromate Zinc	-35 °C	150 °C	Steel	Chassis Panel	0.315 in	Brown	Eurostyle Terminal Strip	Screws	30 A	Enclosed	26 AWG	12 AWG	Closed	2	6	3	250 V
TE Connectivity AMP Connectors 1-1776295-0	UL94 V-0	Nylon 6/6 PA66 Polyamide	Non-Hexavalent Chromate Zinc	-35 °C	150 °C	Steel	Chassis Panel	0.315 in	Brown	Eurostyle Terminal Strip	Screws	30 A	Enclosed	26 AWG	12 AWG	Closed	2	20	10	250 V
