PIC16F15324 Series

Catalog

7KB, 512 B RAM, 4XPWMS, COMPARAT

Part	Connectivity	EEPROM Size (Width)	EEPROM Size (Depth)	Converter Architecture	A/D Channels	D/A Resolution (bits)	A/D Resolution (bits)	D/A Channels	Program Memory Depth	Program Memory Size	Program Memory Width	Peripherals	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	RAM Size Depth	RAM Size Width	Oscillator Type	Core Processor	Grade	Operating Temperature (Max)	Operating Temperature (Min)	Package Name	Qualification	Number of I/O	Core Size (Bit Width)	Package Width	Package Length	Program Memory Type	Speed	Mounting Type	Package / Case
Microchip Technology PIC16F15324-E/STVAO	I2C LINbus SPI UART USART	8 bit	224	SAR	11 count	5 bit	10 bit	1 count	4 K	7 KB	14	Brown-out Detect POR PWM Reset WDT	2.3 V	5.5 V	512	8 bit	External Internal	PIC	Automotive	125 °C	-40 °C	14-TSSOP	AEC-Q100	12	8 Bit	4.4 mm	0.173 in	FLASH	32 MHz	Surface Mount
Microchip Technology PIC16F15324T-I/SL	I2C LINbus SPI UART USART				11 count	5 bit	10 bit	1 count	4 K	7 KB	14	Brown-out Detect POR PWM Reset WDT	2.3 V	5.5 V	512	8 bit	Internal	PIC		85 °C	-40 °C	14-SOIC		12	8 Bit	3.9 mm	0.154 in	FLASH	32 MHz	Surface Mount
Microchip Technology PIC16F15324T-E/SLVAO	I2C LINbus SPI UART USART				11 count		10 bit		4 K	7 KB	14	Brown-out Detect POR PWM Reset WDT	2.3 V	5.5 V	512	8 bit	Internal	PIC	Automotive	125 °C	-40 °C	14-SOIC	AEC-Q100	12	8 Bit	3.9 mm	0.154 in	FLASH	32 MHz	Surface Mount
Microchip Technology PIC16LF15324-I/JQ	I2C LINbus SPI UART USART	8 bit	224		11 count	5 bit	10 bit	1 count	4 K	7 KB	14	Brown-out Detect POR PWM Reset WDT	1.8 V	3.6 V	512	8 bit	Internal	PIC		85 °C	-40 °C	16-UQFN		12	8 Bit	4 mm	4 mm	FLASH	32 MHz	Surface Mount	16-UQFN Exposed Pad

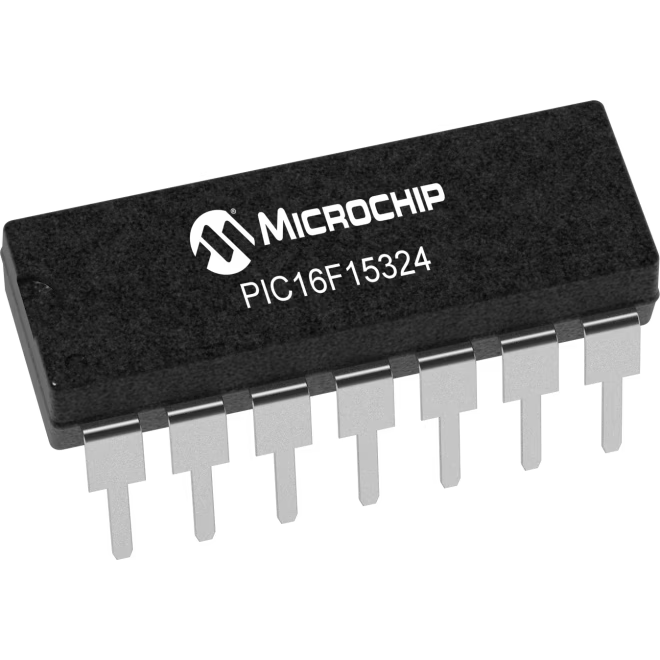

Microchip Technology PIC16LF15324-I/P	I2C LINbus SPI UART USART	8 bit	224		11 count	5 bit	10 bit	1 count	4 K	7 KB	14	Brown-out Detect POR PWM Reset WDT	1.8 V	3.6 V	512	8 bit	Internal	PIC		85 °C	-40 °C	14-DIP 14-PDIP		12	8 Bit	7.62 mm	0.3 in	FLASH	32 MHz	Through Hole
Microchip Technology PIC16F15324T-E/SL	I2C LINbus SPI UART USART	8 bit	224	SAR	11 count	5 bit	10 bit	1 count	4 K	7 KB	14	Brown-out Detect POR PWM Reset WDT	2.3 V	5.5 V	512	8 bit	External Internal	PIC		125 °C	-40 °C	14-SOIC		12	8 Bit	3.9 mm	0.154 in	FLASH	32 MHz	Surface Mount
Microchip Technology PIC16F15324-E/ST	I2C LINbus SPI UART USART				11 count	5 bit	10 bit	1 count	4 K	7 KB	14	Brown-out Detect POR PWM Reset WDT	2.3 V	5.5 V	512	8 bit	Internal	PIC		125 °C	-40 °C	14-TSSOP		12	8 Bit	4.4 mm	0.173 in	FLASH	32 MHz	Surface Mount
Microchip Technology PIC16F15324T-I/ST	I2C LINbus SPI UART USART				11 count	5 bit	10 bit	1 count	4 K	7 KB	14	Brown-out Detect POR PWM Reset WDT	2.3 V	5.5 V	512	8 bit	Internal	PIC		85 °C	-40 °C	14-TSSOP		12	8 Bit	4.4 mm	0.173 in	FLASH	32 MHz	Surface Mount
Microchip Technology PIC16LF15324-I/SL	I2C LINbus SPI UART USART	8 bit	224		11 count	5 bit	10 bit	1 count	4 K	7 KB	14	Brown-out Detect POR PWM Reset WDT	1.8 V	3.6 V	512	8 bit	Internal	PIC		85 °C	-40 °C	14-SOIC		12	8 Bit	3.9 mm	0.154 in	FLASH	32 MHz	Surface Mount
Microchip Technology PIC16F15324-E/7NVAO	I2C LINbus SPI UART USART				11 count		10 bit		4 K	7 KB	14	Brown-out Detect POR PWM Reset WDT	2.3 V	5.5 V	512	8 bit	Internal	PIC	Automotive	125 °C	-40 °C	16-VQFN	AEC-Q100	12	8 Bit	4 mm	4 mm	FLASH	32 MHz	Surface Mount Wettable Flank	16-VQFN Exposed Pad
