508-A Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

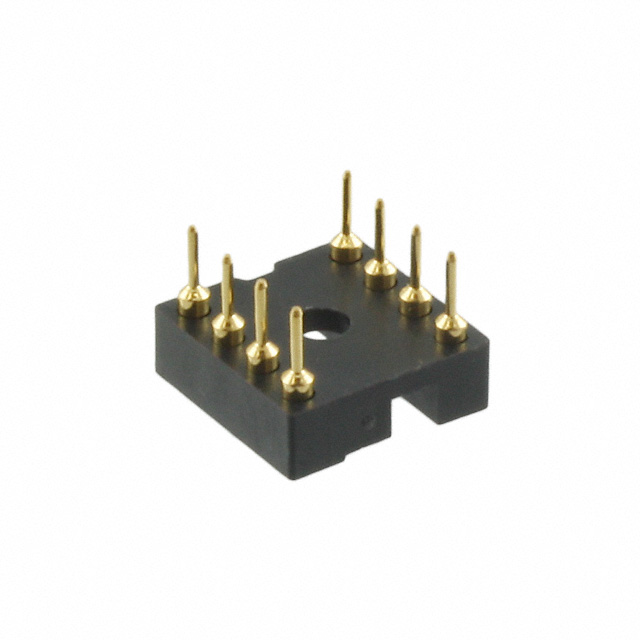

CONN IC DIP SOCKET 8POS GOLD
| Part | Termination Post Length | Contact Resistance | Pitch - Mating | Contact Material - Mating | Grid Columns | Grid Rows | Number of Positions or Pins (Grid) | Mounting Type | Termination | Pitch - Post | Contact Material - Post | Operating Temperature (Max) | Operating Temperature (Min) | Row Spacing | Type | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Features | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.125 in | 10 mOhm | 0.1 in | Beryllium Copper | 4 | 2 | 8 | Through Hole | Solder | 0.1 in | Brass | 125 °C | -55 °C | 0.3 in | 0.3" (7.62mm) Row Spacing DIP | Gold | 5 µin | 5 µin | Closed Frame | Gold |
