1971819 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN HEADER VERT 10POS 2.5MM
| Part | Mounting Type | Number of Positions Loaded | Insulation Color | Contact Finish - Mating | Operating Temperature (Max) | Operating Temperature (Min) | Fastening Type | Connector Type | Contact Material | Contact Shape | Number of Rows | Termination | Features | Material Flammability Rating | Contact Finish - Post | Contact Type | Shrouding | Insulation Height | Pitch - Mating | Style | Number of Positions | Contact Length - Post | Insulation Material | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Through Hole | All | Natural | Tin | 120 °C | -40 °C | Locking Ramp | Header | Copper Alloy | Rectangular | 1 | Solder | Board Guide Glow Wire Compliant | UL94 V-0 | Tin | Tab | Shrouded - 4 Wall | 0.516 in | 0.098 in | Board Cable/Wire | 10 | 0.114 in | Nylon Polyamide (PA) | General Purpose |

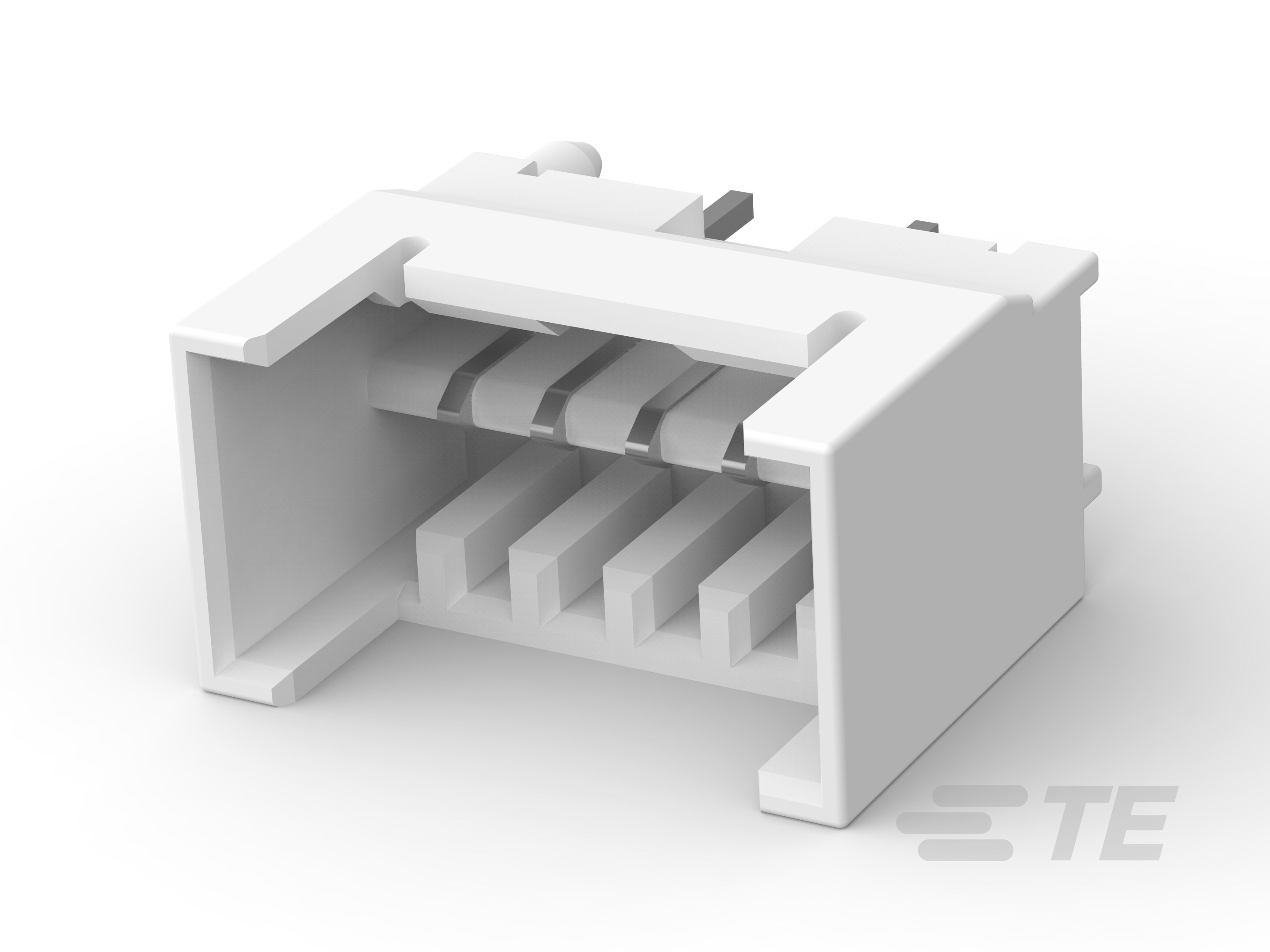

 TE Connectivity AMP Connectors | Through Hole | All | Natural | Tin | 120 °C | -40 °C | Locking Ramp | Header | Copper Alloy | Rectangular | 1 | Solder | Board Guide Glow Wire Compliant | UL94 V-0 | Tin | Tab | Shrouded - 4 Wall | 0.516 in | 0.098 in | Board Cable/Wire | 5 | 0.114 in | Nylon Polyamide (PA) | General Purpose |

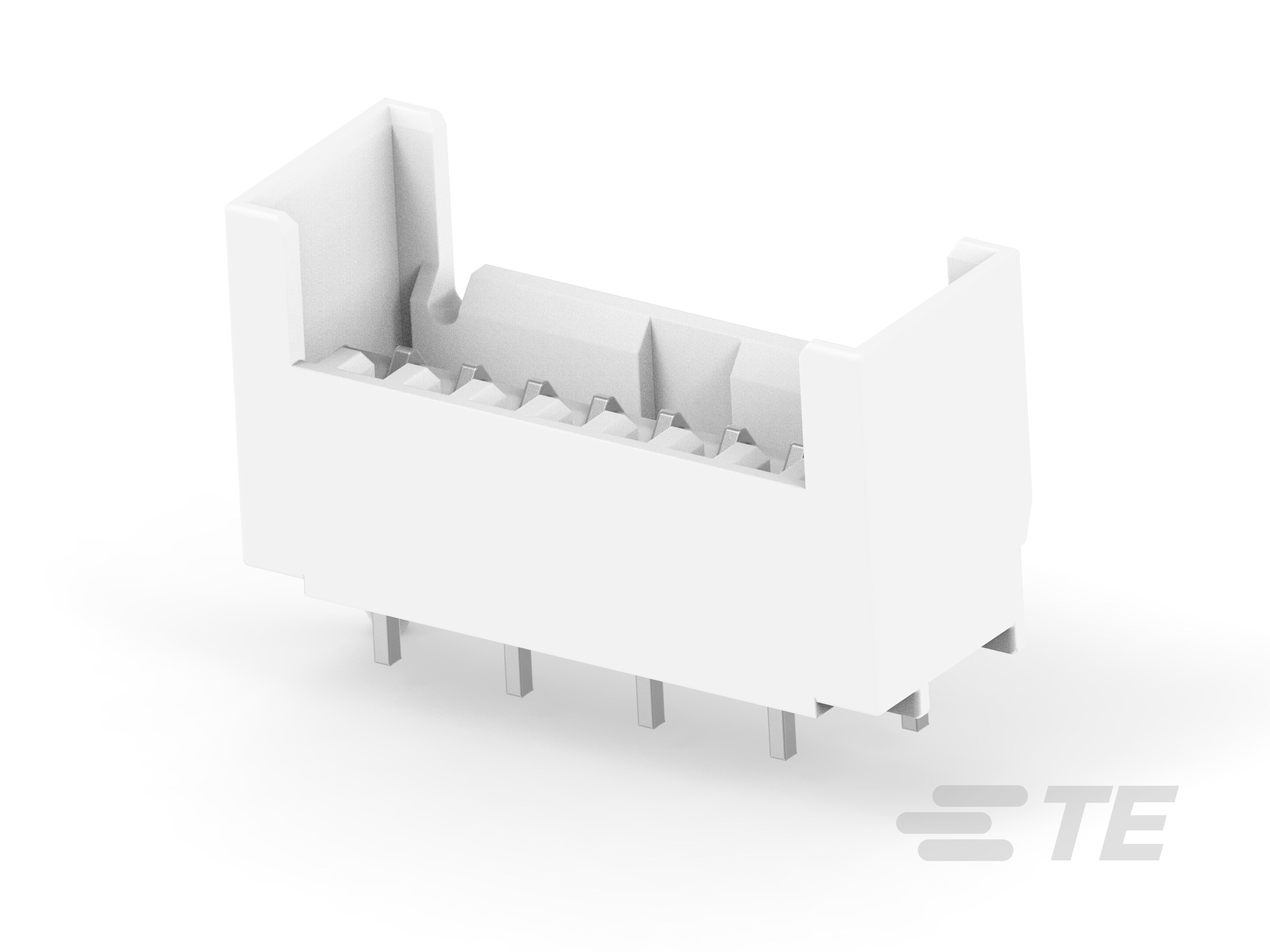

 TE Connectivity AMP Connectors | Through Hole | All | Natural | Tin | 120 °C | -40 °C | Locking Ramp | Header | Copper Alloy | Rectangular | 1 | Solder | Board Guide Glow Wire Compliant | UL94 V-0 | Tin | Tab | Shrouded - 4 Wall | 0.516 in | 0.098 in | Board Cable/Wire | 8 | 0.114 in | Nylon Polyamide (PA) | General Purpose |
 TE Connectivity AMP Connectors | Through Hole | All | Natural | Tin | 120 °C | -40 °C | Locking Ramp | Header | Copper Alloy | Rectangular | 1 | Solder | Board Guide Glow Wire Compliant | UL94 V-0 | Tin | Tab | Shrouded - 4 Wall | 0.516 in | 0.098 in | Board Cable/Wire | 4 | 0.114 in | Nylon Polyamide (PA) | General Purpose |
