FUS 300V F/A CLASS T 700A
Description
AI

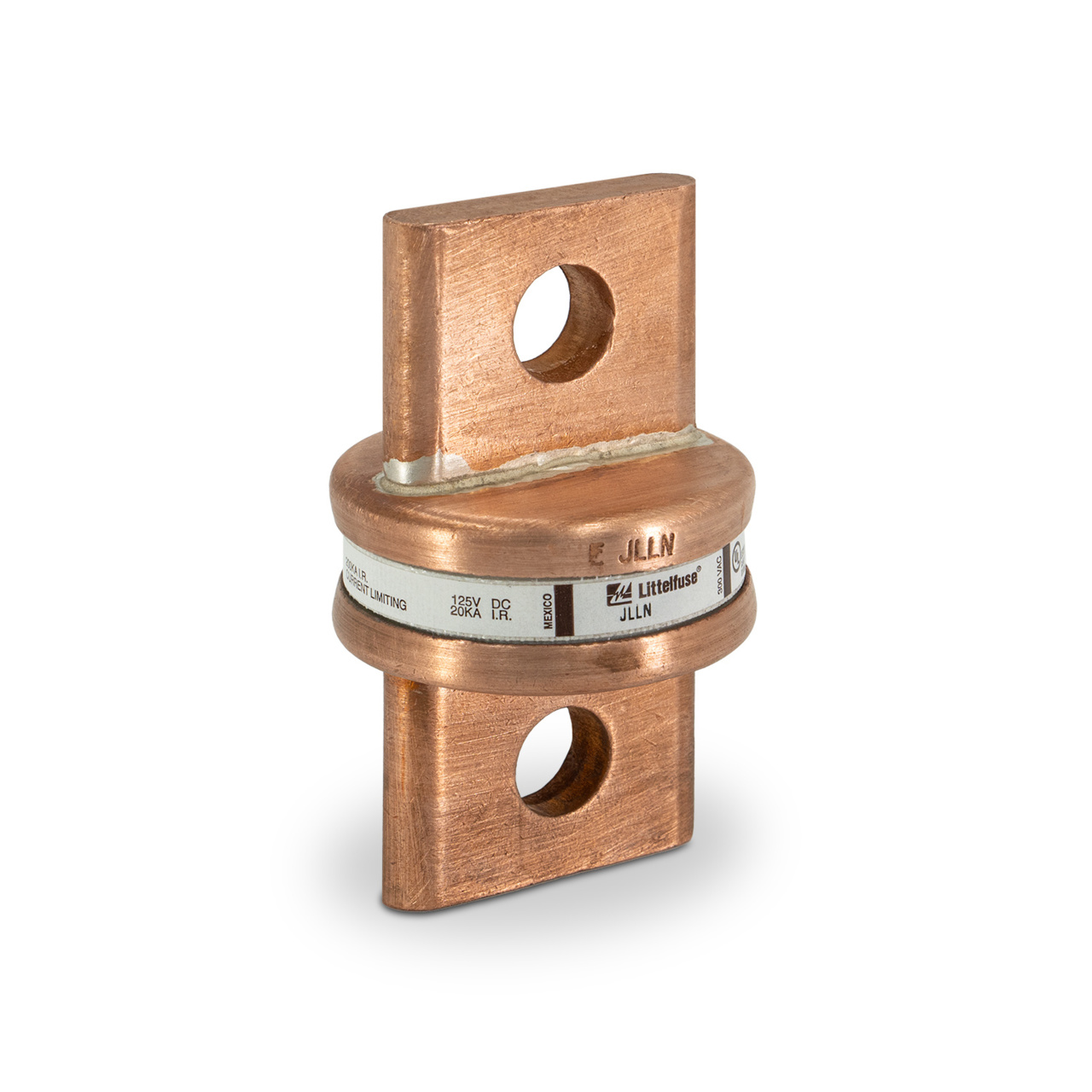

JLLN700 is a Class T fuse with an ampere rating of 700 and knife-blade-style construction.
Beta
⌘K
FUS 300V F/A CLASS T 700A
FUS 300V F/A CLASS T 700A
| Part | Class | Voltage Rating - AC | Package / Case | Voltage Rating - DC | Size / Dimension Length | Size / Dimension Diameter | Response Time | Approval Agency | Current Rating | Fuse Type | Applications | Mounting Type | Breaking Capacity (AC) | Breaking Capacity (DC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | T | 300 V | Blade Terminal (Bolt) Cylindrical | 125 V | 0.874 in | 2.063 in | Fast Blow | CE UL | 700 A | Cartridge | Electrical Industrial | Bolt Mount | 200 kA | 20 kA |
