F Series

Catalog

PUSHBUTTON SWITCHES

Part	Color - Actuator/Cap	Type	Voltage Rating - DC	Mounting Type	Actuator Type	Switch Function	Operating Temperature (Min)	Operating Temperature (Max)	Actuator Marking	Circuit	Termination Style	Current Rating	Voltage Rating - AC	Switch Type	Illumination	Size Width	Size Height	Size Length	Shape	For Use With/Related Products	Color	Size Diameter	Accessory Type
LITTELFUSE 120873	White	Standard	30 V	Right Angle Through Hole	Plunger for Cap	On-On	-40 °C	70 °C	No Marking	8PDT	PC Pin	500 mA	125 V
LITTELFUSE F1902				Snap Fit										Pushbutton	Non-Illuminated	9.96 mm	11.66 mm	19.56 mm	Rectangular	F Series	White
LITTELFUSE FEBK

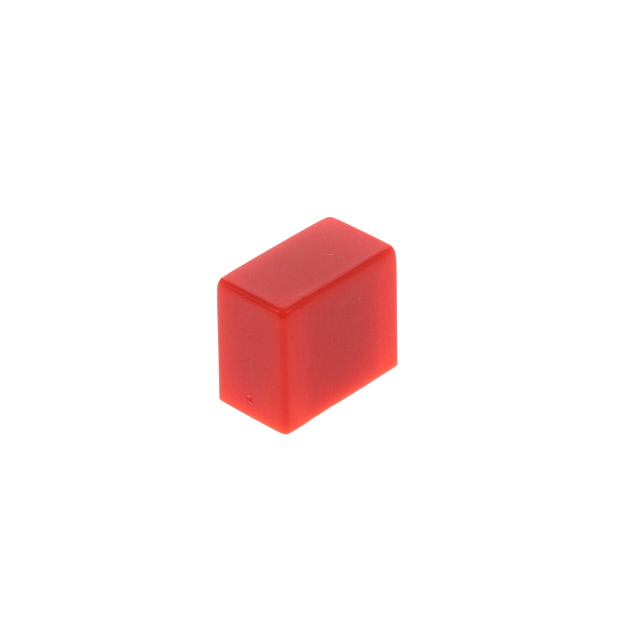

LITTELFUSE F1303				Snap Fit										Pushbutton	Non-Illuminated	7.09 mm	10.49 mm	12.4 mm	Rectangular	F Series	Red

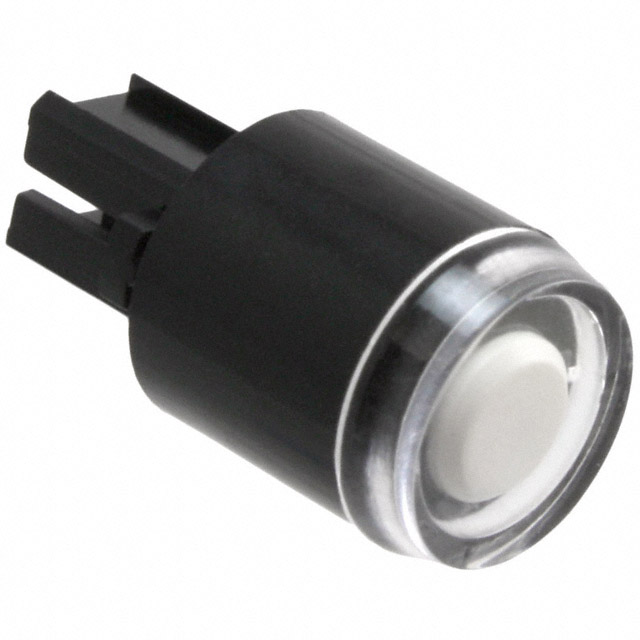

LITTELFUSE F11010102				Snap Fit										Pushbutton	Non-Illuminated		11.07 mm		Round	F Series	White	9.94 mm
LITTELFUSE ZF UNTERTEIL

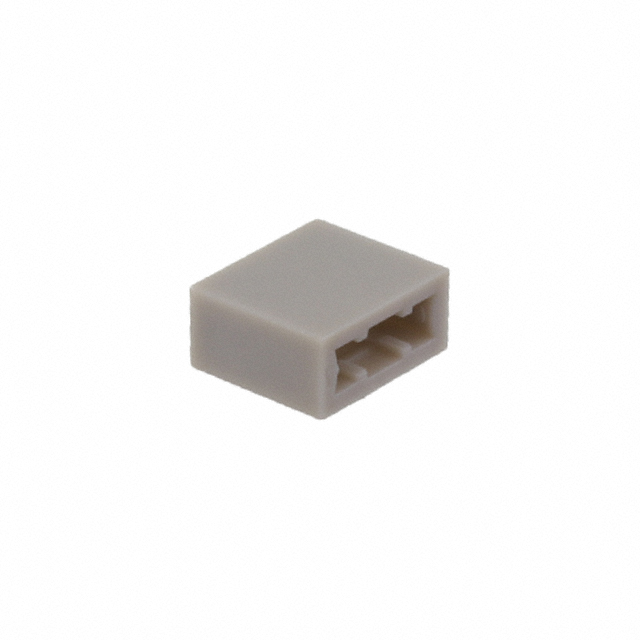

LITTELFUSE F1404				Snap Fit										Pushbutton	Non-Illuminated	5.51 mm	11.05 mm	11.94 mm	Rectangular	F Series	Gray Light
LITTELFUSE F01010112				Snap Fit										Pushbutton	Non-Illuminated	8.43 mm	17.58 mm	17.2 mm	Rectangular	F Series	Orange
LITTELFUSE C0420																				F Series			Chassis
