PTGL7SAS Series
Manufacturer: Murata Electronics
Beta
⌘K

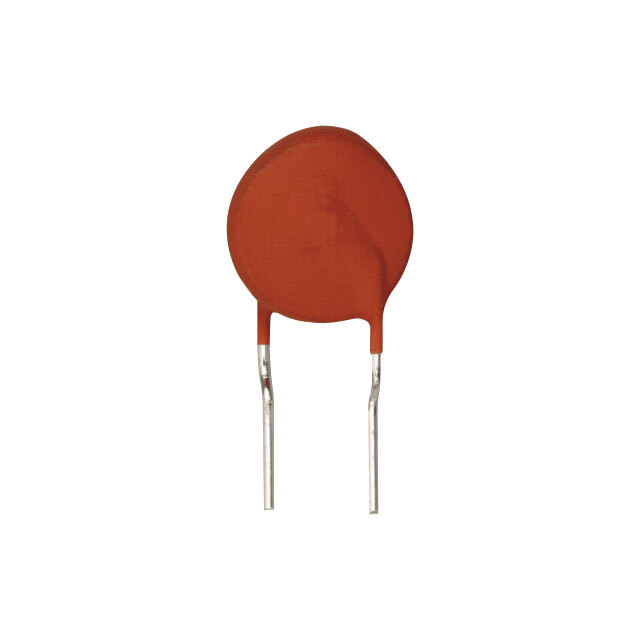

THERMISTOR PTC 3.3 OHM 10% 2-PIN RADIAL AMMO
| Part | Resistance - 25°C (Typ) | Voltage - Max | Type | Operating Temperature (Min) | Operating Temperature (Max) | Current - Max | Size / Dimension Diameter | Size / Dimension Thickness | Current - Trip (It) | Height - Seated (Max) | Mounting Type | Current - Hold (Ih) (Max) | Package / Case | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 3.3 Ohms | 51 V | Ceramic | -30 °C | 125 °C | 3 A | 0.287 in | 0.138 in | 517 mA | 0.484 in | Through Hole | 389 mA | Disc Radial | 0.197 in |
