320665 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

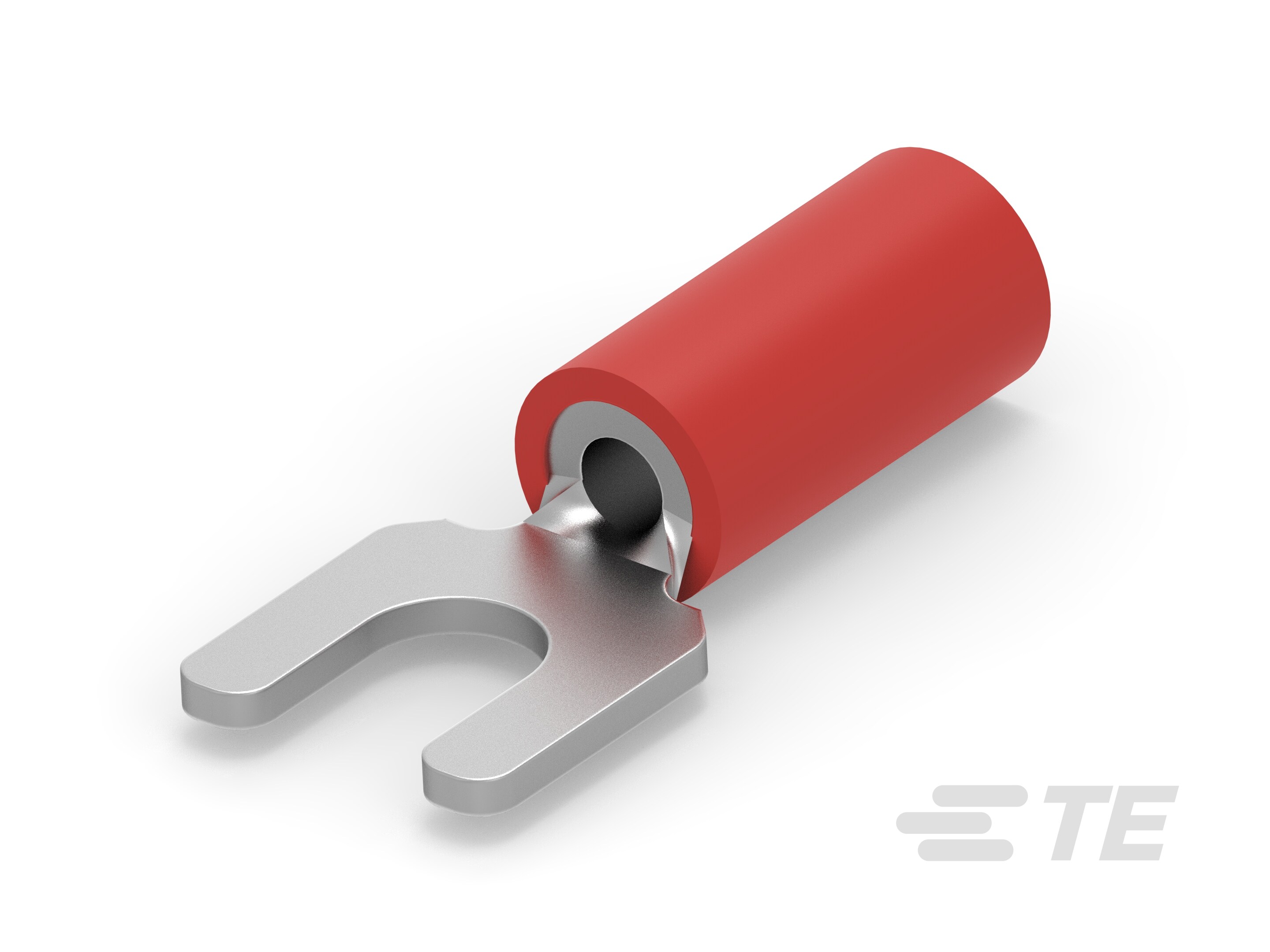

CONN SPADE TERM 16-22AWG #6 RED
| Part | Stud/Tab Size | Insulation | Width - Outer Edges | Features | Contact Material | Length - Overall | Termination | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Terminal Type | Mounting Type | Color | Length - Termination | Length - Ring Center to Termination | Tongue Inside Opening | Insulation Diameter (Min) | Insulation Diameter (Max) | Material - Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 6 Stud | Insulated | 0.297 in | Serrated Termination | Copper | 0.765 in | Crimp | 16 AWG | 22 AWG | Standard | Free Hanging (In-Line) | Red | 0.416 in | 0.203 in | 0.145 in | 0.105 in | 0.14 in | Poly-Vinyl Chloride PVC |
