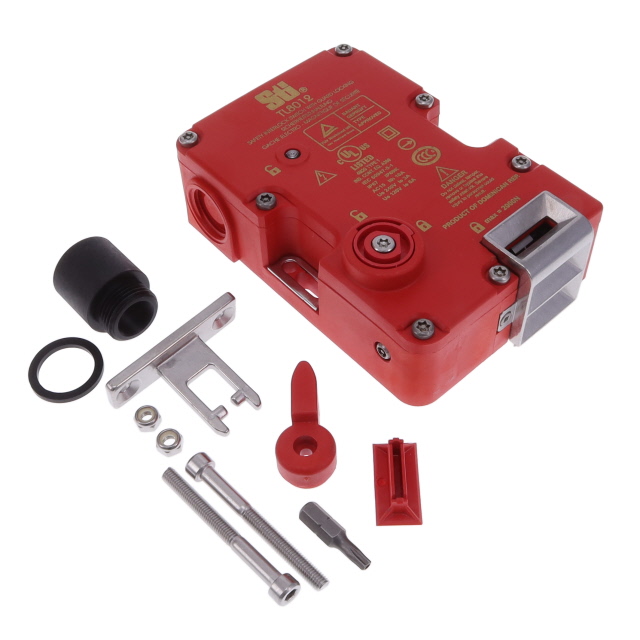

TL8012 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
INTERLOCK SOLENOID RELEASE 5PST
| Part | Actuator Type | Current Rating | Type | Voltage Rating (AC) | Voltage Rating (DC) | Conduit Thread Diameter | Conduit Thread Pitch | Circuit | Voltage - Supply (Option 1) | Voltage - Supply | Voltage - Supply (Option 2) | Holding Force | Termination Style | Operating Temperature (Max) | Operating Temperature (Min) | Approval Agency | Ingress Protection Description | Ingress Protection IP Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | Panel Disconnect | 2 A 5 A | Solenoid Release | 100 VAC | 24 VDC | 20 mm | 3 mm | 5PST-3NC/2NO | 24 VAC | 24 VDC | 24 DC | 204 kgf | Screw Terminal | 60 °C | -20 °C | CE cULus | Dust Tight Waterproof | IP67 |
Omron Automation and Safety | Panel Disconnect | 2 A 5 A | Solenoid Release | 100 VAC | 24 VDC | 20 mm | 3 mm | 5PST-4NC/1NO | 110 VAC | 204 kgf | Screw Terminal | 60 °C | -20 °C | CE cULus | Dust Tight Waterproof | IP67 | ||
Omron Automation and Safety | Panel Disconnect | 2 A 5 A | Solenoid Release | 100 VAC | 24 VDC | 20 mm | 3 mm | 5PST-4NC/1NO | 24 VAC | 24 VDC | 24 DC | 204 kgf | Screw Terminal | 60 °C | -20 °C | CE cULus | Dust Tight Waterproof | IP67 |
Omron Automation and Safety | Panel Disconnect | 2 A 5 A | Solenoid Release | 100 VAC | 24 VDC | 20 mm | 3 mm | 5PST-3NC/2NO | 220 VAC | 204 kgf | Screw Terminal | 60 °C | -20 °C | CE cULus | Dust Tight Waterproof | IP67 | ||
Omron Automation and Safety | Panel Disconnect | 2 A 5 A | Solenoid Release | 100 VAC | 24 VDC | 20 mm | 3 mm | 5PST-3NC/2NO | 220 VAC | 204 kgf | Screw Terminal | 60 °C | -20 °C | CE cULus | Dust Tight Waterproof | IP67 | ||
Omron Automation and Safety | Panel Disconnect | 2 A 5 A | Solenoid Locking | 100 VAC | 24 VDC | 20 mm | 3 mm | 5PST-3NC/2NO | 110 VAC | 204 kgf | Screw Terminal | 60 °C | -20 °C | CE cULus | Dust Tight Waterproof | IP67 | ||
 Omron Automation and Safety | Panel Disconnect | 2 A 5 A | Solenoid Release | 100 VAC | 24 VDC | 20 mm | 3 mm | 5PST-3NC/2NO | 24 VAC | 24 VDC | 24 DC | 204 kgf | Screw Terminal | 60 °C | -20 °C | CE cULus | Dust Tight Waterproof | IP67 |
Omron Automation and Safety | Panel Disconnect | 2 A 5 A | Solenoid Release | 100 VAC | 24 VDC | 20 mm | 3 mm | 5PST-3NC/2NO | 24 VAC | 24 VDC | 24 DC | 204 kgf | Screw Terminal | 60 °C | -20 °C | CE cULus | Dust Tight Waterproof | IP67 |
Omron Automation and Safety | Panel Disconnect | 2 A 5 A | Solenoid Release | 100 VAC | 24 VDC | 20 mm | 3 mm | 5PST-3NC/2NO | 220 VAC | 204 kgf | Screw Terminal | 60 °C | -20 °C | CE cULus | Dust Tight Waterproof | IP67 | ||
Omron Automation and Safety | Panel Disconnect | 2 A 5 A | Solenoid Release | 100 VAC | 24 VDC | 20 mm | 3 mm | 5PST-3NC/2NO | 110 VAC | 204 kgf | Screw Terminal | 60 °C | -20 °C | CE cULus | Dust Tight Waterproof | IP67 |
