413990 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

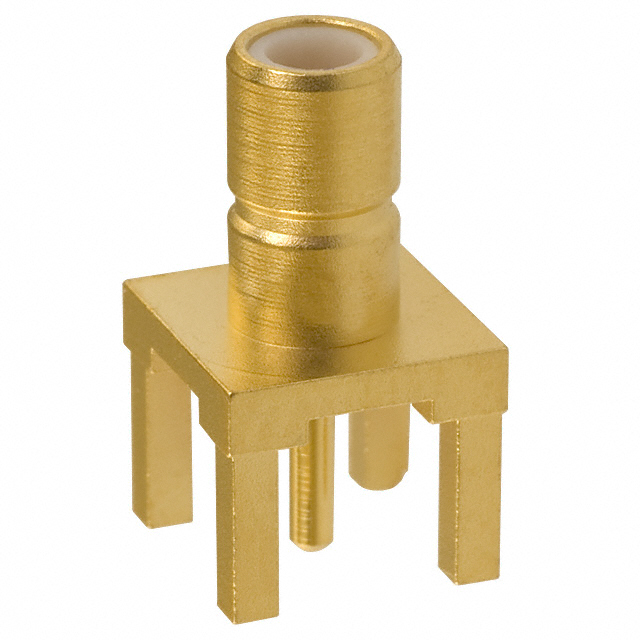

CONN SMB RCPT STR 50 OHM PCB
| Part | Body Finish | Voltage Rating | Center Contact Plating | Dielectric Material | Mating Cycles | Operating Temperature (Min) | Operating Temperature (Max) | Insertion Loss | Body Material | Housing Color | Center Contact Material | Impedance | Shield Termination | Mounting Type | Number of Ports | Fastening Type | Contact Termination | Connector Type | Frequency - Max | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Gold | 335 V | Gold | Polytetrafluoroethylene (PTFE) | 500 cycles | -65 °C | 165 °C | 0.3 dB | Brass | Gold | Brass | 50 Ohm | Solder | Through Hole | 1 | Snap-On | Solder | Male Pin Receptacle | 4 GHz | SMB |
 TE Connectivity AMP Connectors | Gold | 335 V | Gold | Polytetrafluoroethylene (PTFE) | 500 cycles | -65 °C | 165 °C | 0.3 dB | Brass | Gold | Brass | 50 Ohm | Solder | Through Hole | 1 | Snap-On | Solder | Male Pin Receptacle | 4 GHz | SMB |
