531353 Series

Catalog

CONN EDGE DUAL FML 24POS 0.312

Part	Material - Insulation	Contact Finish Thickness	Color	Operating Temperature (Min)	Operating Temperature (Max)	Read Out	Card Thickness	Pitch	Contact Finish	Termination	Contact Material	Flange Feature Diameter	Flange Feature	Mounting Type	Gender	Card Type	Number of Rows	Number of Positions	Position Types

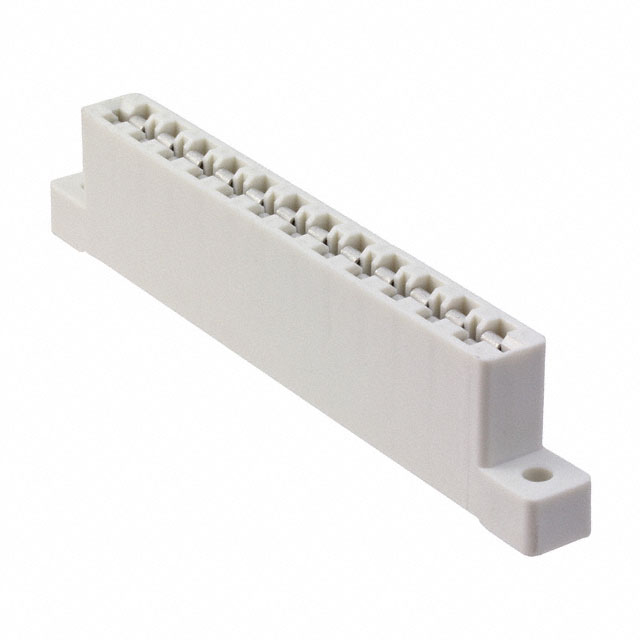

TE Connectivity AMP Connectors 5-531353-9	Glass Filled Polyester	15 µin	Natural	-40 °C	95 °C	Single	0.062 in	0.312 in	Tin	Solder	Copper Alloy	0.156 in	Flush Mount Top Opening Unthreaded	Panel Mount	Female	Dual Edge Non Specified	2	24 pos	Power
TE Connectivity AMP Connectors 531353-6	Glass Filled Polyester	15 µin	Natural	-40 °C	95 °C	Single	0.062 in	0.312 in	Tin	Solder	Copper Alloy	0.156 in	Flush Mount Top Opening Unthreaded	Panel Mount	Female	Dual Edge Non Specified	2	16	Power
TE Connectivity AMP Connectors 531353-9	Glass Filled Polyester	15 µin	Natural	-40 °C	95 °C	Single	0.062 in	0.312 in	Tin	Solder	Copper Alloy	0.156 in	Flush Mount Top Opening Unthreaded	Panel Mount	Female	Dual Edge Non Specified	2	24 pos	Power
