643818 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 3.96 MM, 1 ROW, 7 CONTACTS, CABLE MOUNT

Part	Contact Type	Wire Gauge	Contact Finish	Mounting Type	Number of Rows	Features	Number of Positions	Cable Termination	Wire Type	Color	Connector Type	Pitch	Contact Finish Thickness	Fastening Type

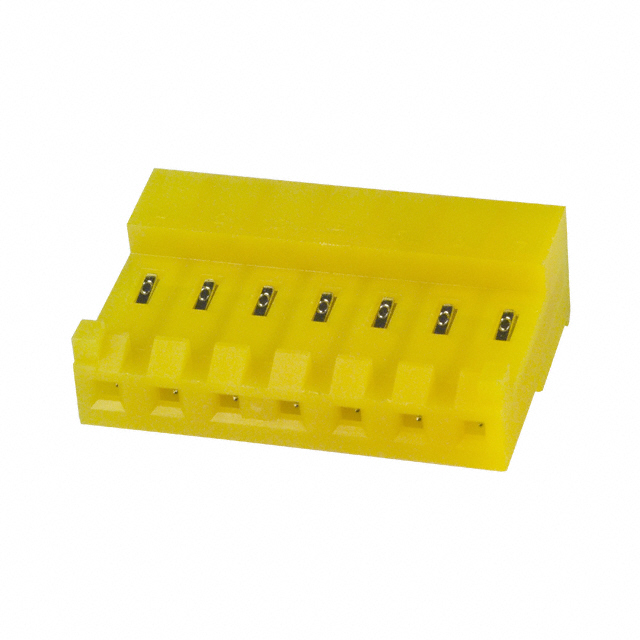

TE Connectivity AMP Connectors 3-643818-7	Female Socket	20 AWG	Tin	Free Hanging (In-Line)	1	Closed End Polarizing Key	7	IDC	Discrete Ribbon Cable	Yellow	Receptacle	0.156 in	80 µin	Locking Ramp
TE Connectivity AMP Connectors 643818-4	Female Socket	20 AWG	Tin-Lead	Free Hanging (In-Line)	1	Closed End Polarizing Key	4	IDC	Discrete Ribbon Cable	Yellow	Receptacle	0.156 in	80 µin	Locking Ramp
TE Connectivity AMP Connectors 3-643818-4	Female Socket	20 AWG	Tin	Free Hanging (In-Line)	1	Closed End Polarizing Key	4	IDC	Discrete Ribbon Cable	Yellow	Receptacle	0.156 in	80 µin	Locking Ramp
TE Connectivity AMP Connectors 3-643818-2	Female Socket	20 AWG	Tin	Free Hanging (In-Line)	1	Closed End Polarizing Key	2	IDC	Discrete Ribbon Cable	Yellow	Receptacle	0.156 in	80 µin	Locking Ramp
TE Connectivity AMP Connectors 643818-7	Female Socket	20 AWG	Tin-Lead	Free Hanging (In-Line)	1	Closed End Polarizing Key	7	IDC	Discrete Ribbon Cable	Yellow	Receptacle	0.156 in	80 µin	Locking Ramp

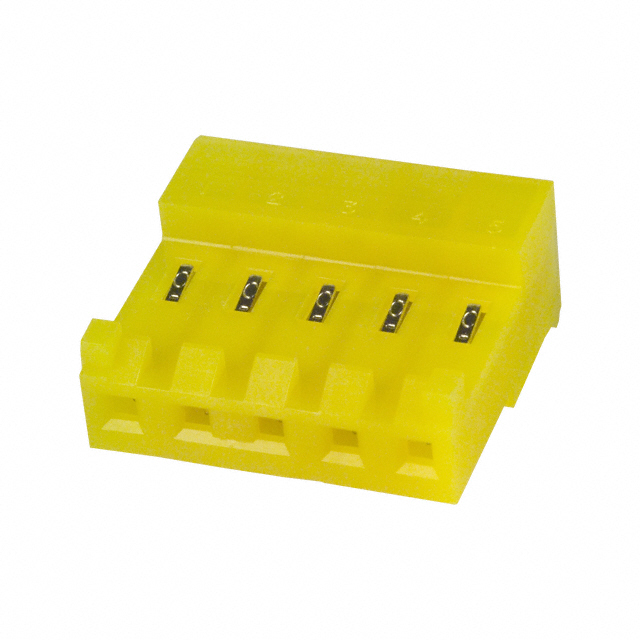

TE Connectivity AMP Connectors 643818-5	Female Socket	20 AWG	Tin-Lead	Free Hanging (In-Line)	1	Closed End Polarizing Key	5	IDC	Discrete Ribbon Cable	Yellow	Receptacle	0.156 in	80 µin	Locking Ramp

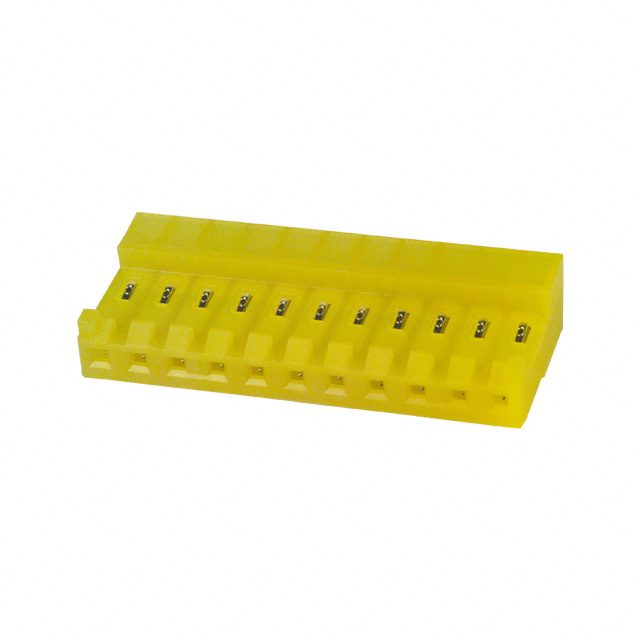

TE Connectivity AMP Connectors 1-643818-1	Female Socket	20 AWG	Tin-Lead	Free Hanging (In-Line)	1	Closed End Polarizing Key	11	IDC	Discrete Ribbon Cable	Yellow	Receptacle	0.156 in	80 µin	Locking Ramp
TE Connectivity AMP Connectors 3-643818-6	Female Socket	20 AWG	Tin	Free Hanging (In-Line)	1	Closed End Polarizing Key	6	IDC	Discrete Ribbon Cable	Yellow	Receptacle	0.156 in	80 µin	Locking Ramp
TE Connectivity AMP Connectors 3-643818-3	Female Socket	20 AWG	Tin	Free Hanging (In-Line)	1	Closed End Polarizing Key	3	IDC	Discrete Ribbon Cable	Yellow	Receptacle	0.156 in	80 µin	Locking Ramp
TE Connectivity AMP Connectors 4-643818-5	Female Socket	20 AWG	Tin	Free Hanging (In-Line)	1	Closed End Polarizing Key	15	IDC	Discrete Ribbon Cable	Yellow	Receptacle	0.156 in	80 µin	Locking Ramp
