206997 Series

Manufacturer: Molex

Catalog

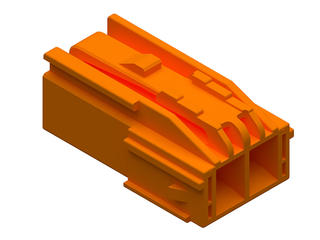

CP-4.5 PLUG HOUSING, 4.50MM PITCH, DUAL ROW, 2 CIRCUITS, ORANGE, GLOW-WIRE CAPABLE

Part	Note	Contact Termination	Contact Type	Connector Type	Fastening Type	Color	Mounting Type	Insulation Material	Number of Rows	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Pitch	Row Spacing
Molex 2069972200	Contacts Not Included	Crimp	Male Pin	Plug	Latch Lock	Orange	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)	1	120 °C	-40 °C	2	0.177 in

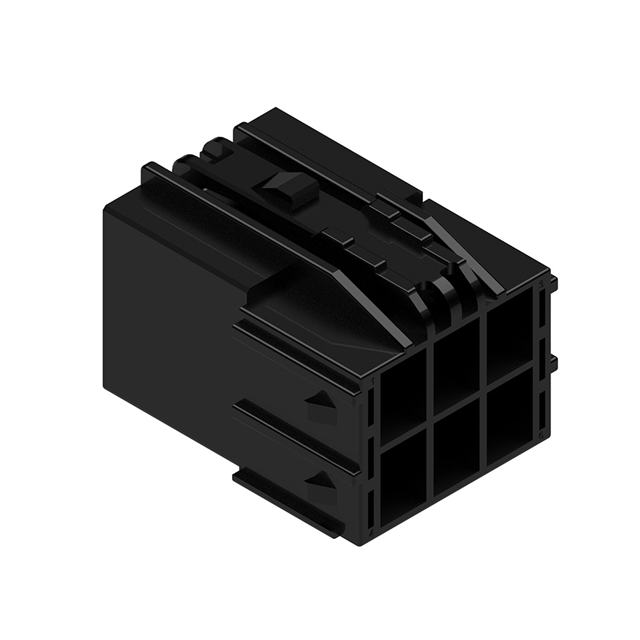

Molex 2069972606	Contacts Not Included	Crimp	Male Pin	Plug	Latch Lock	Black	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)	2	120 °C	-40 °C	6	0.177 in	0.232 in

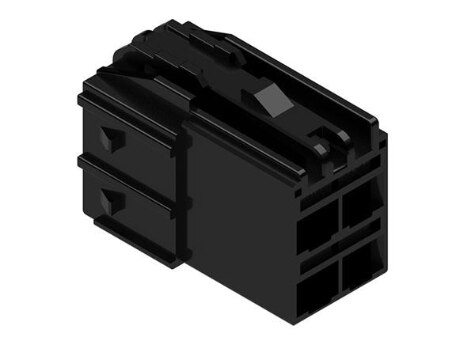

Molex 2069972406	Contacts Not Included	Crimp	Male Pin	Plug	Latch Lock	Black	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)	2	120 °C	-40 °C	4	0.177 in	0.232 in

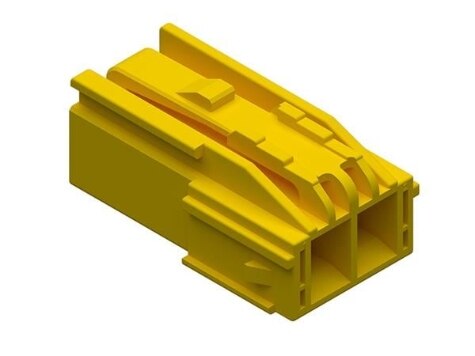

Molex 2069972203	Contacts Not Included	Crimp	Male Pin	Plug	Latch Lock	Yellow	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)	1	120 °C	-40 °C	2	0.177 in

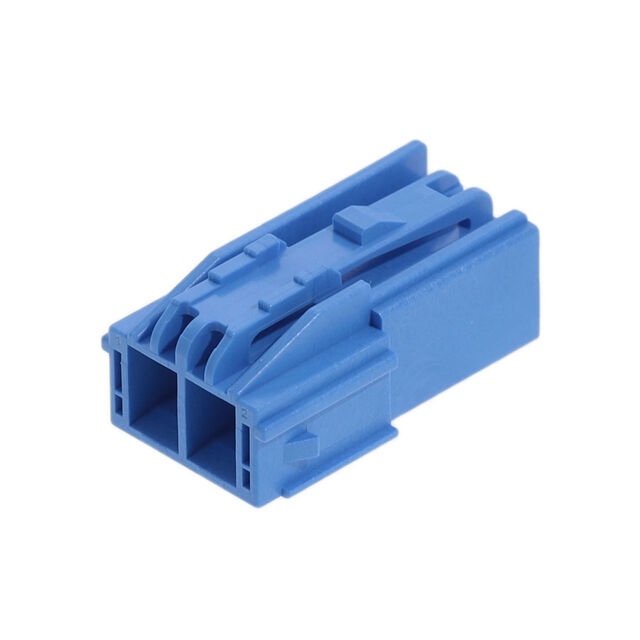

Molex 2069972201	Contacts Not Included	Crimp	Male Pin	Plug	Latch Lock	Blue	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)	1	120 °C	-40 °C	2	0.177 in

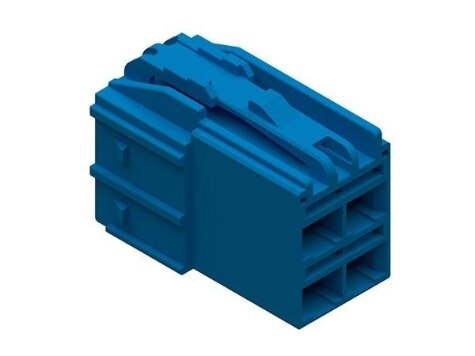

Molex 2069972401	Contacts Not Included	Crimp	Male Pin	Plug	Latch Lock	Blue	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)	2	120 °C	-40 °C	4	0.177 in	0.232 in

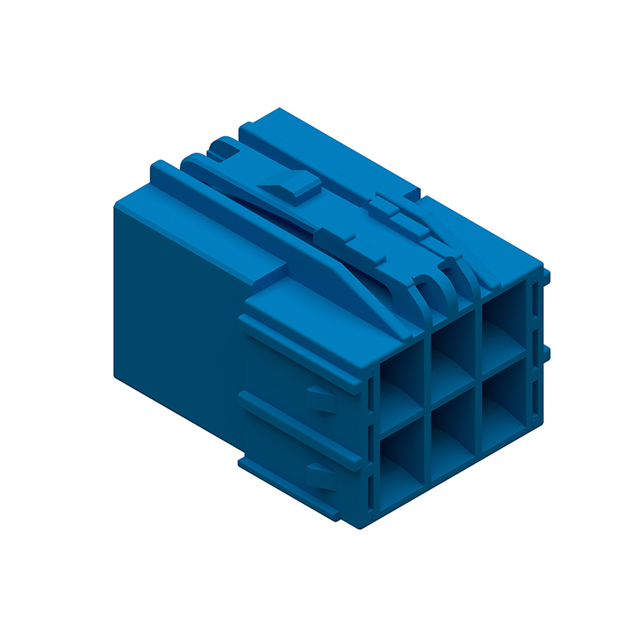

Molex 2069972601	Contacts Not Included	Crimp	Male Pin	Plug	Latch Lock	Blue	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)	2	120 °C	-40 °C	6	0.177 in	0.232 in
Molex 2069972206	Contacts Not Included	Crimp	Male Pin	Plug	Latch Lock	Black	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)	1	120 °C	-40 °C	2	0.177 in

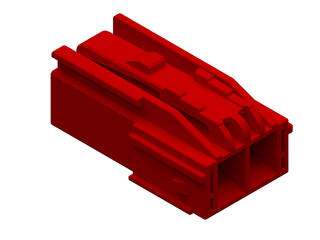

Molex 2069972209	Contacts Not Included	Crimp	Male Pin	Plug	Latch Lock	Red	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)	1	120 °C	-40 °C	2	0.177 in

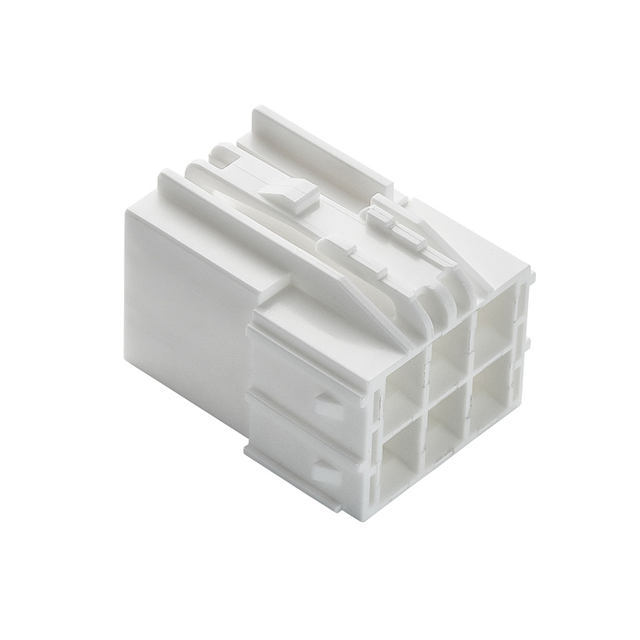

Molex 2069972611	Contacts Not Included	Crimp	Male Pin	Plug	Latch Lock	Natural	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)	2	120 °C	-40 °C	6	0.177 in	0.232 in
