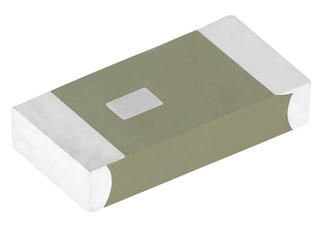

WiFi6E Tri Band 2.4/5/6GHz SMT Ceramic Chip Antenna, Corner Mount
WiFi6E Tri Band 2.4/5/6GHz SMT Ceramic Chip Antenna, Corner Mount
| Part | Number of Bands | Frequency Range (Band 2) Minimum | Frequency Range (Band 1) Maximum | Frequency Range (Band 2) Maximum | Frequency Range (Band 1) Minimum | Return Loss | Return Loss | Height (Max) | RF Family/Standard | Antenna Type | Mounting Type | Frequency (Center) | Frequency (Band) | Applications | Frequency Group Minimum (SHF) | Frequency Group | Frequency Group Maximum (UHF) | Frequency Group Minimum (UHF) | Termination | Gain |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 2 | 5.15 GHz | 2.5 GHz | 5.85 GHz | 2.4 GHz | -10dB -7dB | -10 dB -7 dB | 0.026 in | 802.15.4 Bluetooth WiFi | Chip | Surface Mount | 2.45 GHz | 5.5 GHz | Bluetooth Wi-Fi Zigbee™ | 4 GHz | SHF UHF | 3 GHz | 2 GHz | Solder | 1.7 dBi 1.8 dBi 1.9 dBi |
