53004 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

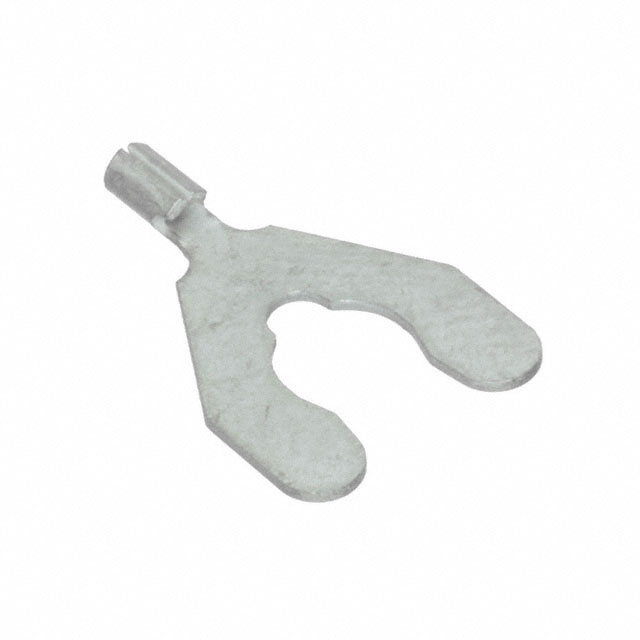

CONN SPADE TERM 22-26AWG #8
| Part | Length - Ring Center to Termination | Length - Termination | Mounting Type | Termination | Stud/Tab Size | Width - Outer Edges | Contact Finish | Length - Overall | Contact Material | Terminal Type | Insulation | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.281 in | 0.135 in | Free Hanging (In-Line) | Crimp | 8 Stud | 0.375 in | Tin | 0.591 in | Phosphor Bronze | Snap Spring | Non-Insulated | 26 AWG | 22 AWG |
