Catalog
FUS 600V T/D CLASS RK5 70A
Description
AI

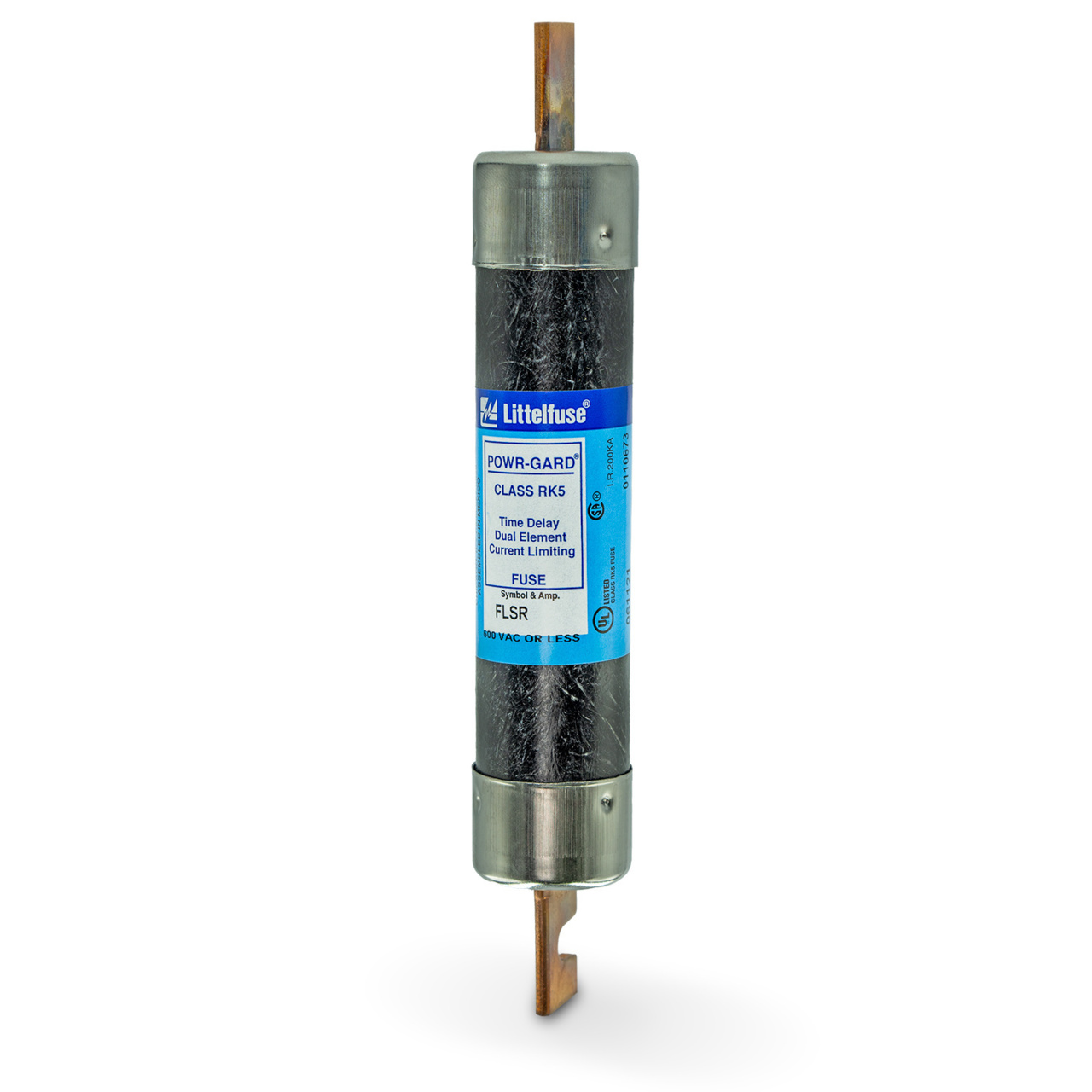

FLSR070 is a Class RK5 fuse with an ampere rating of 70 and knife-blade-style construction.
Beta
⌘K
FUS 600V T/D CLASS RK5 70A
FUS 600V T/D CLASS RK5 70A
| Part | Applications | Approval Agency | Voltage Rating - AC | Current Rating | Mounting Type | Voltage Rating - DC | Package / Case | Class | Breaking Capacity (AC) | Breaking Capacity (DC) | Response Time | Size / Dimension Length | Size / Dimension Diameter | Fuse Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | Electrical Industrial | CE CSA QPL UL | 600 VAC | 70 A | Requires Holder | 300 V | Blade Terminals Cylindrical | RK5 | 200 kA | 20 kA | Slow Blow | 7.874 in | 1.311 in | Cartridge |
