176153 Series

Catalog

EIS POST HDR ASSY H 3P GOLD ROHS COMPLIANT: YES

Part	Contact Length - Post	Mounting Type	Contact Shape	Connector Type	Style	Contact Length - Mating	Material Flammability Rating	Termination	Number of Rows	Contact Type	Number of Positions Loaded	Number of Positions	Pitch - Mating	Contact Material	Voltage Rating (DC)	Voltage Rating (AC)	Shrouding	Insulation Color	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Current Rating	Current Rating	Insulation Height	Insulation Material	Applications
TE Connectivity AMP Connectors 176153-3	0.142 in	Right Angle Through Hole	Square	Header	Board Cable/Wire	0.295 in	UL94 V-0	Solder	1	Male Pin	All	3	0.098 in	Brass	350 VDC	250 VAC	Shrouded - 1 Wall	Natural	85 °C	-20 °C	Latch Holder	0 A	Varies by Wire Gauge	0.264 in	Nylon 6/6 Polyamide (PA66)	General Purpose

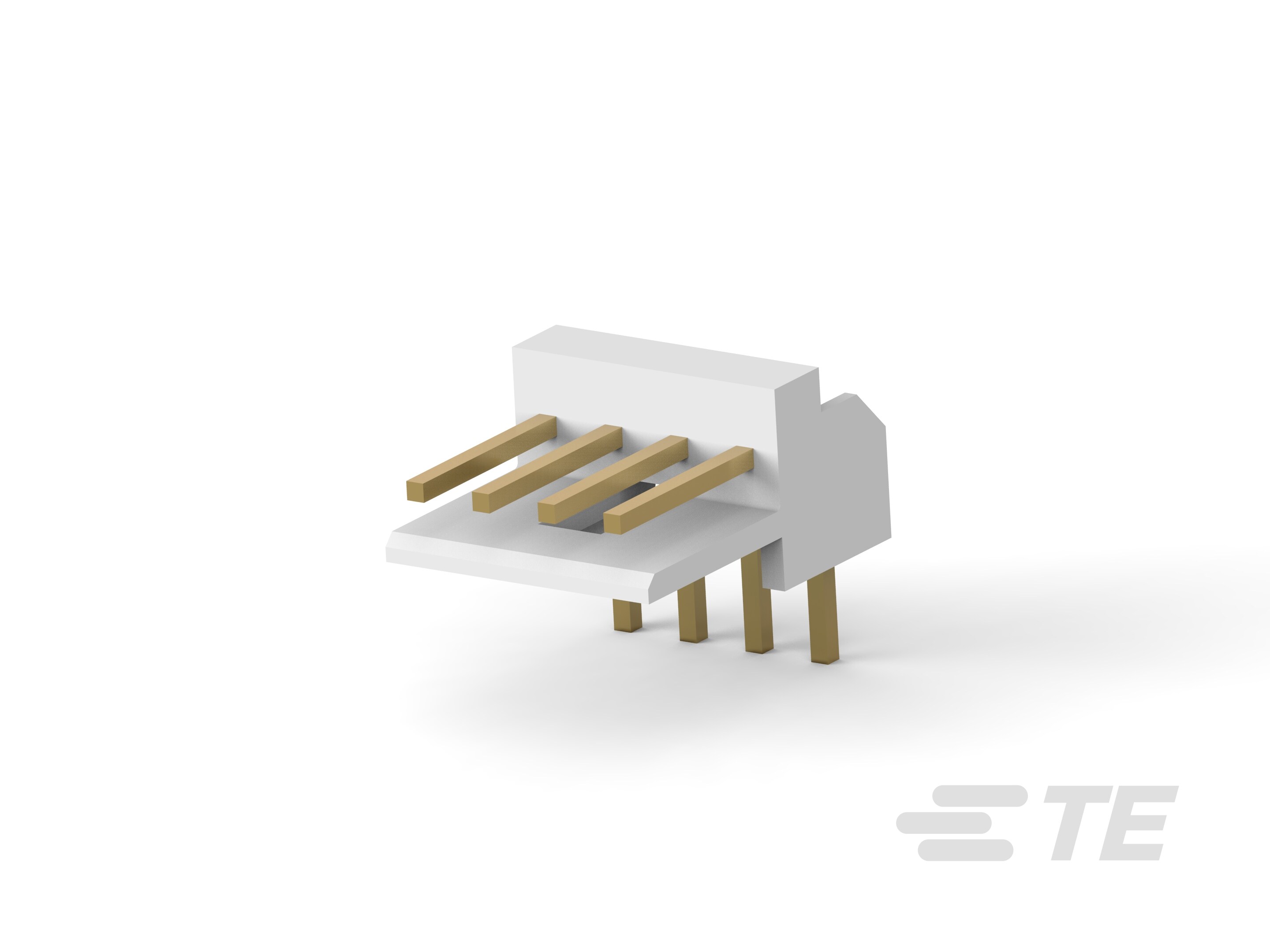

TE Connectivity AMP Connectors 176153-4	0.142 in	Right Angle Through Hole	Square	Header	Board Cable/Wire	0.295 in	UL94 V-0	Solder	1	Male Pin	All	4	0.098 in	Brass	350 VDC	250 VAC	Shrouded - 1 Wall	Natural	85 °C	-20 °C	Latch Holder	0 A	Varies by Wire Gauge	0.264 in	Nylon 6/6 Polyamide (PA66)	General Purpose
