A3CCB Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

IDC CABLE- AKC26B/AE26M/AKC26B

Part	Pitch - Connector	Pitch - Connector	Features	Number of Rows	Cable Termination	Connector Type	Pitch - Cable	Pitch - Cable	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Shielding	Length	Length	Length	Color	Length [x]	Length [x]
TE Connectivity Raychem Cable Protection A3CCB-2606M	0.1 in	2.54 mm	Polarizing Key	2	IDC	Socket to Socket	0.05 "	1.27 mm	Gold	26	0.76 Ám	30 Áin	Unshielded	152.4 mm	6 "	0.5 '	Multiple Ribbon
TE Connectivity Raychem Cable Protection A3CCB-2406G	0.1 in	2.54 mm	Polarizing Key	2	IDC	Socket to Socket	0.05 "	1.27 mm	Gold	24	0.76 Ám	30 Áin	Unshielded	152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A3CCB-1418G	0.1 in	2.54 mm	Polarizing Key	2	IDC	Socket to Socket	0.05 "	1.27 mm	Gold	14	0.76 Ám	30 Áin	Unshielded					457.2 mm	1.5 ft

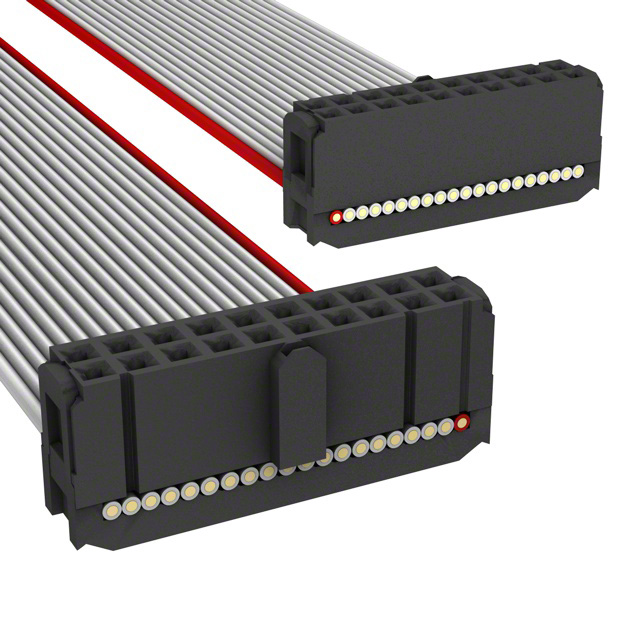

TE Connectivity Raychem Cable Protection A3CCB-2036G	0.1 in	2.54 mm	Polarizing Key	2	IDC	Socket to Socket	0.05 "	1.27 mm	Gold	20	0.76 Ám	30 Áin	Unshielded					914.4 mm	3 ft

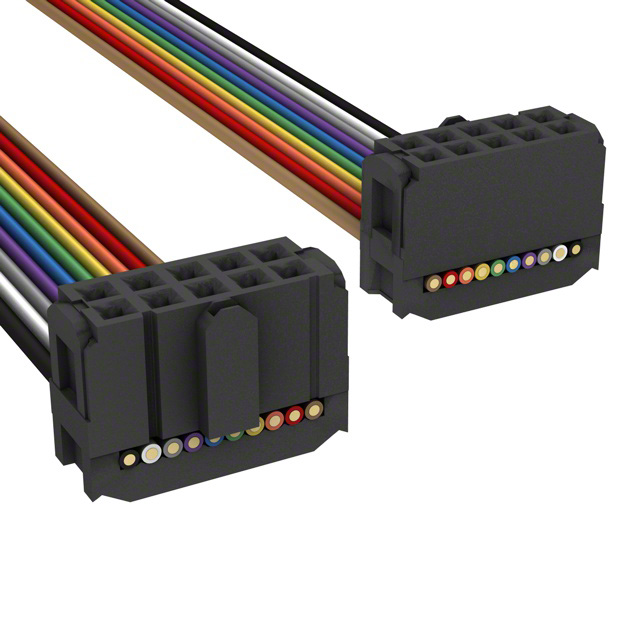

TE Connectivity Raychem Cable Protection A3CCB-1036M	0.1 in	2.54 mm	Polarizing Key	2	IDC	Socket to Socket	0.05 "	1.27 mm	Gold	10	0.76 Ám	30 Áin	Unshielded				Multiple Ribbon	914.4 mm	3 ft
TE Connectivity Raychem Cable Protection A3CCB-6418G	0.1 in	2.54 mm	Polarizing Key	2	IDC	Socket to Socket	0.05 "	1.27 mm	Gold	64	0.76 Ám	30 Áin	Unshielded					457.2 mm	1.5 ft
TE Connectivity Raychem Cable Protection A3CCB-1018G	0.1 in	2.54 mm	Polarizing Key	2	IDC	Socket to Socket	0.05 "	1.27 mm	Gold	10	0.76 Ám	30 Áin	Unshielded					457.2 mm	1.5 ft
TE Connectivity Raychem Cable Protection A3CCB-5018M	0.1 in	2.54 mm	Polarizing Key	2	IDC	Socket to Socket	0.05 "	1.27 mm	Gold	50	0.76 Ám	30 Áin	Unshielded				Multiple Ribbon	457.2 mm	1.5 ft
TE Connectivity Raychem Cable Protection A3CCB-5018G	0.1 in	2.54 mm	Polarizing Key	2	IDC	Socket to Socket	0.05 "	1.27 mm	Gold	50	0.76 Ám	30 Áin	Unshielded					457.2 mm	1.5 ft
TE Connectivity Raychem Cable Protection A3CCB-2406M	0.1 in	2.54 mm	Polarizing Key	2	IDC	Socket to Socket	0.05 "	1.27 mm	Gold	24	0.76 Ám	30 Áin	Unshielded	152.4 mm	6 "	0.5 '	Multiple Ribbon
