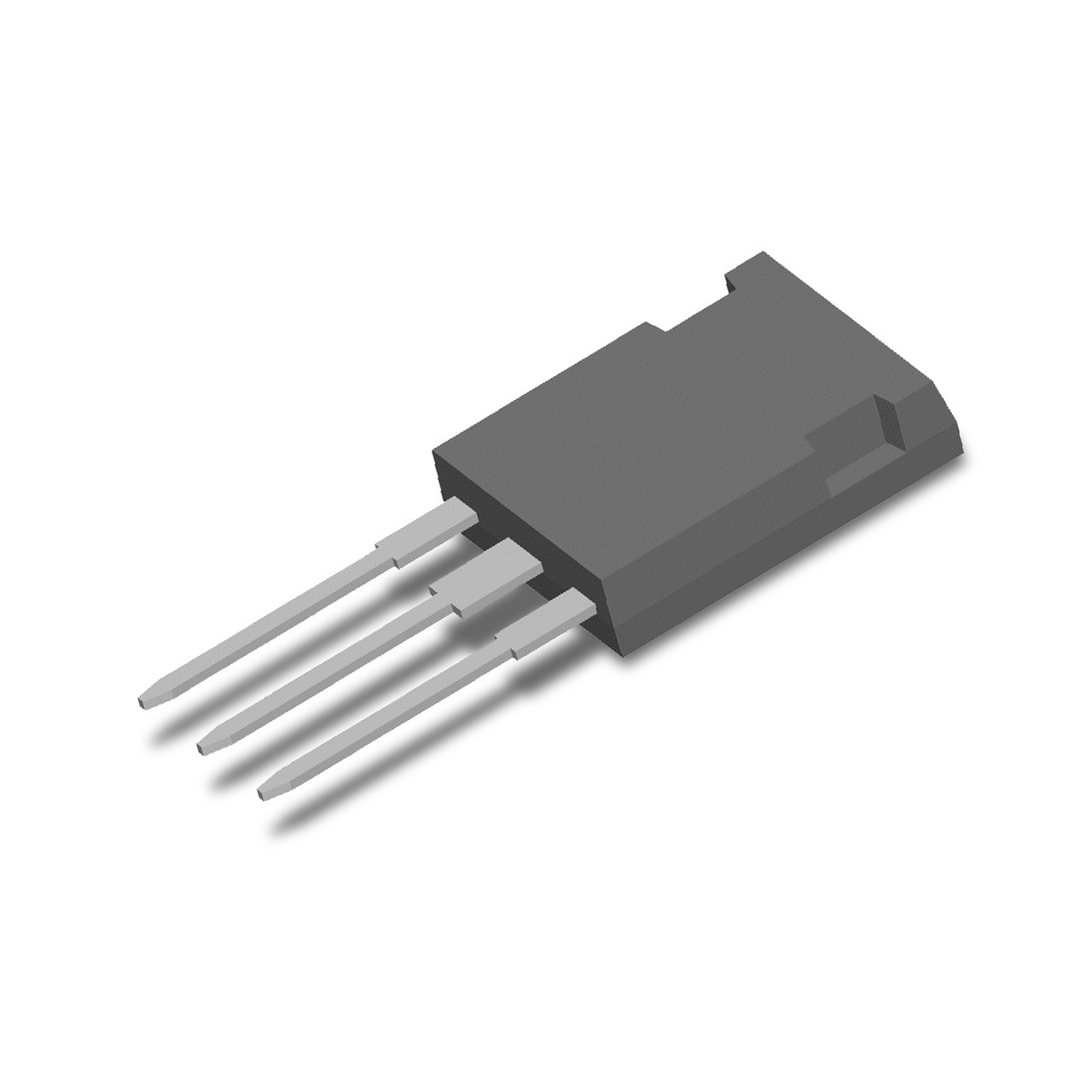

Disc IGBT XPT Gen4 1200V 110A PLUS247
Disc IGBT XPT Gen4 1200V 110A PLUS247
| Part | Current - Collector Pulsed (Icm) | Gate Charge | Td (on) @ 25°C | Td (off) @ 25°C | Test Condition Current | Test Condition Resistance | Test Condition Voltage | Test Condition Voltage (Secondary) | Mounting Type | Power - Max | Package Name | Voltage - Collector Emitter Breakdown (Max) | Package / Case | Current - Collector (Ic) (Max) | Reverse Recovery Time (trr) | Vce(on) (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Switching Energy (Off) | Switching Energy (On) | Input Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 800 A | 340 nC | 45 ns | 390 ns | 50 A | 2 Ohm | 600 V | 15 V | Through Hole | 1360 W | PLUS247™-3 | 1200 V | TO-247-3 Variant | 340 A | 50 ns | 2.1 V | -55 °C | 175 °C | 3.85 mJ | 3.6 mJ | Standard |
