5532447 Series

Catalog

ASSY,PIN,VERTICAL,HDI,LEAD-FREE,3ROW,W/O

Part	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Connector Style	Pitch	Mounting Type	Number of Positions	Contact Finish	Termination	Contact Finish Thickness	Color	Features	Connector Type	Number of Rows	Number of Positions Loaded

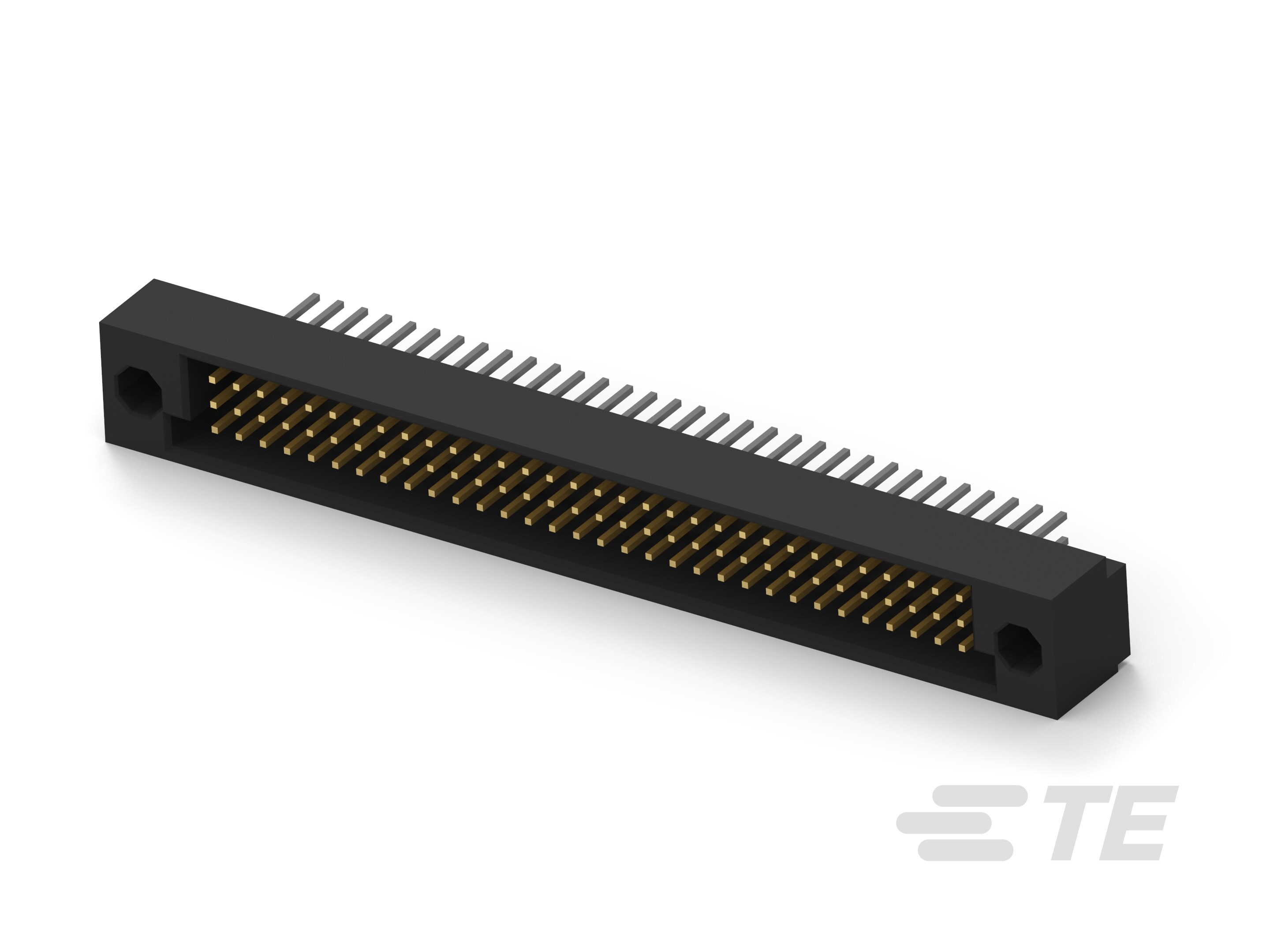

TE Connectivity AMP Connectors 5532447-3	UL94 V-0	125 °C	-65 °C	High Density (HDC HDI HPC)	0.1 in	Through Hole	96	Gold	Press-Fit	30 µin	Black	Mating Guide	Header Male Pins	3	All
TE Connectivity AMP Connectors 5532447-9	UL94 V-0	125 °C	-65 °C	High Density (HDC HDI HPC)	0.1 in	Through Hole	180	Gold	Press-Fit	30 µin	Black	Mating Guide	Header Male Pins	3	All

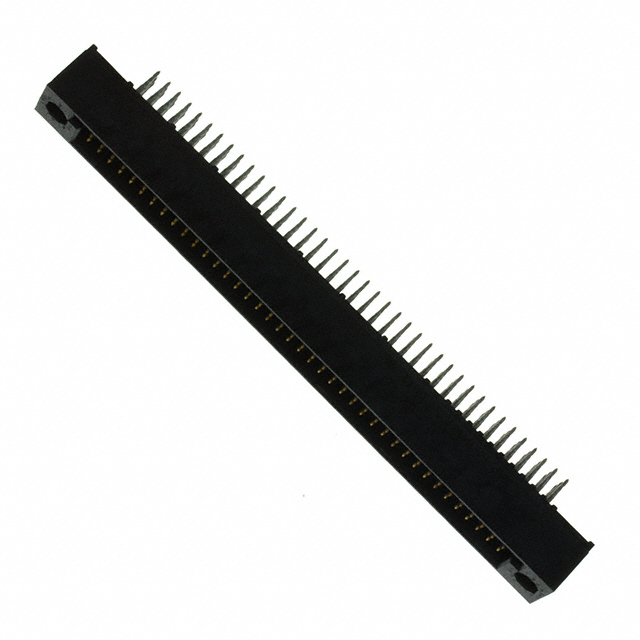

TE Connectivity AMP Connectors 5532447-5	UL94 V-0	125 °C	-65 °C	High Density (HDC HDI HPC)	0.1 in	Through Hole	120	Gold	Press-Fit	30 µin	Black	Mating Guide	Header Male Pins	3	All

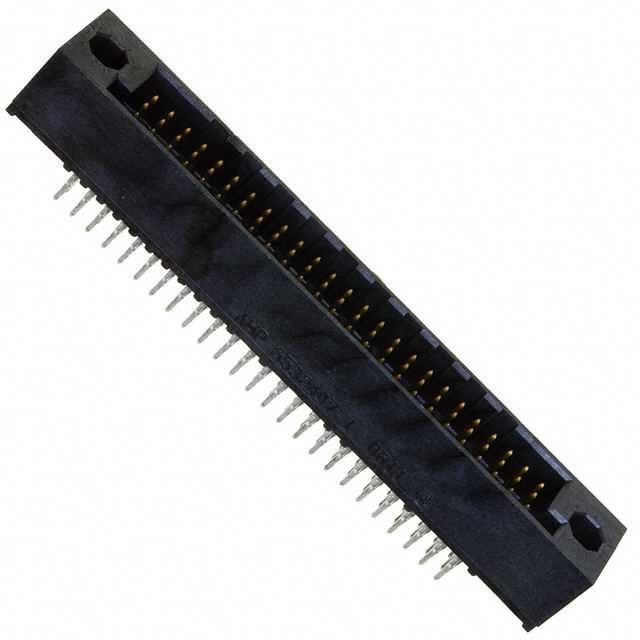

TE Connectivity AMP Connectors 5532447-1	UL94 V-0	125 °C	-65 °C	High Density (HDC HDI HPC)	0.1 in	Through Hole	75	Gold	Press-Fit	30 µin	Black	Mating Guide	Header Male Pins	3	All
