5747842 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

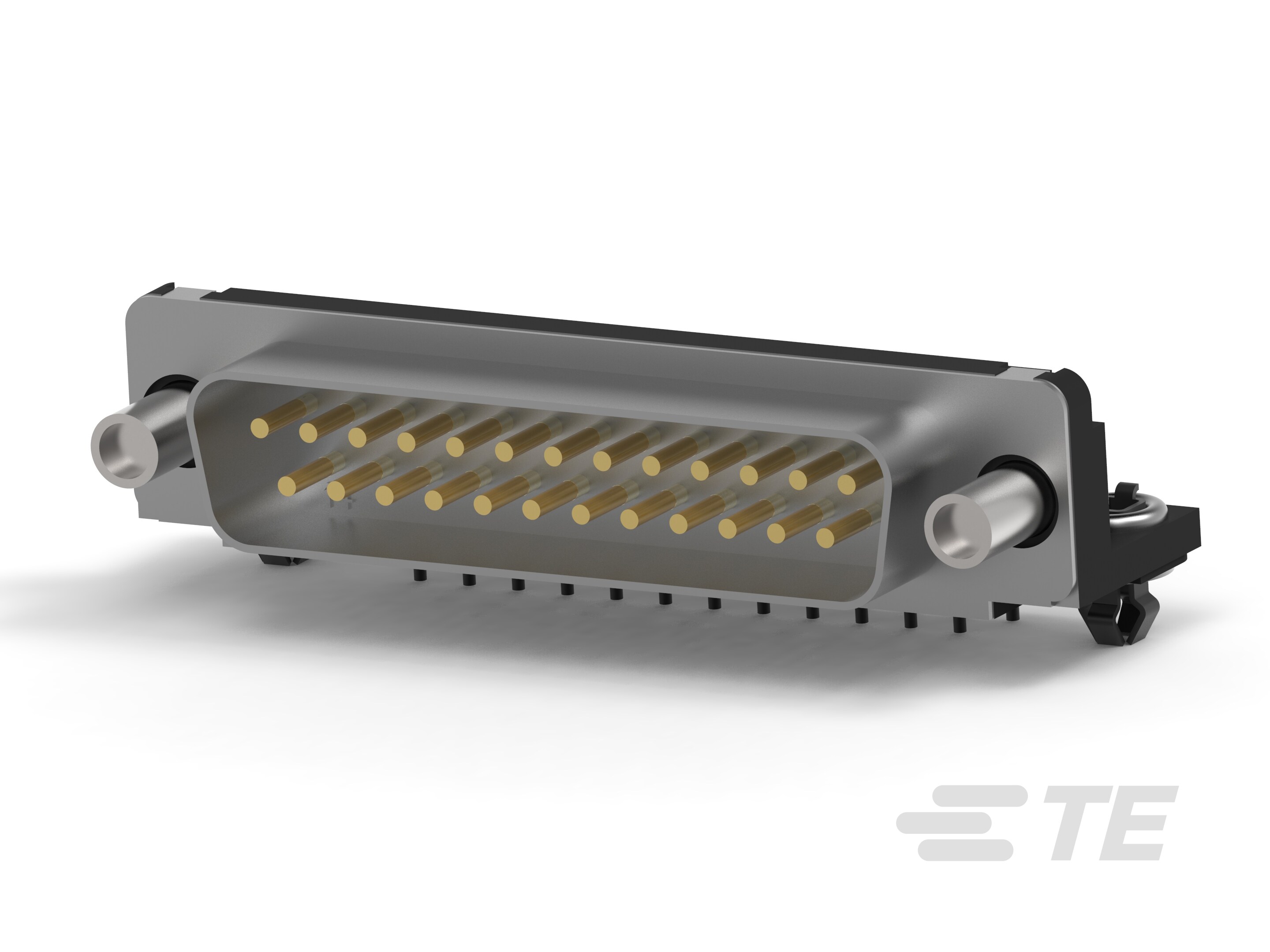

CONN D-SUB PLUG 25POS R/A SLDR
| Part | Number of Positions | Mounting Type | Connector Style | Termination | Connector Type | Contact Type | Material Flammability Rating | Contact Finish | Backset Spacing | Features | Finish | Shell Material | Current Rating | Number of Rows | Shell Size | Connector Layout | Flange Feature | Color | Operating Temperature (Min) | Operating Temperature (Max) | Voltage Rating | Contact Material | Contact Finish Thickness | Contact Finish Thickness (string set options) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 25 | Right Angle Through Hole | D-Sub | Solder | Male Pins Plug | Signal | UL94 V-0 | Gold | 0.318 in | Board Lock Ground Strap Grounding Indents | Tin Plated | Steel | 6 A | 2 | 3 | B DB | Housing Shell (Unthreaded) | Black | -55 °C | 105 °C | 125 V | Brass | |||
 TE Connectivity AMP Connectors | 25 | Right Angle Through Hole | D-Sub | Solder | Male Pins Plug | Signal | UL94 V-0 | Gold | 0.318 in | Board Lock Ground Strap Grounding Indents | Tin Plated | Steel | 6 A | 2 | 3 | B DB | Housing Shell (4-40) | Black | -55 °C | 105 °C | 125 V | Brass | |||
 TE Connectivity AMP Connectors | 25 | Right Angle Through Hole | D-Sub | Solder | Male Pins Plug | Signal | UL94 V-0 | Gold | 0.318 in | Board Lock Ground Strap Grounding Indents | Tin Plated | Steel | 6 A | 2 | 3 | B DB | Female Screwlock (4-40) Mating Side | Black | -55 °C | 105 °C | 125 V | Brass | |||
 TE Connectivity AMP Connectors | 25 | Right Angle Through Hole | D-Sub | Solder | Male Pins Plug | Signal | UL94 V-0 | Gold | 0.318 in | Board Lock Ground Strap Grounding Indents | Tin Plated | Steel | 6 A | 2 | 3 | B DB | Housing Shell (4-40) | Black | -55 °C | 105 °C | 125 V | Brass | 0 | Flash | Flash |
