284518 Series

Catalog

TERM BLOCK HDR 2POS VERT 3.81MM

Part	Pitch	Features	Operating Temperature (Min)	Operating Temperature (Max)	Contact Mating Finish	Number of Positions	Current - UL	Header Orientation	Mounting Type	Number of Levels	Voltage - UL	Color	Termination Style	Type	Positions Per Level	Contact Material	Material Flammability Rating	Insulation Height	Housing Material	Contact Tail Length
TE Connectivity AMP Connectors 284518-2	0.15 in	Interlocking (Side)	-40 °C	110 °C	Tin	2	11 A	Vertical	Through Hole	1	300 V	Green	Solder	Header Male Pins Shrouded (2 Side)	2	Phosphor Bronze	UL94 V-0	0.362 in	Nylon 6/6 PA66 Polyamide	0.134 in

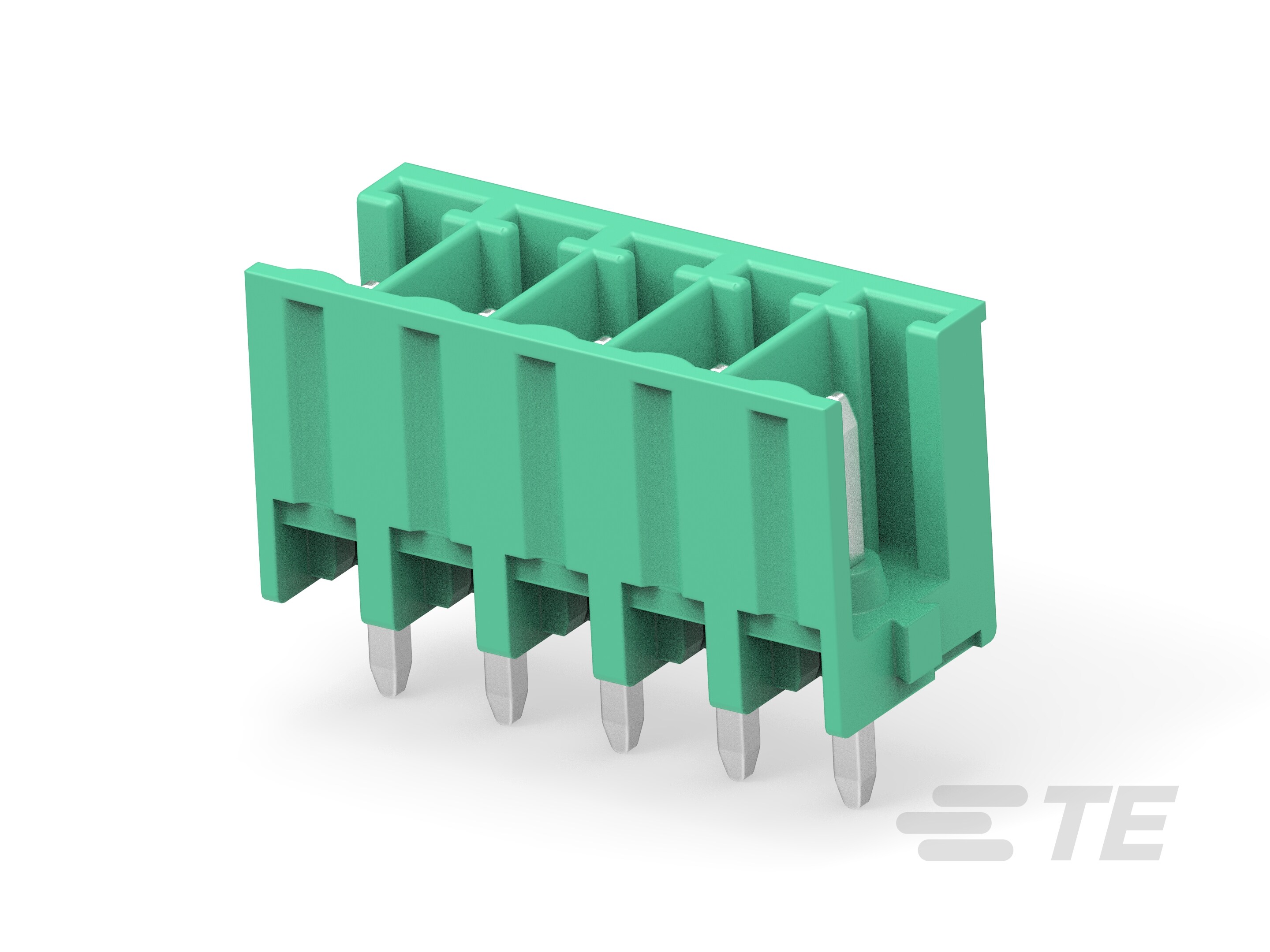

TE Connectivity AMP Connectors 284518-5	0.15 in	Interlocking (Side)	-40 °C	110 °C	Tin	5	11 A	Vertical	Through Hole	1	300 V	Green	Solder	Header Male Pins Shrouded (2 Side)	5	Phosphor Bronze	UL94 V-0	0.362 in	Nylon 6/6 PA66 Polyamide	0.134 in
TE Connectivity AMP Connectors 284518-6	0.15 in	Interlocking (Side)	-40 °C	110 °C	Tin	6	11 A	Vertical	Through Hole	1	300 V	Green	Solder	Header Male Pins Shrouded (2 Side)	6	Phosphor Bronze	UL94 V-0	0.362 in	Nylon 6/6 PA66 Polyamide	0.134 in

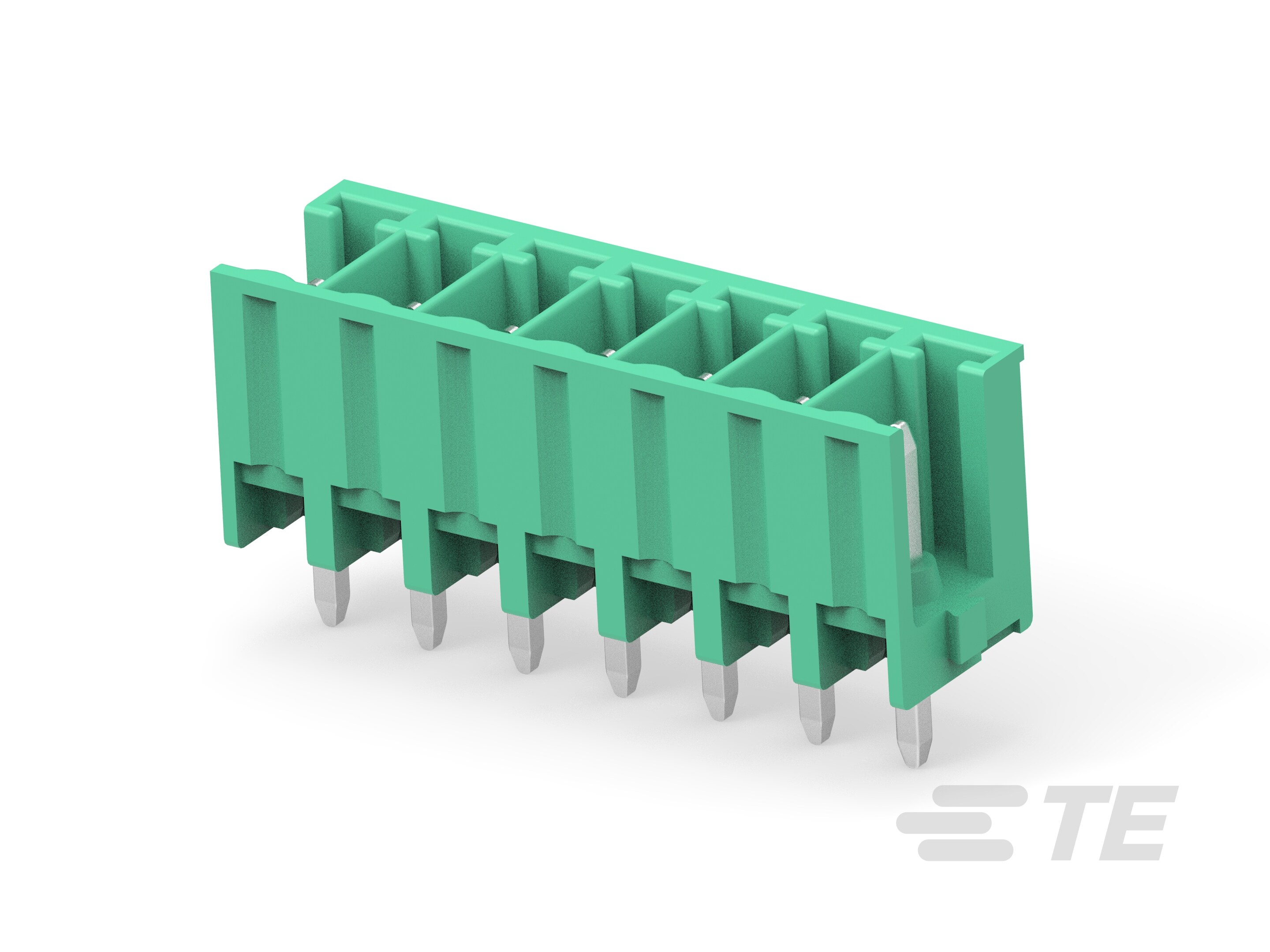

TE Connectivity AMP Connectors 284518-7	0.15 in	Interlocking (Side)	-40 °C	110 °C	Tin	7	11 A	Vertical	Through Hole	1	300 V	Green	Solder	Header Male Pins Shrouded (2 Side)	7	Phosphor Bronze	UL94 V-0	0.362 in	Nylon 6/6 PA66 Polyamide	0.134 in

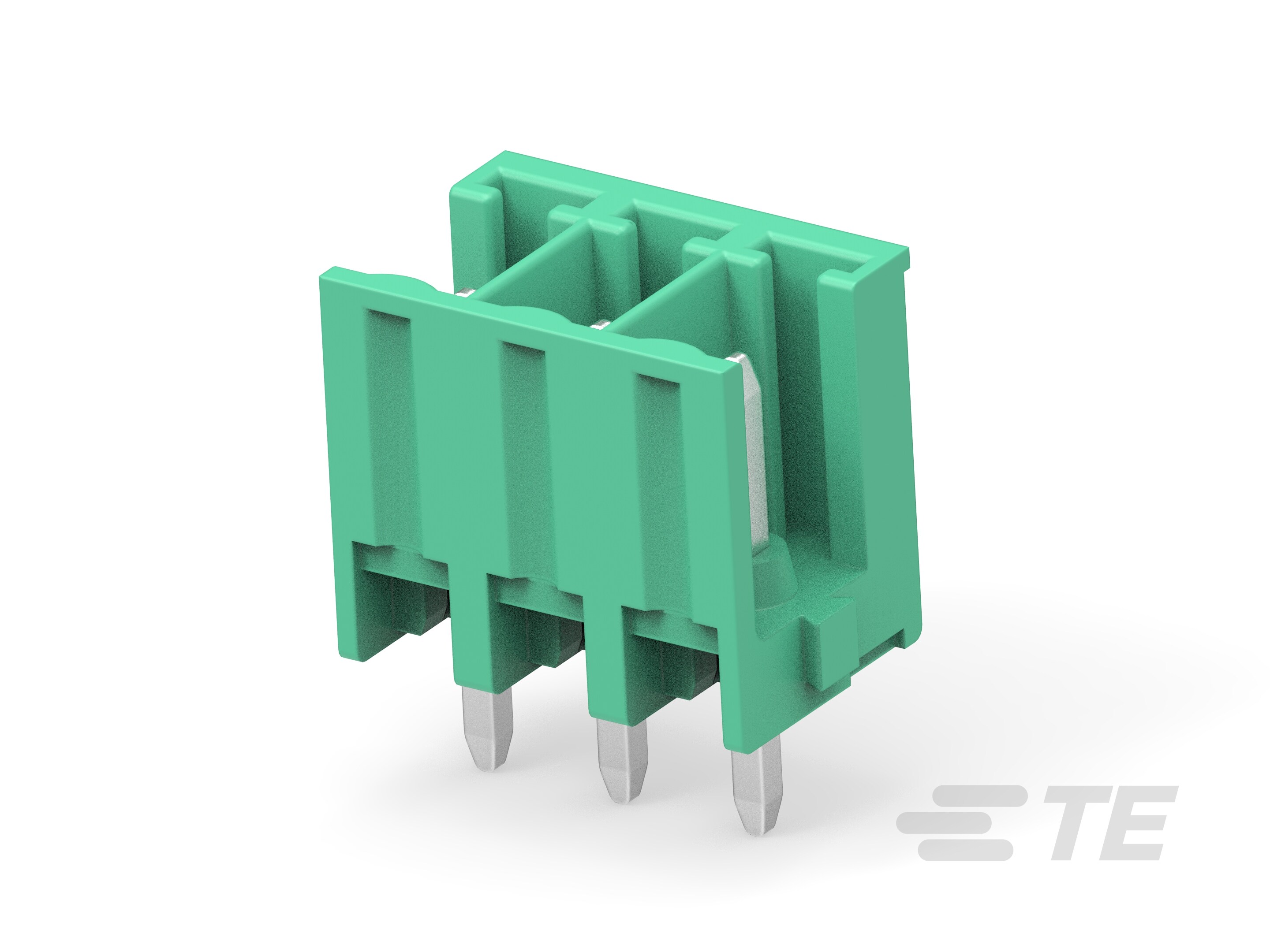

TE Connectivity AMP Connectors 284518-3	0.15 in	Interlocking (Side)	-40 °C	110 °C	Tin	3	11 A	Vertical	Through Hole	1	300 V	Green	Solder	Header Male Pins Shrouded (2 Side)	3	Phosphor Bronze	UL94 V-0	0.362 in	Nylon 6/6 PA66 Polyamide	0.134 in
