2823354 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

6P,2MM,SHRD HDR,DRRT,2.8,0.1AU,T

Part	Insulation Color	Voltage Rating	Voltage Rating (Type)	Shrouding	Number of Positions Loaded	Contact Finish - Mating	Style	Mounting Type	Contact Finish - Post	Insulation Material	Number of Rows	Number of Positions	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Pitch - Mating	Contact Finish Thickness - Mating	Insulation Height	Current Rating	Termination	Contact Length - Post	Connector Type	Contact Shape	Contact Length - Mating	Contact Type	Fastening Type	Row Spacing - Mating	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 2823354-6	Black	125 V	DC	Shrouded - 2 Wall	All	Gold	Board	Right Angle Through Hole	Tin	Thermoplastic	2	6	UL94 V-0	125 °C	-40 °C	Phosphor Bronze	0.079 in	3.94 µin	0.244 in	2 A	Solder	0.11 in	Header	Square	0.157 in	Male Pin	Detent Lock	0.079 in	157.5 Ąin
TE Connectivity AMP Connectors 3-2823354-0	Black	125 V	DC	Shrouded - 2 Wall	All	Gold	Board	Right Angle Through Hole	Tin	Thermoplastic	2	30	UL94 V-0	125 °C	-40 °C	Phosphor Bronze	0.079 in	3.94 µin	0.244 in	2 A	Solder	0.11 in	Header	Square	0.157 in	Male Pin	Detent Lock	0.079 in	157.5 Ąin
TE Connectivity AMP Connectors 4-2823354-0	Black	125 V	DC	Shrouded - 2 Wall	All	Gold	Board	Right Angle Through Hole	Tin	Thermoplastic	2	40	UL94 V-0	125 °C	-40 °C	Phosphor Bronze	0.079 in	3.94 µin	0.244 in	2 A	Solder	0.11 in	Header	Square	0.157 in	Male Pin	Detent Lock	0.079 in	157.5 Ąin
TE Connectivity AMP Connectors 1-2823354-6	Black	125 V	DC	Shrouded - 2 Wall	All	Gold	Board	Right Angle Through Hole	Tin	Thermoplastic	2	16	UL94 V-0	125 °C	-40 °C	Phosphor Bronze	0.079 in	3.94 µin	0.244 in	2 A	Solder	0.11 in	Header	Square	0.157 in	Male Pin	Detent Lock	0.079 in	157.5 Ąin
TE Connectivity AMP Connectors 1-2823354-4	Black	125 V	DC	Shrouded - 2 Wall	All	Gold	Board	Right Angle Through Hole	Tin	Thermoplastic	2	14	UL94 V-0	125 °C	-40 °C	Phosphor Bronze	0.079 in	3.94 µin	0.244 in	2 A	Solder	0.11 in	Header	Square	0.157 in	Male Pin	Detent Lock	0.079 in	157.5 Ąin
TE Connectivity AMP Connectors 2-2823354-0	Black	125 V	DC	Shrouded - 2 Wall	All	Gold	Board	Right Angle Through Hole	Tin	Thermoplastic	2	20	UL94 V-0	125 °C	-40 °C	Phosphor Bronze	0.079 in	3.94 µin	0.244 in	2 A	Solder	0.11 in	Header	Square	0.157 in	Male Pin	Detent Lock	0.079 in	157.5 Ąin
TE Connectivity AMP Connectors 1-2823354-0	Black	125 V	DC	Shrouded - 2 Wall	All	Gold	Board	Right Angle Through Hole	Tin	Thermoplastic	2	10	UL94 V-0	125 °C	-40 °C	Phosphor Bronze	0.079 in	3.94 µin	0.244 in	2 A	Solder	0.11 in	Header	Square	0.157 in	Male Pin	Detent Lock	0.079 in	157.5 Ąin
TE Connectivity AMP Connectors 2-2823354-4	Black	125 V	DC	Shrouded - 2 Wall	All	Gold	Board	Right Angle Through Hole	Tin	Thermoplastic	2	24 pos	UL94 V-0	125 °C	-40 °C	Phosphor Bronze	0.079 in	3.94 µin	0.244 in	2 A	Solder	0.11 in	Header	Square	0.157 in	Male Pin	Detent Lock	0.079 in	157.5 Ąin

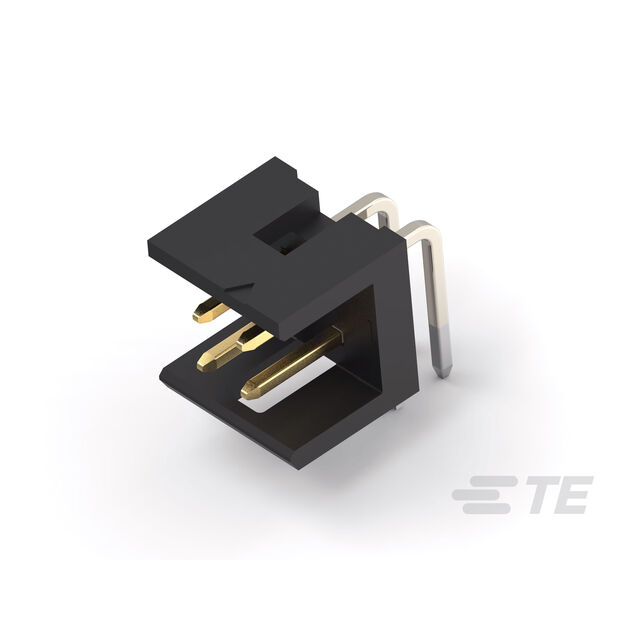

TE Connectivity AMP Connectors 2823354-4	Black	125 V	DC	Shrouded - 2 Wall	All	Gold	Board	Right Angle Through Hole	Tin	Thermoplastic	2	4	UL94 V-0	125 °C	-40 °C	Phosphor Bronze	0.079 in	3.94 µin	0.244 in	2 A	Solder	0.11 in	Header	Square	0.157 in	Male Pin	Detent Lock	0.079 in	157.5 Ąin
TE Connectivity AMP Connectors 5-2823354-0	Black	125 V	DC	Shrouded - 2 Wall	All	Gold	Board	Right Angle Through Hole	Tin	Thermoplastic	2	50	UL94 V-0	125 °C	-40 °C	Phosphor Bronze	0.079 in	3.94 µin	0.244 in	2 A	Solder	0.11 in	Header	Square	0.157 in	Male Pin	Detent Lock	0.079 in	157.5 Ąin
