644752 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN WIRE TO BOARD HDR 18 POS 3.96MM SOLDER ST THRU-HOLE PACKAGE

Part	Contact Type	Number of Positions	Termination	Number of Positions Loaded	Mounting Type	Contact Length - Mating	Contact Length - Post	Style	Current Rating	Fastening Type	Insulation Height	Voltage Rating	Contact Shape	Connector Type	Shrouding	Insulation Color	Insulation Material	Number of Rows	Material Flammability Rating	Overall Contact Length	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish - Mating	Contact Material	Contact Finish - Post	Pitch - Mating	Applications

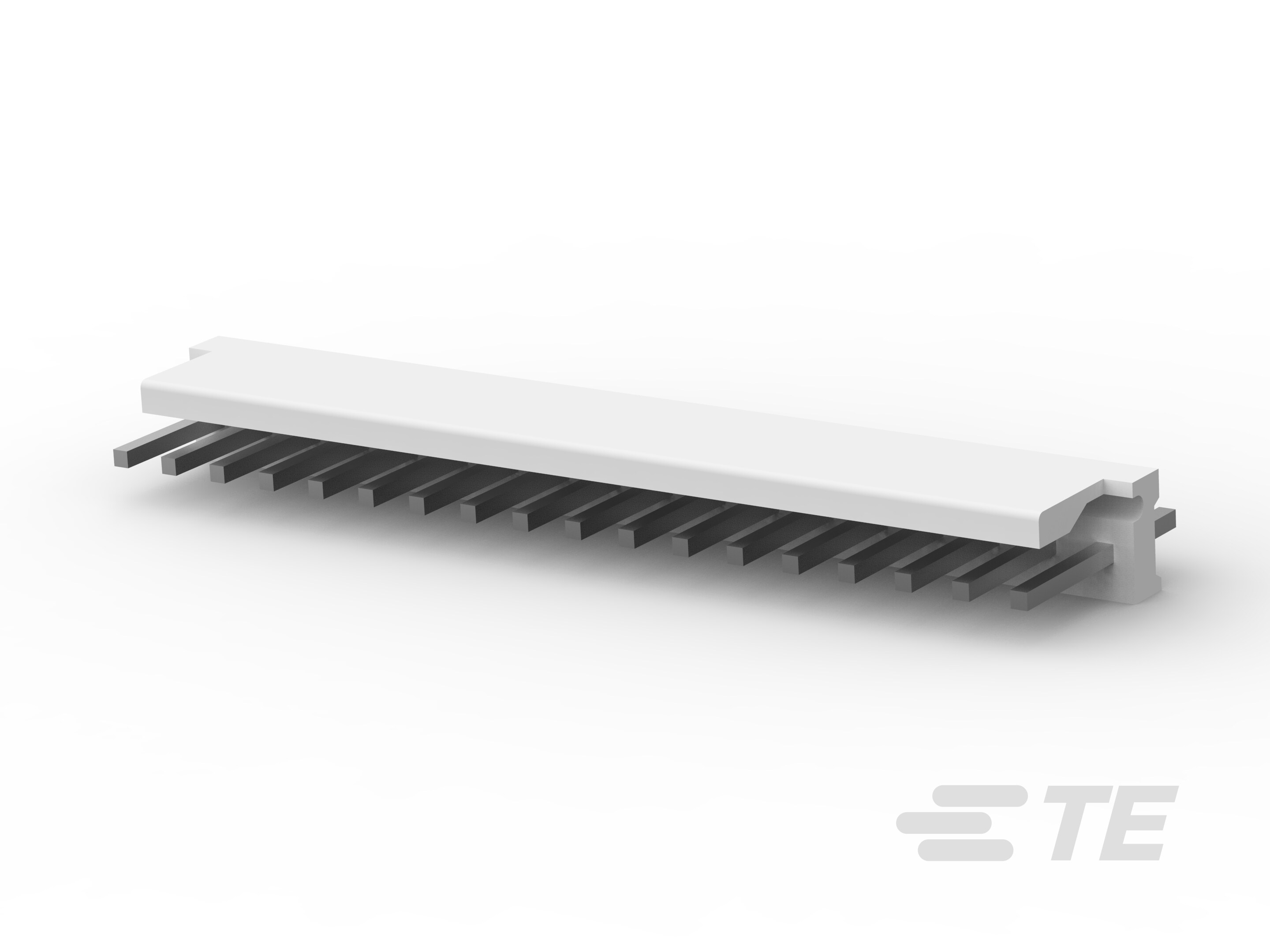

TE Connectivity AMP Connectors 1-644752-8	Male Pin	18	Solder	All	Through Hole	0.4 in	0.175 in	Board Cable/Wire	Varies by Wire Gauge	Friction Lock	0.425 in	600 V	Square	Header	Shrouded - 1 Wall	Natural	Glass Filled Thermoplastic	1	UL94 V-0	0.7 in	-55 °C	105 °C	Tin	Copper Alloy	Tin	0.156 in	General Purpose Industrial
TE Connectivity AMP Connectors 2-644752-1	Male Pin	21	Solder	All	Through Hole	0.4 in	0.175 in	Board Cable/Wire	Varies by Wire Gauge	Friction Lock	0.425 in	600 V	Square	Header	Shrouded - 1 Wall	Natural	Glass Filled Thermoplastic	1	UL94 V-0	0.7 in	-55 °C	105 °C	Tin	Copper Alloy	Tin	0.156 in	General Purpose Industrial

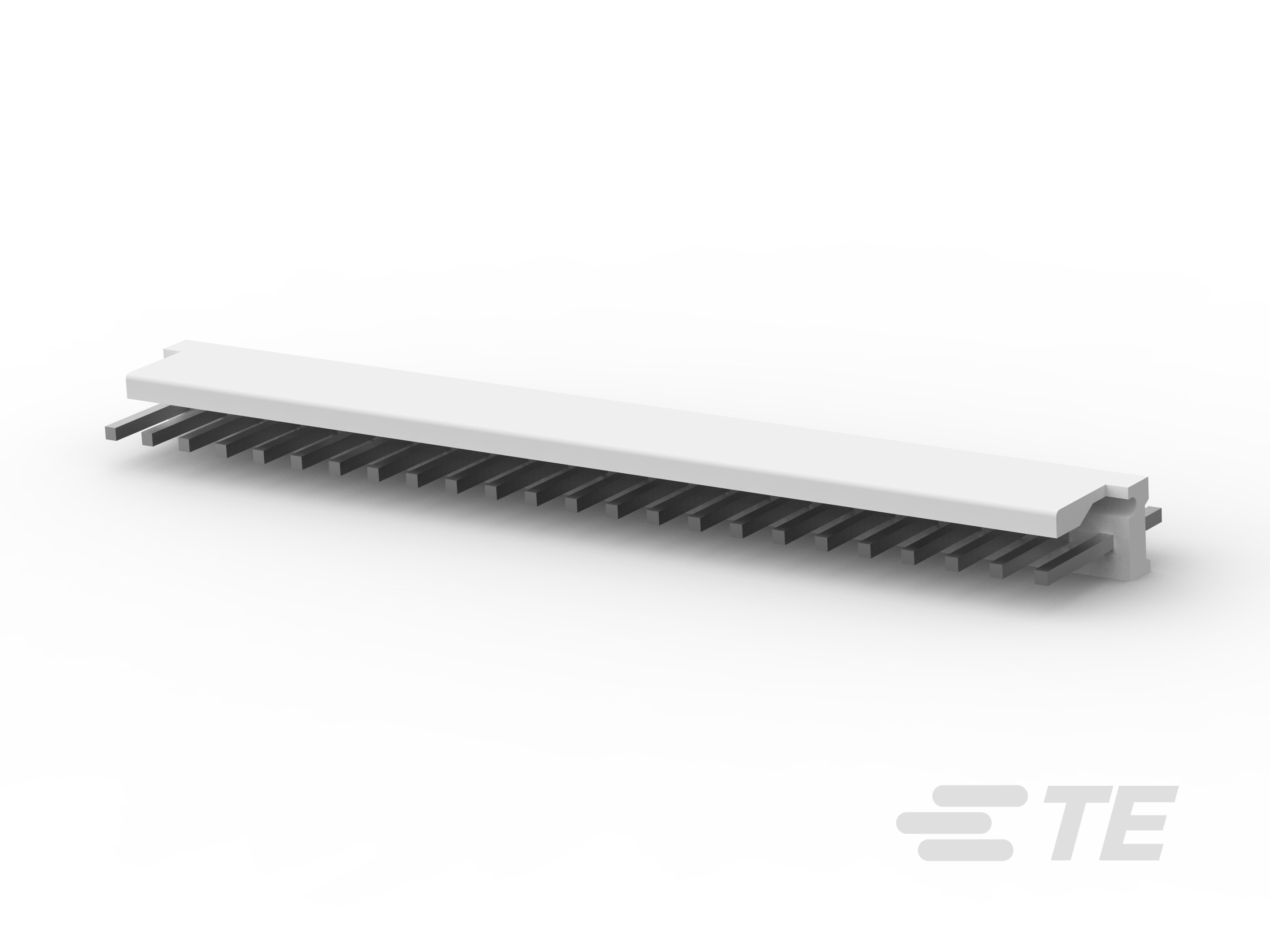

TE Connectivity AMP Connectors 2-644752-4	Male Pin	24 pos	Solder	All	Through Hole	0.4 in	0.175 in	Board Cable/Wire	Varies by Wire Gauge	Friction Lock	0.425 in	600 V	Square	Header	Shrouded - 1 Wall	Natural	Glass Filled Thermoplastic	1	UL94 V-0	0.7 in	-55 °C	105 °C	Tin	Copper Alloy	Tin	0.156 in	General Purpose Industrial

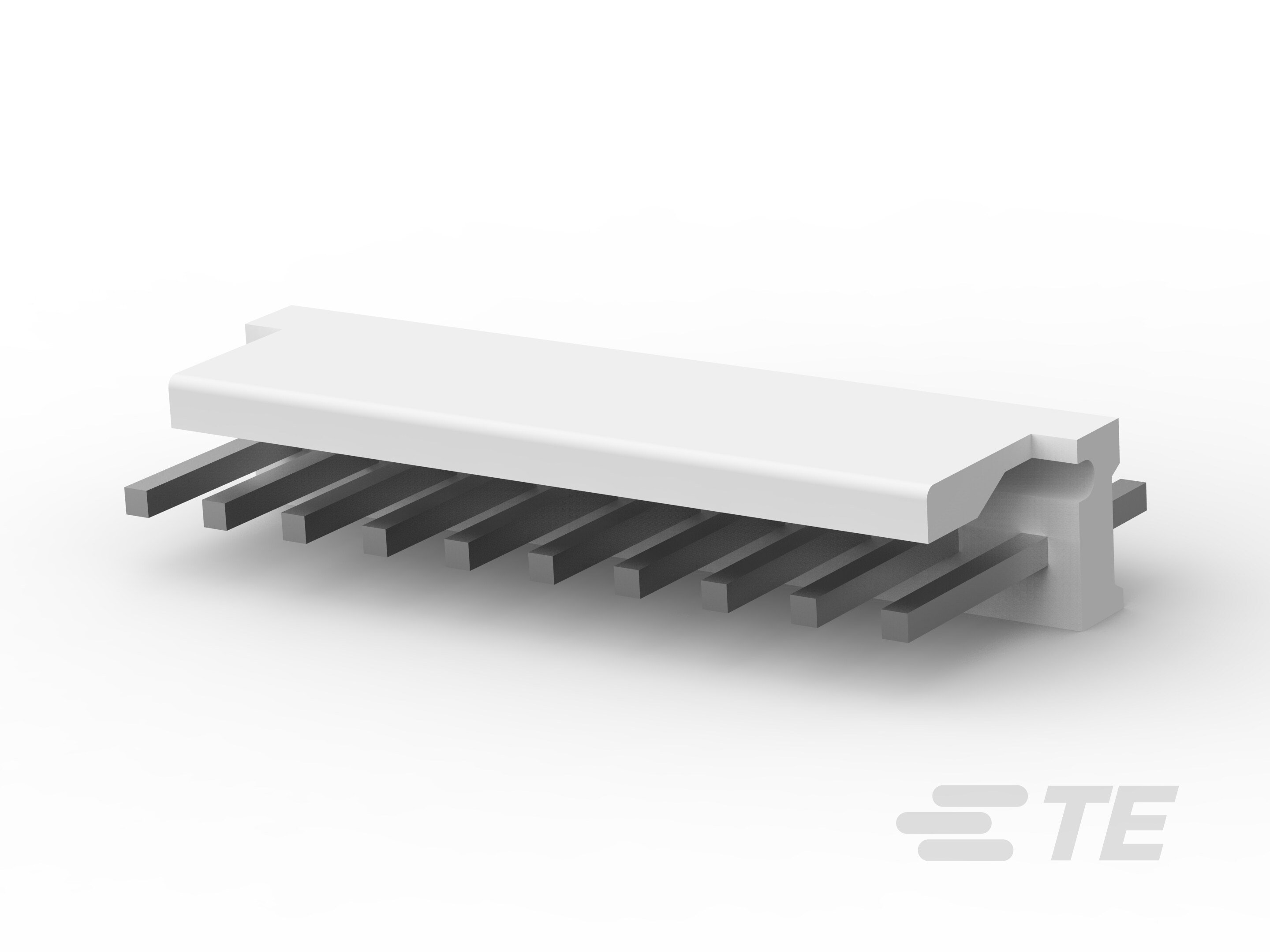

TE Connectivity AMP Connectors 1-644752-0	Male Pin	10	Solder	All	Through Hole	0.4 in	0.175 in	Board Cable/Wire	Varies by Wire Gauge	Friction Lock	0.425 in	600 V	Square	Header	Shrouded - 1 Wall	Natural	Glass Filled Thermoplastic	1	UL94 V-0	0.7 in	-55 °C	105 °C	Tin	Copper Alloy	Tin	0.156 in	General Purpose Industrial

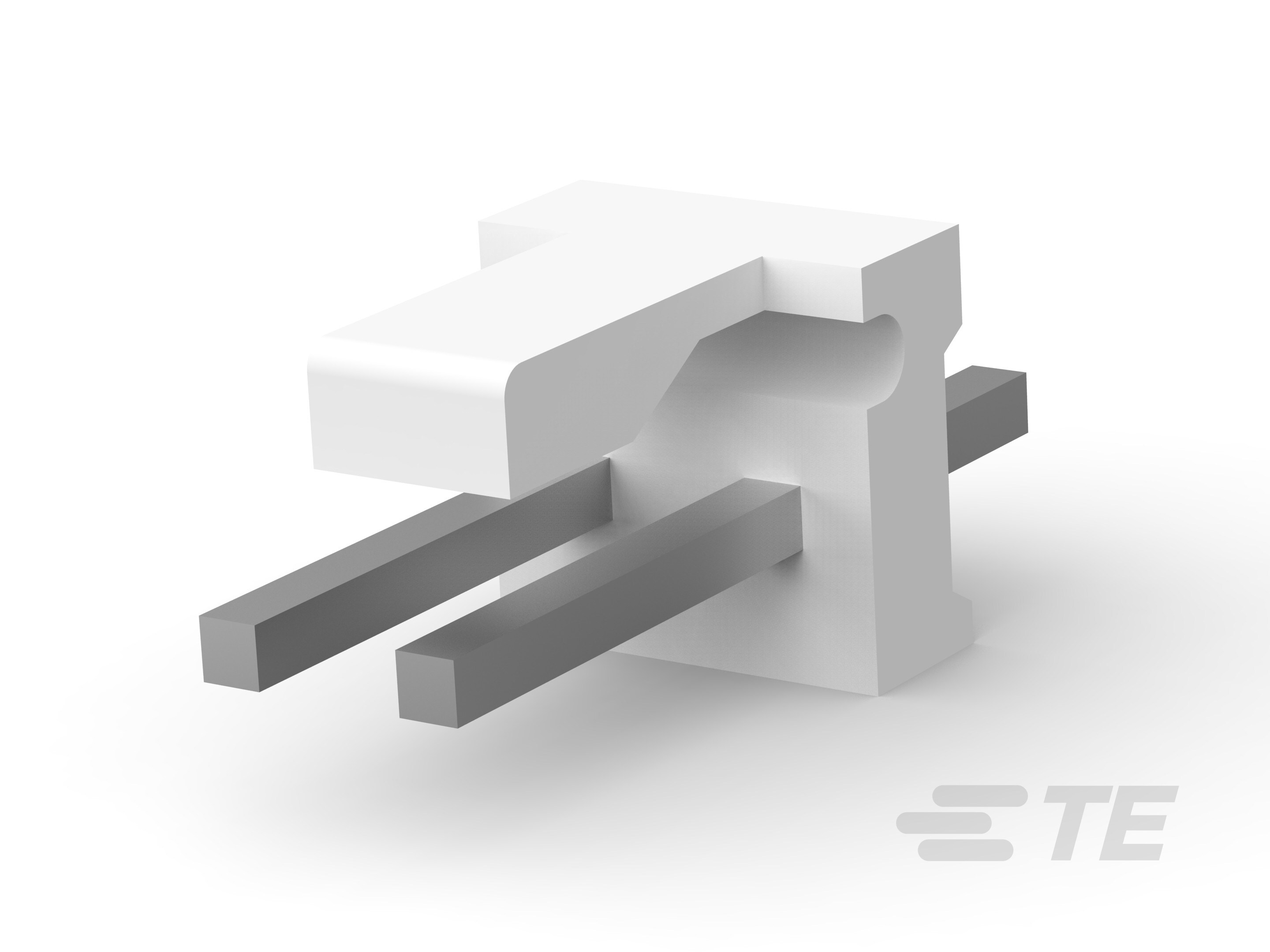

TE Connectivity AMP Connectors 644752-2	Male Pin	2	Solder	All	Through Hole	0.4 in	0.175 in	Board Cable/Wire	Varies by Wire Gauge	Friction Lock	0.425 in	600 V	Square	Header	Shrouded - 1 Wall	Natural	Glass Filled Thermoplastic	1	UL94 V-0	0.7 in	-55 °C	105 °C	Tin	Copper Alloy	Tin	0.156 in	General Purpose Industrial
TE Connectivity AMP Connectors 644752-3	Male Pin	3	Solder	All	Through Hole	0.4 in	0.175 in	Board Cable/Wire	Varies by Wire Gauge	Friction Lock	0.425 in	600 V	Square	Header	Shrouded - 1 Wall	Natural	Glass Filled Thermoplastic	1	UL94 V-0	0.7 in	-55 °C	105 °C	Tin	Copper Alloy	Tin	0.156 in	General Purpose Industrial
TE Connectivity AMP Connectors 644752-5	Male Pin	5	Solder	All	Through Hole	0.4 in	0.175 in	Board Cable/Wire	Varies by Wire Gauge	Friction Lock	0.425 in	600 V	Square	Header	Shrouded - 1 Wall	Natural	Glass Filled Thermoplastic	1	UL94 V-0	0.7 in	-55 °C	105 °C	Tin	Copper Alloy	Tin	0.156 in	General Purpose Industrial

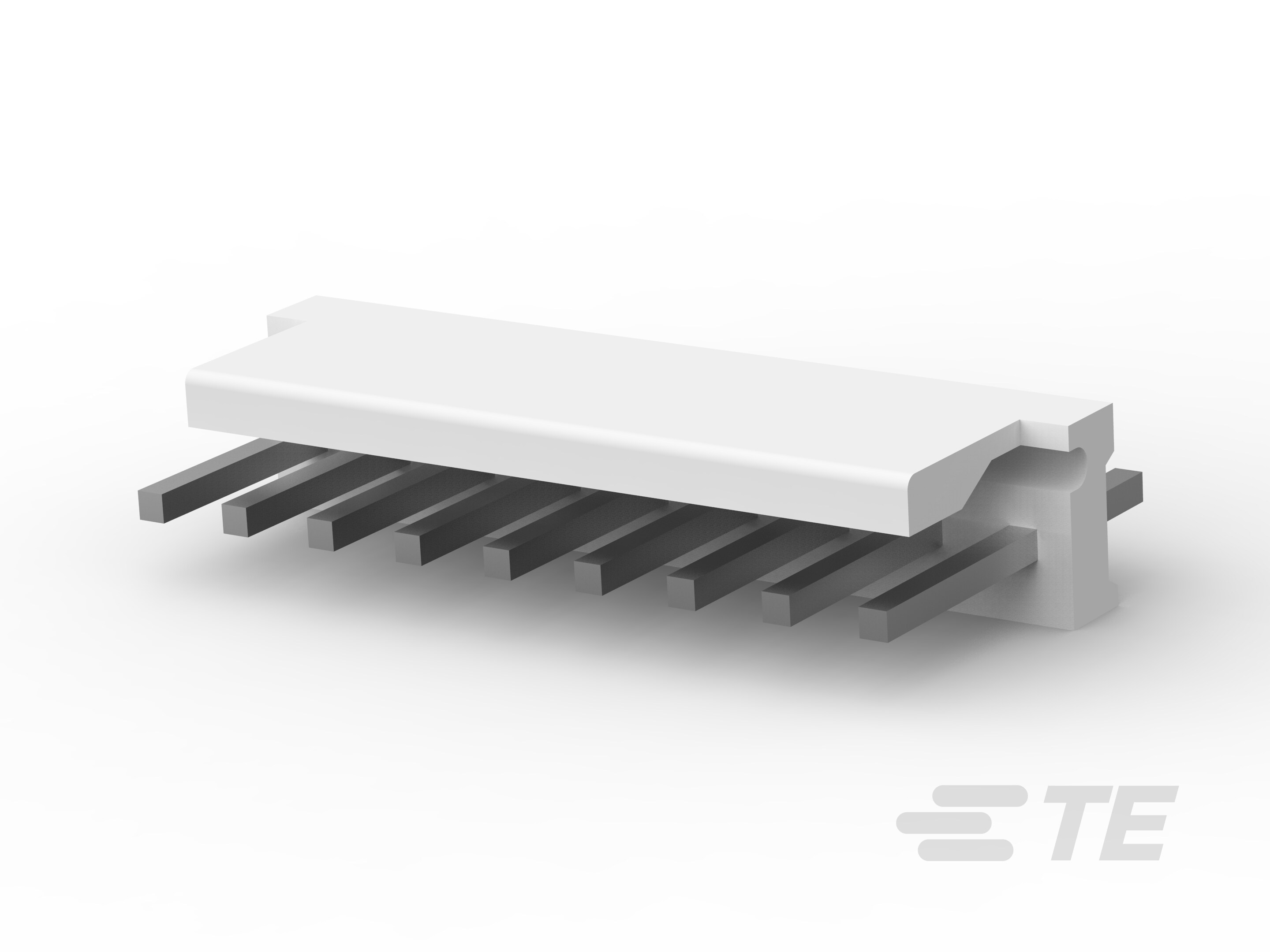

TE Connectivity AMP Connectors 644752-9	Male Pin	9	Solder	All	Through Hole	0.4 in	0.175 in	Board Cable/Wire	Varies by Wire Gauge	Friction Lock	0.425 in	600 V	Square	Header	Shrouded - 1 Wall	Natural	Glass Filled Thermoplastic	1	UL94 V-0	0.7 in	-55 °C	105 °C	Tin	Copper Alloy	Tin	0.156 in	General Purpose Industrial

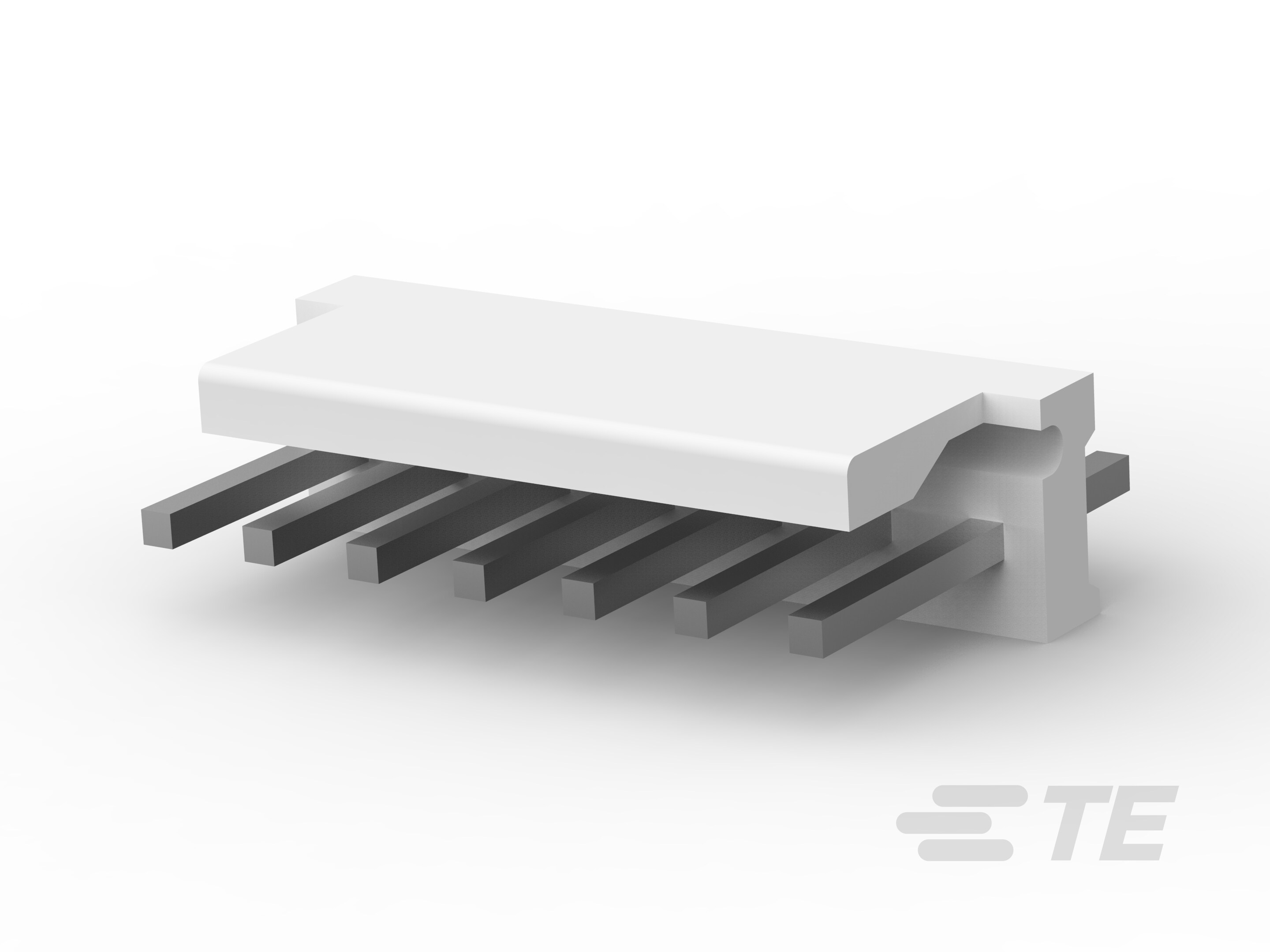

TE Connectivity AMP Connectors 644752-7	Male Pin	7	Solder	All	Through Hole	0.4 in	0.175 in	Board Cable/Wire	Varies by Wire Gauge	Friction Lock	0.425 in	600 V	Square	Header	Shrouded - 1 Wall	Natural	Glass Filled Thermoplastic	1	UL94 V-0	0.7 in	-55 °C	105 °C	Tin	Copper Alloy	Tin	0.156 in	General Purpose Industrial
TE Connectivity AMP Connectors 1-644752-2	Male Pin	12	Solder	All	Through Hole	0.4 in	0.175 in	Board Cable/Wire	Varies by Wire Gauge	Friction Lock	0.425 in	600 V	Square	Header	Shrouded - 1 Wall	Natural	Glass Filled Thermoplastic	1	UL94 V-0	0.7 in	-55 °C	105 °C	Tin	Copper Alloy	Tin	0.156 in	General Purpose Industrial
