MER1 Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 1 OUTPUT, 12 V

Part	Mounting Type	Voltage - Isolation	Voltage - Input (Min)	Number of Outputs	Applications	Package Leads	Package Name	Voltage - Input (Max)	Type	Power (Watts)	Current - Output (Max)	Efficiency	Operating Temperature (Min)	Operating Temperature (Max)	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Voltage - Output 1
Murata Electronics MER1S2412SC	Through Hole	1000 Vrms	22.6 V	1	ITE (Commercial)	4 Leads	7-SIP Module	26.4 V	Isolated Module	1 W	84 mA	87.5 %	-40 °C	85 °C	0.24 in	0.77 in	0.4 in	12 V
Murata Electronics MER1S1212SC	Through Hole	1000 Vrms	10.8 V	1	ITE (Commercial)	4 Leads	7-SIP Module	13.2 V	Isolated Module	1 W	84 mA	88.5 %	-40 °C	85 °C	0.24 in	0.77 in	0.4 in	12 V
Murata Electronics MER1S1515SC	Through Hole	1000 Vrms	13.5 V	1	ITE (Commercial)	4 Leads	7-SIP Module	16.5 V	Isolated Module	1 W	67 mA	89 %	-40 °C	85 °C	0.24 in	0.77 in	0.4 in	15 V

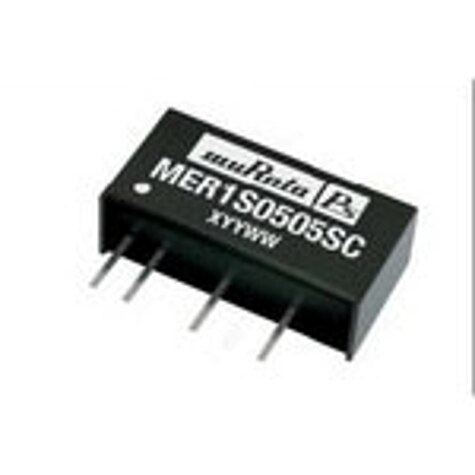

Murata Electronics MER1S1512SC	Through Hole	1000 Vrms	13.5 V	1	ITE (Commercial)	4 Leads	7-SIP Module	16.5 V	Isolated Module	1 W	84 mA	87.5 %	-40 °C	85 °C	0.24 in	0.77 in	0.4 in	12 V
