1971772 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
PTL 1X3 CAP PANEL MT STD TEMP KEY B PUR
| Part | Color | Number of Positions | Contact Termination | Features | Insulation Material | Connector Type | Mounting Type | Number of Rows | Operating Temperature (Min) | Operating Temperature (Max) | Contact Type | Pitch | Fastening Type | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Purple | 3 | Crimp | Glow Wire Compliant | Glass Filled Polybutylene Terephthalate (PBT) | Receptacle | Panel Mount Snap-In | 1 | -55 °C | 105 °C | Tab | 0.236 in | Latch Lock | Contacts Not Included |
 TE Connectivity AMP Connectors | Blue | 4 | Crimp | Glow Wire Compliant | Glass Filled Polybutylene Terephthalate (PBT) | Receptacle | Panel Mount Snap-In | 1 | -55 °C | 105 °C | Tab | 0.236 in | Latch Lock | Contacts Not Included |
 TE Connectivity AMP Connectors | Gray | 4 | Crimp | Glow Wire Compliant | Nylon Polyamide (PA) | Receptacle | Panel Mount Snap-In | 1 | -55 °C | 150 °C | Tab | 0.236 in | Latch Lock | Contacts Not Included |
 TE Connectivity AMP Connectors | ||||||||||||||
 TE Connectivity AMP Connectors | Natural | 5 | Crimp | Glow Wire Compliant | Glass Filled Polybutylene Terephthalate (PBT) | Receptacle | Panel Mount Snap-In | 1 | -55 °C | 105 °C | Tab | 0.236 in | Latch Lock | Contacts Not Included |

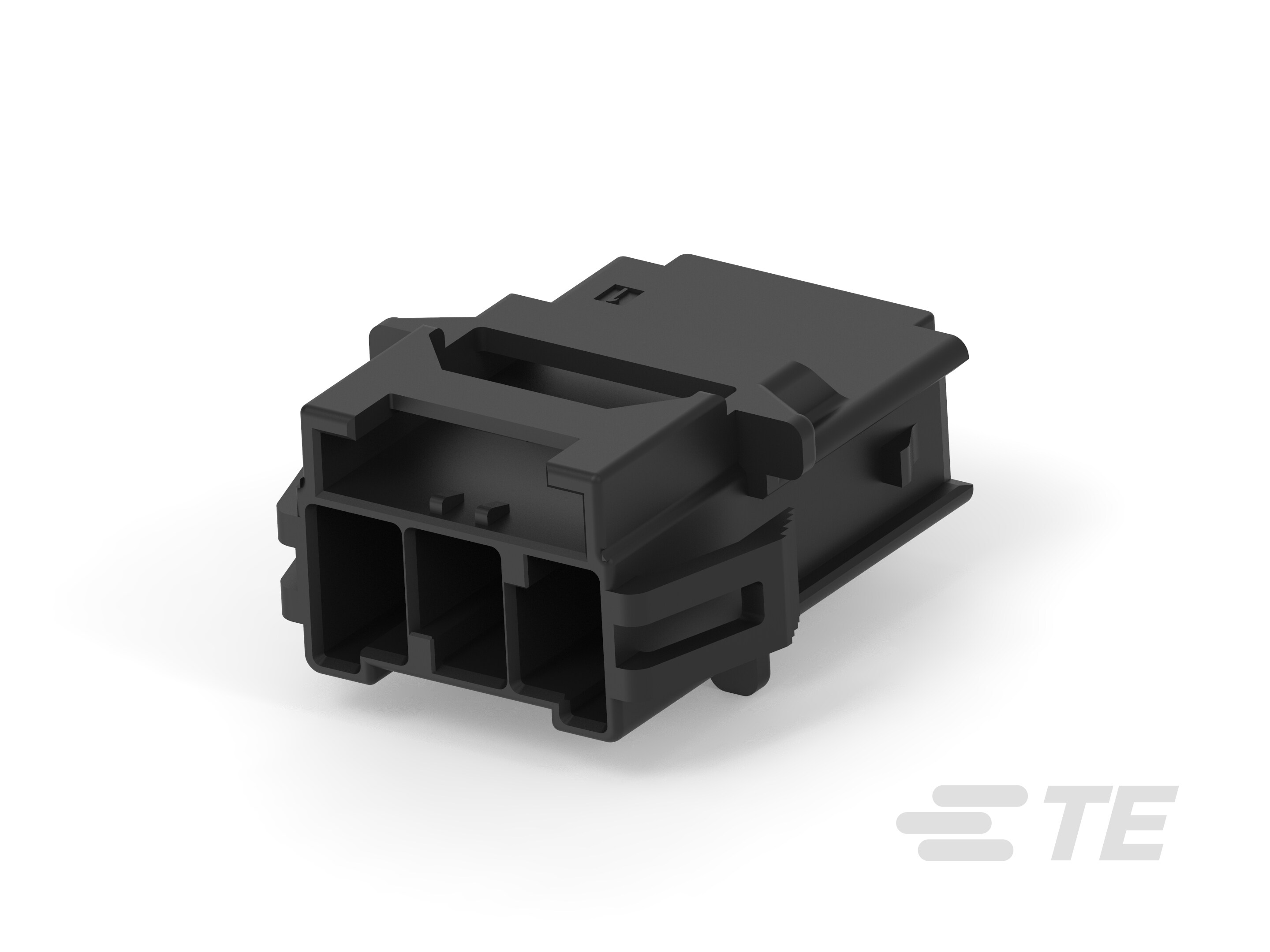

 TE Connectivity AMP Connectors | Black | 3 | Crimp | Glow Wire Compliant | Nylon Polyamide (PA) | Receptacle | Panel Mount Snap-In | 1 | -55 °C | 150 °C | Tab | 0.236 in | Latch Lock | Contacts Not Included |

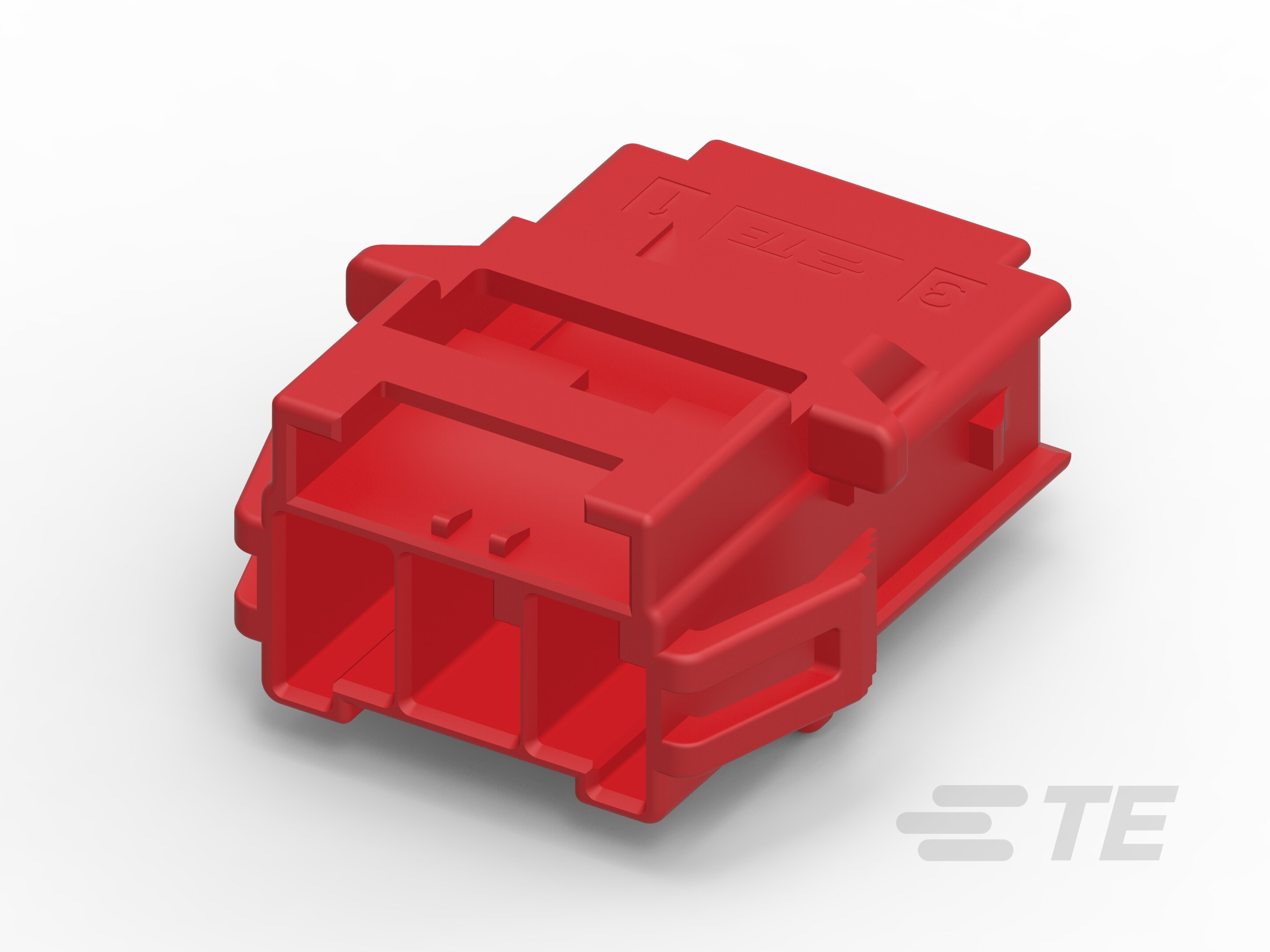

 TE Connectivity AMP Connectors | Red | 3 | Crimp | Glow Wire Compliant | Nylon Polyamide (PA) | Receptacle | Panel Mount Snap-In | 1 | -55 °C | 150 °C | Tab | 0.236 in | Latch Lock | Contacts Not Included |
 TE Connectivity AMP Connectors | Black | 4 | Crimp | Glow Wire Compliant | Nylon Polyamide (PA) | Receptacle | Panel Mount Snap-In | 1 | -55 °C | 150 °C | Tab | 0.236 in | Latch Lock | Contacts Not Included |

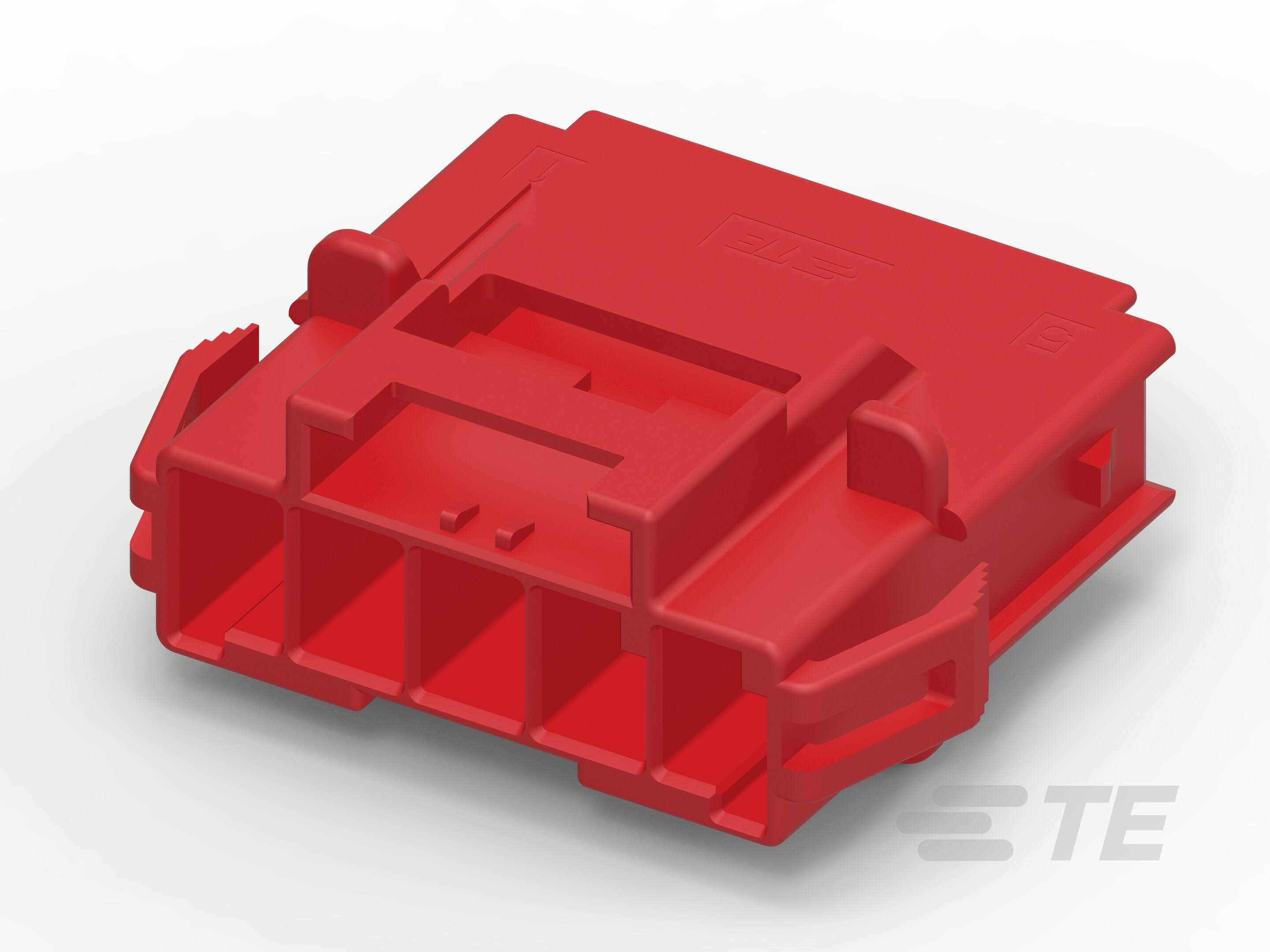

 TE Connectivity AMP Connectors | Red | 5 | Crimp | Glow Wire Compliant | Nylon Polyamide (PA) | Receptacle | Panel Mount Snap-In | 1 | -55 °C | 150 °C | Tab | 0.236 in | Latch Lock | Contacts Not Included |
 TE Connectivity AMP Connectors | Black | 5 | Crimp | Glow Wire Compliant | Nylon Polyamide (PA) | Receptacle | Panel Mount Snap-In | 1 | -55 °C | 150 °C | Tab | 0.236 in | Latch Lock | Contacts Not Included |
