Optical Encoder
Optical Encoder
| Part | Output Type | Pulses per Revolution | Encoder Type | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Mounting Type | Detent | Orientation | Rotational Life (Cycles Min) | Termination Style | Built in Switch | Actuator Type | Actuator Diameter | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

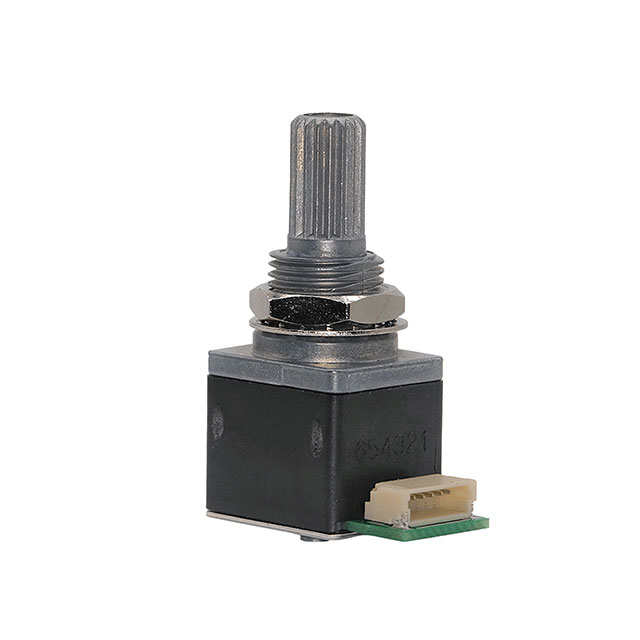

 LITTELFUSE | 2-Bit Quadrature | 24 | Optical | 5.25 V | 4.75 V | Panel Mount | Yes | User Selectable | 300 K | Connector | Yes | Knurled End | 5.92 mm | |
 LITTELFUSE | 2-Bit Quadrature | 16 | Optical | Panel Mount | Yes | User Selectable | 300 K | Connector | Yes | Knurled End | 5.92 mm | 5 VDC |
