Headers & Wire Housings 1.25MM HDR 02X06P BLK

Part	Voltage Rating	Voltage Rating (Type)	Contact Type	Current Rating	Current Rating	Style	Number of Rows	Contact Finish - Mating	Connector Type	Fastening Type	Contact Finish - Post	Contact Material	Number of Positions	Insulation Material	Insulation Height	Insulation Color	Termination	Number of Positions Loaded	Contact Shape	Features	Shrouding	Material Flammability Rating	Mounting Type	Pitch - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish Thickness - Mating
Molex 2077600481	50 V	DC	Male Pin	0 A	Varies by Wire Gauge	Board Cable/Wire	2	Tin-Bismuth	Header	Latch Holder	Tin-Bismuth	Brass	4	Nylon Polyamide (PA)	0.285 in	Black	Solder	All	Rectangular	Pick and Place Solder Retention	Shrouded - 4 Wall	UL94 V-0	Surface Mount	0.049 in	-40 °C	105 °C

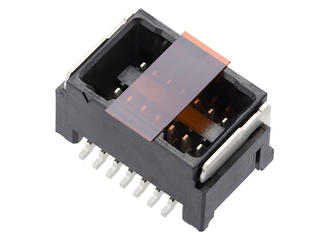

Molex 2077600881	50 V	DC	Male Pin	0 A	Varies by Wire Gauge	Board Cable/Wire	2	Tin-Bismuth	Header	Latch Holder	Tin-Bismuth	Brass	8	Nylon Polyamide (PA)	0.285 in	Black	Solder	All	Rectangular	Pick and Place Solder Retention	Shrouded - 4 Wall	UL94 V-0	Surface Mount	0.049 in	-40 °C	105 °C
Molex 2077601481	50 V	DC	Male Pin	0 A	Varies by Wire Gauge	Board Cable/Wire	2	Tin-Bismuth	Header	Latch Holder	Tin-Bismuth	Brass	14	Nylon Polyamide (PA)	0.285 in	Black	Solder	All	Rectangular	Pick and Place Solder Retention	Shrouded - 4 Wall	UL94 V-0	Surface Mount	0.049 in	-40 °C	105 °C
Molex 2077601471	50 V	DC	Male Pin	0 A	Varies by Wire Gauge	Board Cable/Wire	2	Tin-Bismuth	Header	Latch Holder	Tin-Bismuth	Brass	14	Nylon Polyamide (PA)	0.285 in	Black	Solder	All	Rectangular	Solder Retention	Shrouded - 4 Wall	UL94 V-0	Surface Mount	0.049 in	-40 °C	105 °C	39.4 µin
Molex 2077600671	50 V	DC	Male Pin	0 A	Varies by Wire Gauge	Board Cable/Wire	2	Tin-Bismuth	Header	Latch Holder	Tin-Bismuth	Brass	6	Nylon Polyamide (PA)	0.285 in	Black	Solder	All	Rectangular	Solder Retention	Shrouded - 4 Wall	UL94 V-0	Surface Mount	0.049 in	-40 °C	105 °C	39.4 µin
Molex 2077600681	50 V	DC	Male Pin	0 A	Varies by Wire Gauge	Board Cable/Wire	2	Tin-Bismuth	Header	Latch Holder	Tin-Bismuth	Brass	6	Nylon Polyamide (PA)	0.285 in	Black	Solder	All	Rectangular	Pick and Place Solder Retention	Shrouded - 4 Wall	UL94 V-0	Surface Mount	0.049 in	-40 °C	105 °C
Molex 2077601081	50 V	DC	Male Pin	0 A	Varies by Wire Gauge	Board Cable/Wire	2	Tin-Bismuth	Header	Latch Holder	Tin-Bismuth	Brass	10	Nylon Polyamide (PA)	0.285 in	Black	Solder	All	Rectangular	Pick and Place Solder Retention	Shrouded - 4 Wall	UL94 V-0	Surface Mount	0.049 in	-40 °C	105 °C
Molex 2077600471	50 V	DC	Male Pin	0 A	Varies by Wire Gauge	Board Cable/Wire	2	Tin-Bismuth	Header	Latch Holder	Tin-Bismuth	Brass	4	Nylon Polyamide (PA)	0.285 in	Black	Solder	All	Rectangular	Solder Retention	Shrouded - 4 Wall	UL94 V-0	Surface Mount	0.049 in	-40 °C	105 °C	39.4 µin

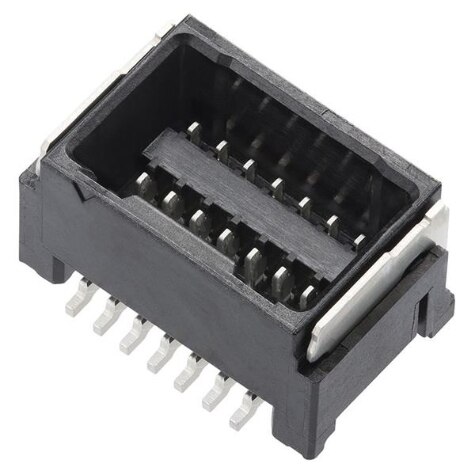

Molex 2077600871	50 V	DC	Male Pin	2 A		Board Cable/Wire	2	Tin-Bismuth	Header	Latch Holder	Tin-Bismuth	Brass	8	Nylon Polyamide (PA)	0.285 in	Black	Solder	All	Rectangular	Glow Wire Compliant Solder Retention	Shrouded - 4 Wall	UL94 V-0	Surface Mount	0.049 in	-40 °C	105 °C	39.4 µin
Molex 2077601281	50 V	DC	Male Pin	0 A	Varies by Wire Gauge	Board Cable/Wire	2	Tin-Bismuth	Header	Latch Holder	Tin-Bismuth	Brass	12	Nylon Polyamide (PA)	0.285 in	Black	Solder	All	Rectangular	Pick and Place Solder Retention	Shrouded - 4 Wall	UL94 V-0	Surface Mount	0.049 in	-40 °C	105 °C
