32054 Series

Catalog

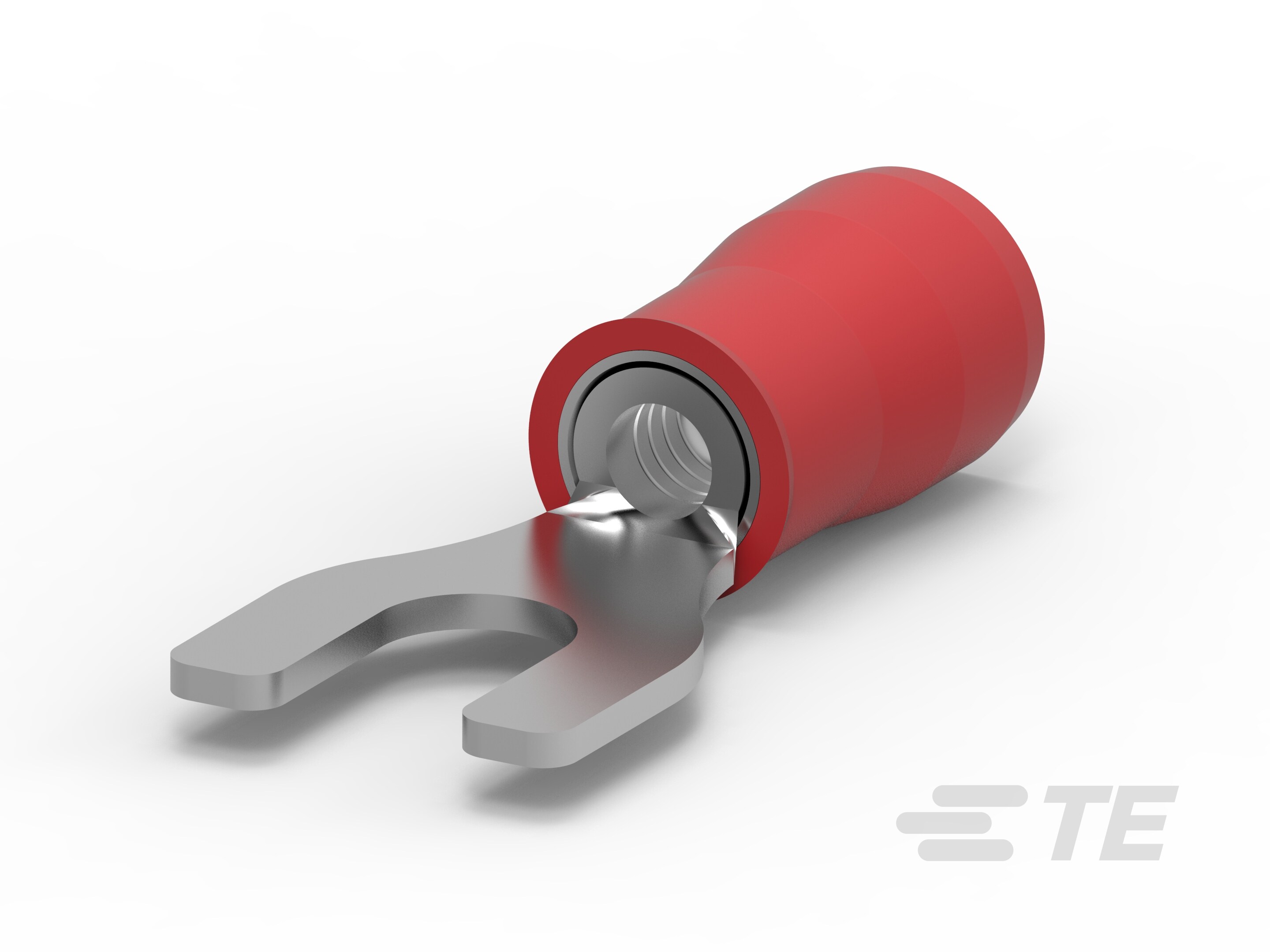

FORK / SPADE TONGUE TERMINAL, PIDG SERIES, 22AWG TO 16AWG, 1.65 MM², #10, NYLON (POLYAMIDE)

Part	Length - Overall	Features	Width - Outer Edges	Stud/Tab Size	Mounting Type	Termination	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Color	Terminal Type	Contact Material	Insulation	Contact Finish	Insulation Diameter (Min)	Insulation Diameter (Max)	Length - Ring Center to Termination	Tongue Inside Opening	Length - Termination	Material - Insulation
TE Connectivity AMP Connectors 2-32054-1	0.908 in	Serrated Termination	0.375 in	10 Stud	Free Hanging (In-Line)	Crimp	16 AWG	22 AWG	Red	Standard	Copper	Insulated	Tin	0.105 in	0.14 in	0.312 in	0.197 in	0.404 in	Nylon PA Polyamide
TE Connectivity AMP Connectors 8-32054-1	0.908 in	Serrated Termination	0.375 in	10 Stud	Free Hanging (In-Line)	Crimp	16 AWG	22 AWG	Red	Standard	Copper	Insulated	Tin	0.105 in	0.14 in	0.312 in	0.197 in	0.404 in	Nylon PA Polyamide
